- 700 CLASSIC BUILT AFTER 1/1/01 - S02ND7CS
CHAINCASE - S02ND7CS (4970457045B14)

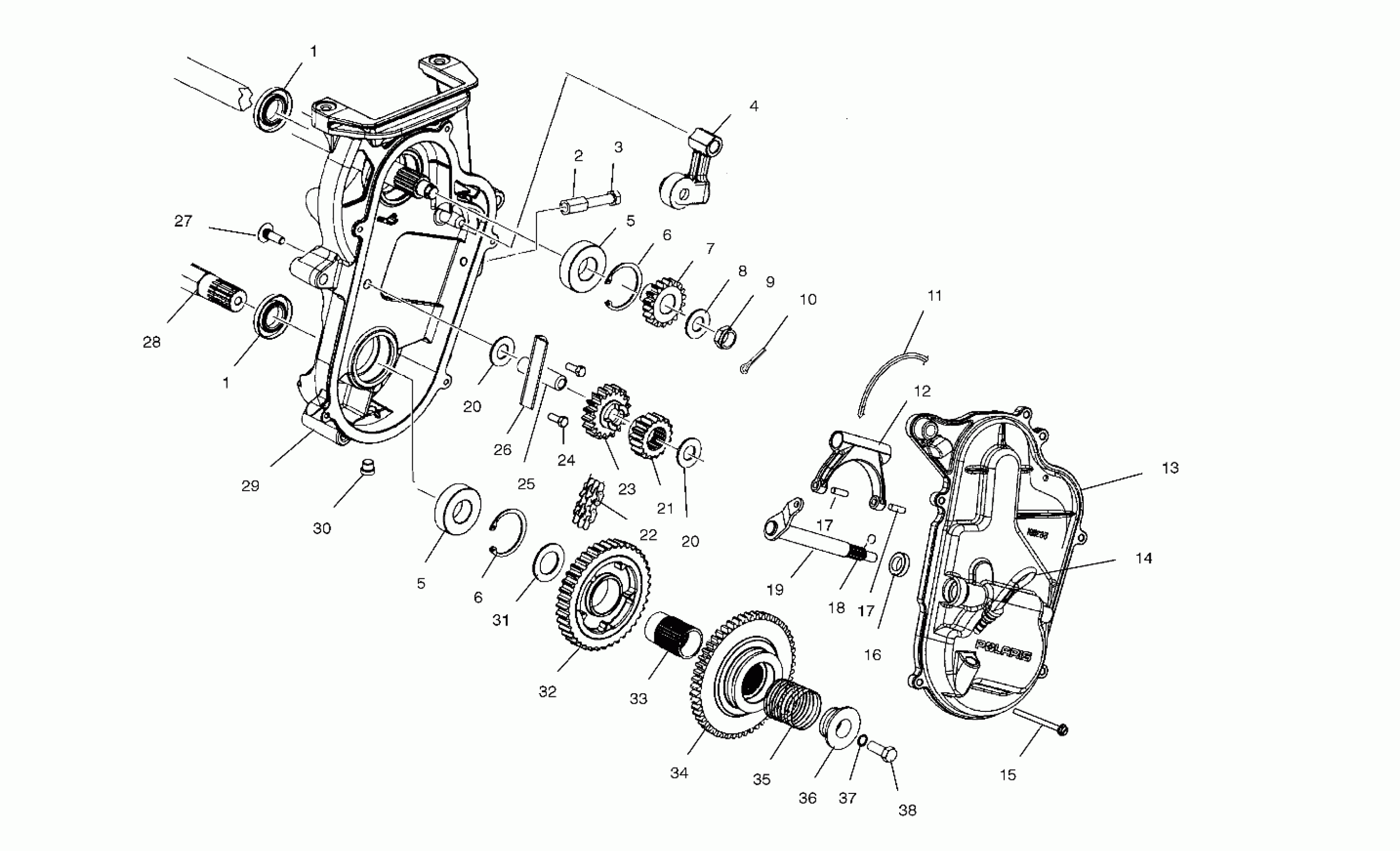

Polaris 700 CLASSIC BUILT AFTER 1/1/01 - S02ND7CS CHAINCASE - S02ND7CS (4970457045B14) Diagram
#
1
SEAL-OIL
3610030
$20.22
1
SEAL-OIL
3610030
$20.22
2
Nut
5132237
$9.59
3
Screw
7512470
Unavailable
4
Pin, Chain Tightener
7662210
Unavailable
4
Bearing, Chaincase Idler
3553002
$11.99
4
Wheel, Idler
5630123
Unavailable
4
WASHER, THRUST
7558702
$1.59
4
Asm., Tightener
1332213
$159.99
4
Block, Tightener w/Angle
5630958
$159.99
5
BEARING, BALL
3514309
$15.87
5
BEARING, BALL
3514309
$15.87
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
SPROCKET-23T,3/4W,15 SPL,HV,PM
3221099
$54.99
8
Washer, Spring
7571620
$7.19
9
Nut, FLEXLOC
7542811
Unavailable
10
PIN, COTTER
7661401
$1.49
11
Gasket, Chaincase
5411497
$20.22
12
Kit, Shift Fork/Shaft [Incl. 19,17]
2200363
Unavailable
12
Fork, Shift
5130805
Unavailable
13
Cover, Chaincase
5133117
Unavailable
14
Dipstick
1332250
$44.99
15
SCREW
7512242
$2.39
16
Seal, Oil
3610029
$8.89
17
Pin, Dowel
7661826
$5.65
17
Pin, Dowel
7661826
$5.65
18
Ring, Retaining
7710415
$3.99
19
Shaft, Shift
1341388-067
Unavailable
20
WASHER, THRUST
7555877
$3.99
20
WASHER, THRUST
7555877
$3.99
21
Gear, Pinion, Spur
1341075
$149.99
21
Bearing, Needle
3554508
$16.99
22
CHAIN, 74P, 3/4W
3221109
$164.99
23
Sprocket, Pinion
1341241
Unavailable
23
Bearing, Needle
3554508
$16.99
24
Screw
7512019
$3.99
25
Shaft, Pinion
5131770
Unavailable
26
Bracket, Chain Retention
5243162
Unavailable
27
Screw
7515477
$34.99
28
Asm., Jackshaft [See Drive Train Pg. C1, Ref. 18]
-------
Unavailable
29
Chaincase
5132773
Unavailable
30
PLUG
7052115
$5.65
31
Washer
7555871
$5.59
32
Sprocket, 39T, 3/4W
1341243
Unavailable
33
Coupler, Drive
5130720
Unavailable
34
Gear, Reverse
1341410
$559.99
35
Spring, Compression
7041887
$44.99
36
Retainer, Drive Coupler
5130727
Unavailable
37
WASHER, SPRING LOCK
7552901
$1.49
38
SCREW
7517581
$1.59
