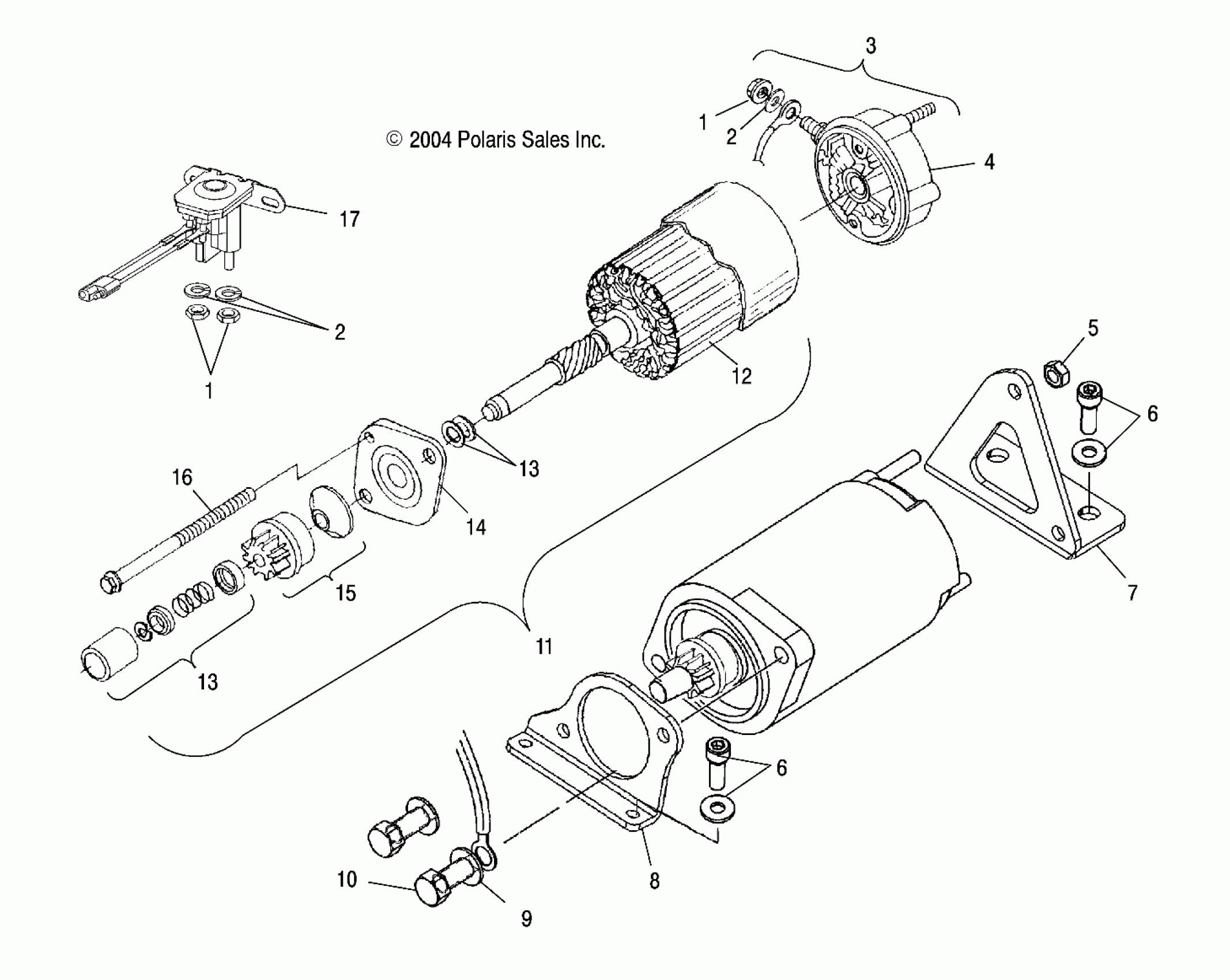

Polaris 700/800 XC SP M-10 F/O - S05NE7CS STARTING MOTOR - S05NE7CS/7CSA/NP7CS/7CSA/7CSB/NE8CS/8CSA/NP8CS/8CSA/8CSB (4993799379E13) Diagram

#

Description
Price

1

Nut, Hex

7542105

$3.99

1

Nut, Hex

7542105

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

2

WASHER, SPRING LOCK

7552801

$1.59

3

Asm., Kit, Commutator Cap [Incl. 4]

2200758

$82.39

4

Kit, Brush and Spring

2200759

$59.99

4

ASM., BRUSH AND SCREW

-------

Unavailable

4

ASM., BRUSH

-------

Unavailable

4

BUSHING, INSULATION

-------

Unavailable

4

WASHER, INSULATION

-------

Unavailable

4

Nut

-------

Unavailable

5

NUT, NYLOK, FLANGED

7542153

$1.59

6

Screw

7517957

Unavailable

6

Screw

7517957

Unavailable

7

Bracket, Starter, Rear

5245780

Unavailable

8

Bracket, Starter, Front

5245781

Unavailable

9

Washer, Spring Lock

7552603

$1.49

10

Screw

7512492

$1.49

11

Motor, Starter, Domestic

4170006

Unavailable

12

Kit, Asm., Armature

2200756

$169.99

13

Kit, Drive Hardware

2200755

Unavailable

13

WASHER, CURVED SPRING

-------

Unavailable

13

Washer, Thrust

-------

Unavailable

13

SPACER

-------

Unavailable

13

SPRING, ANTIDRIFT

-------

Unavailable

13

PINION, STOP

-------

Unavailable

13

RING, LOCK

-------

Unavailable

13

COVER, DUST

-------

Unavailable

13

Kit, Drive Hardware

2200755

Unavailable

13

WASHER, CURVED SPRING

-------

Unavailable

13

Washer, Thrust

-------

Unavailable

13

SPACER

-------

Unavailable

13

SPRING, ANTIDRIFT

-------

Unavailable

13

PINION, STOP

-------

Unavailable

13

RING, LOCK

-------

Unavailable

13

COVER, DUST

-------

Unavailable

14

Kit, Asm., Drive Cap

2200757

$59.99

15

Kit, Asm., Drive

2200754

Unavailable

15

PLATE, DRIVE

-------

Unavailable

15

PINION

-------

Unavailable

16

Kit, Screw

2200753

$29.99

16

BOLT, THRU

-------

Unavailable

17

Switch, Magnetic [Incl. 1,2]

4010930

$60.70
