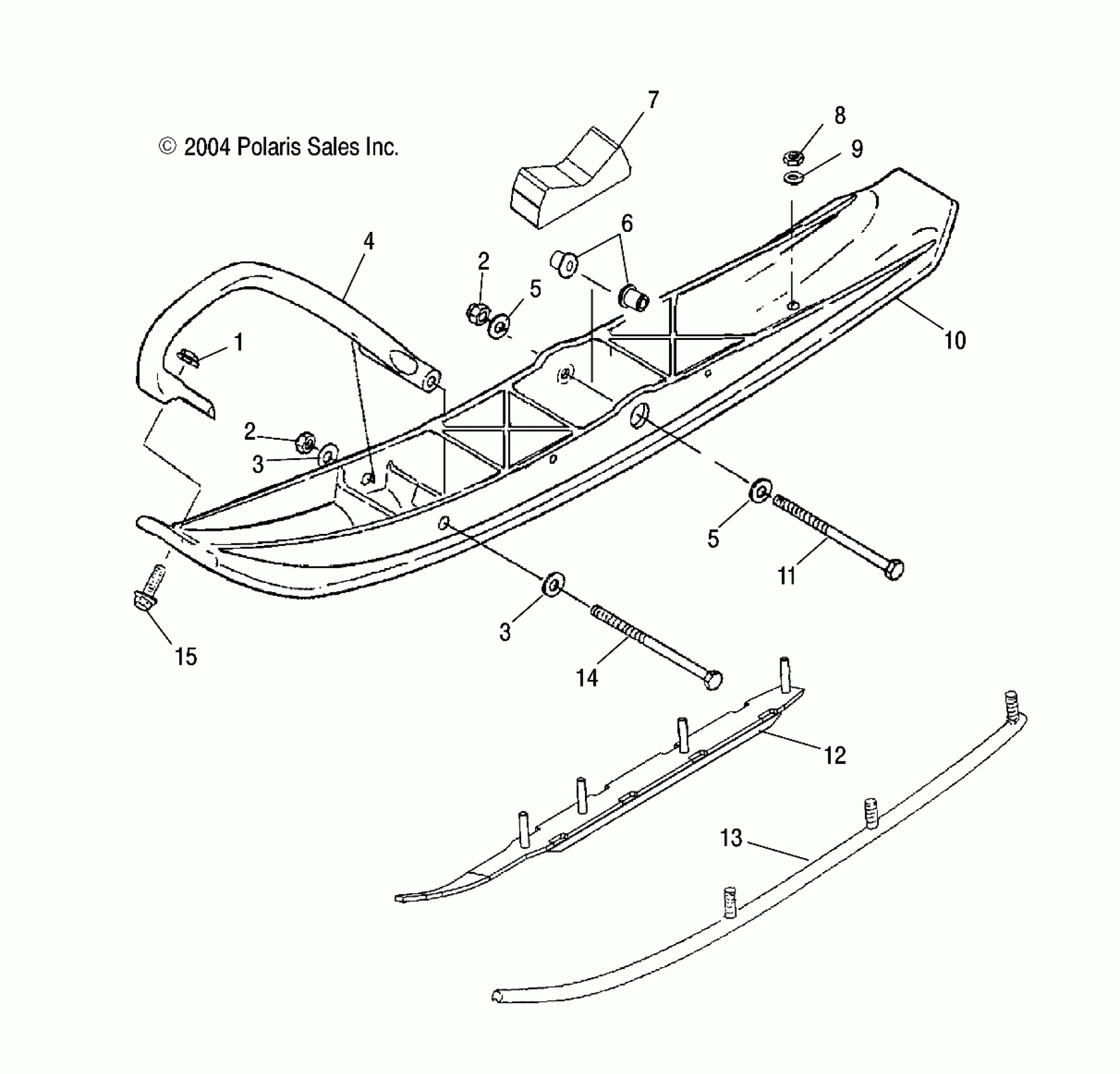

Polaris 700/800 XC SP M-10 F/O - S05NE7CS SKI - S05NE7CS/7CSA/NP7CS/7CSA/7CSB/NE8CS/8CSA/NP8CS/8CSA/8CSB (4993799379B04) Diagram

#

Description
Price

1

Nut, Flange

7542321

$1.49

2

Nut, Nylok

7542439

$1.49

2

Nut, Nylok

7542439

$1.49

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

4

Toe, Ski, Plastic, Black

5434165-070

$40.46

5

WASHER

7556130

$6.39

5

WASHER

7556130

$6.39

6

Bushing

5132637

$19.99

7

Stop, Rubber

5412018

$24.27

8

NUT-5/16-18 NYLOK-Y [Qty. 6 for Std.]

7542324

$1.49

9

Washer, Flat [Qty. 6 for Std.]

7556175

$5.99

10

Asm., Ski, Black

1820929-070

Unavailable

11

Screw

7517968

$9.59

12

Kit, Skag, Dual, 4 Inch, 60 Degree

2874752

Unavailable

13

Kit, Skag, 4 Inch, 60 Degree

2871688

$63.99

14

Bolt

7515514

$7.19

15

Bolt

7515307

$3.99
