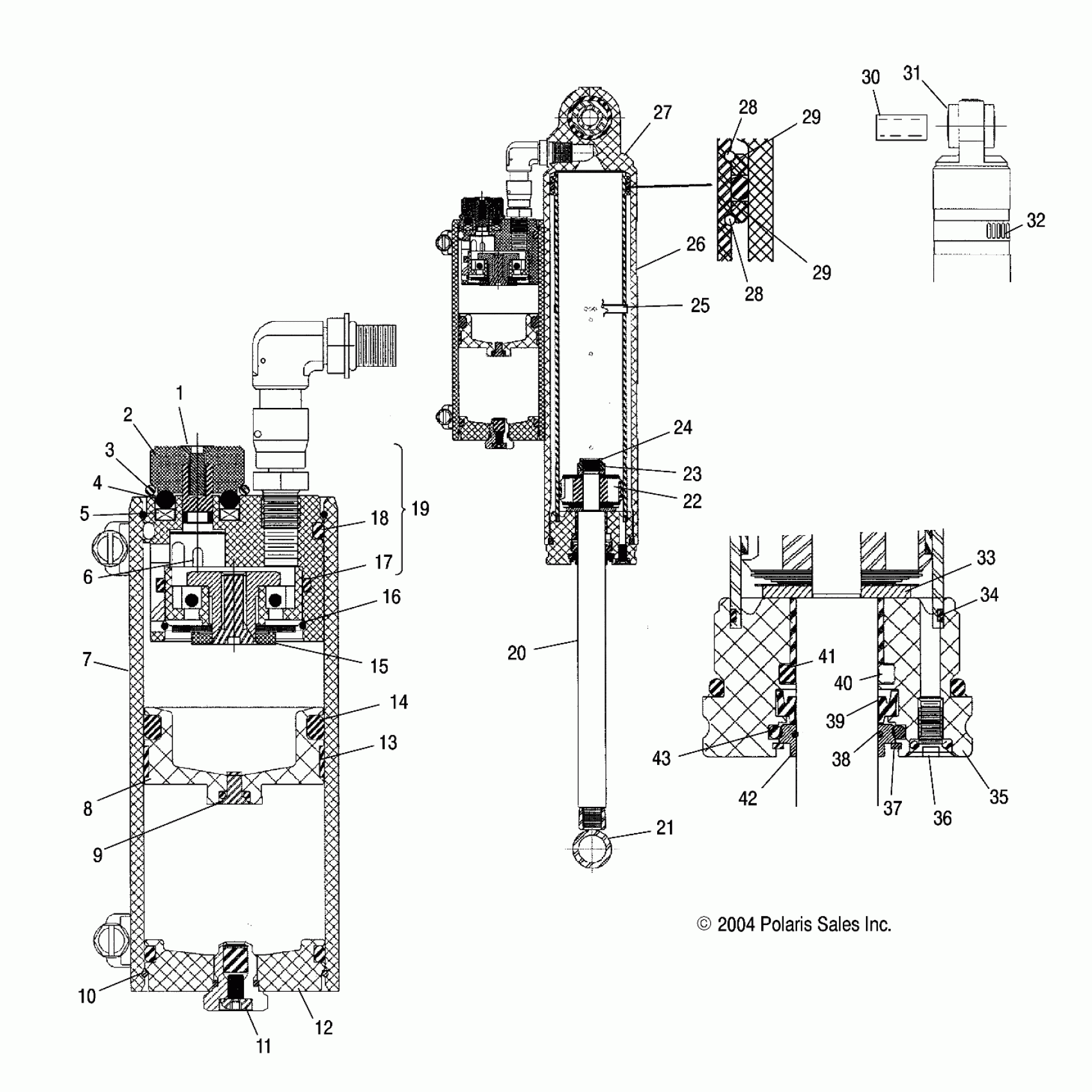

Polaris 700/800 XC SP M-10 F/O - S05NE7CS SHOCK (REAR TRACK)(EDGE) - S05NP7CS/7CSA/7CSB/8CS/8CSA/8CSB (4993799379C09) Diagram

#

Description
Price

-

Asm., Reservoir [Incl. 1-18]

1500329

Unavailable

-

Shock, Rear Track [Incl. All]

7042212

Unavailable

1

Screw

1500223

$2.23

2

Knob, 8 Click

1500521

$36.31

3

O-Ring

1500253

$1.49

4

Ball

1500226

$1.75

5

Spring

1500225

$3.32

6

Drum, Compression Damping

1500254

$40.79

7

Reservoir

1500325

Unavailable

8

Asm., Piston, Floating

1500235

$49.59

9

ASM., SCREW W/O-RING

1500161

Unavailable

10

RING, RETAINING

1500236

$9.59

11

Screw

1500232

Unavailable

12

Asm., Cap, Reservoir End

1500514

$35.51

13

Bearing, External

1500230

$31.99

14

Seal, O-Ring

1500229

$4.92

15

Plate, Damping

1500324

$50.00

16

Ring, Retaining

1500233

$3.75

17

O-Ring

1500227

$1.49

18

Seal, O-Ring

1500228

Unavailable

19

Asm., Compression Damping Housing [Incl. 1-6,17,18]

1500555

$122.84

20

Shaft

1500322

$71.99

21

Eyelet

1500302

$49.21

22

Bearing, Piston

1500002

$31.99

22

Piston

1500489

$12.39

23

Plate, Backup

1500015

$6.76

24

Nut, Lock

1500016

$12.79

25

Valve, Check

1500306

Unavailable

26

Asm., Body, Internal

1500331

$205.99

27

Asm., Body [Incl. 19]

1500480

$148.79

28

Ring, Retaining

1500097

$4.79

28

Ring, Retaining

1500097

$4.79

29

Collar

1500336

$27.78

29

Collar

1500336

$27.78

30

Sleeve

1500311

Unavailable

31

BUSHING

1500307

$7.99

32

Clamp, Hose

1500565

$18.39

33

Plate, Top Out

1500017

$20.22

34

O-RING

1500459

$5.65

35

Asm., Bearing, FIST [Incl. 18,34-43]

1500553

$121.99

36

O-Ring

1500022

Unavailable

36

Screw

1500295

Unavailable

37

Ring, Snap, Internal

1500552

$1.99

38

O-Ring

1500554

$2.15

39

U-Cup

1500256

$19.99

40

O-Ring

1500549

$2.38

41

Bearing, Internal

1500260

$4.79

42

Scraper, FIST

1500550

$13.39

43

O-Ring

1500551

$1.49
