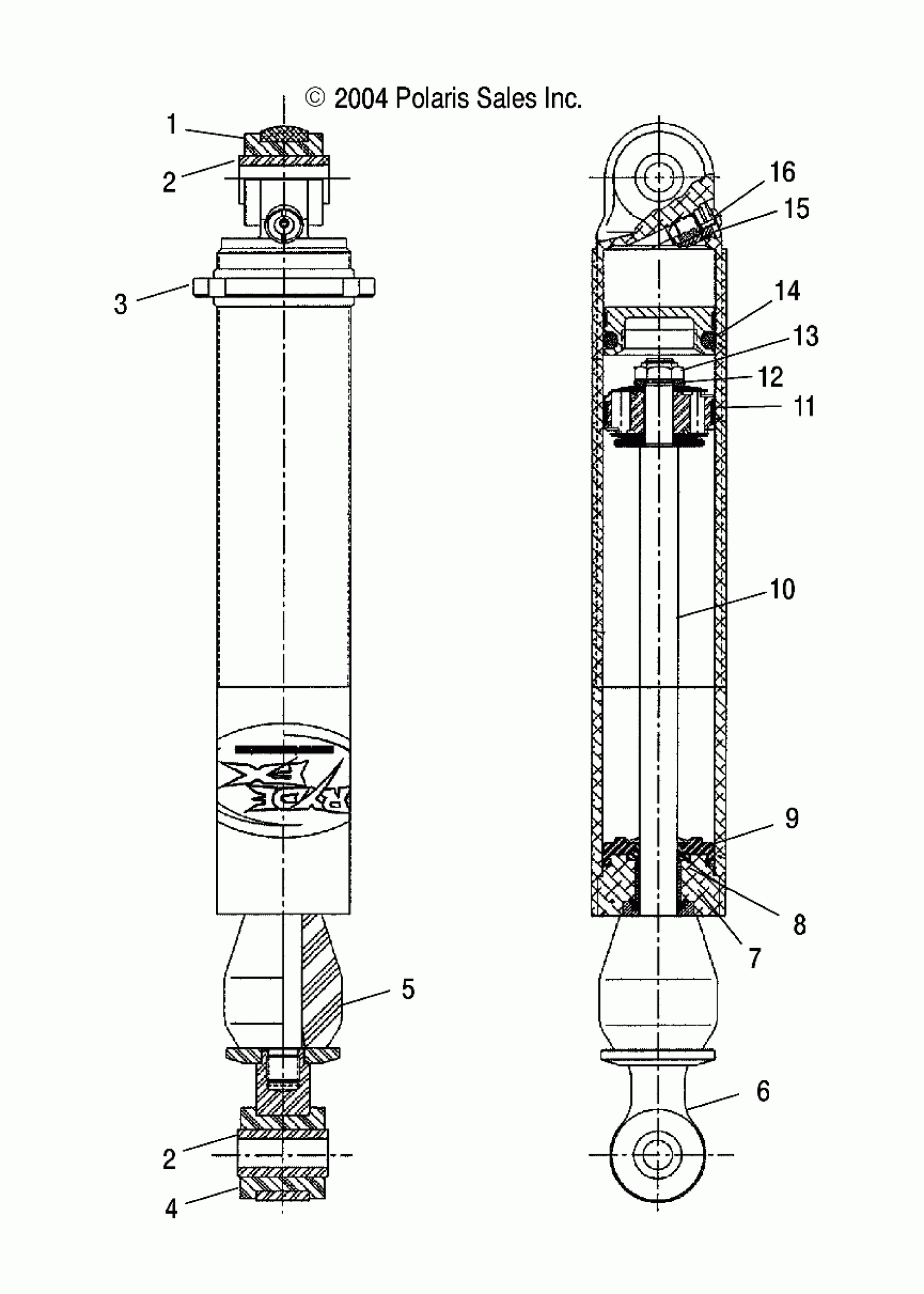

Polaris 700/800 XC SP M-10 F/O - S05NE7CS SHOCK IFS - S05NE7CS/7CSA/NP7CS/7CSA/7CSB/NE8CS/8CSA/NP8CS/8CSA/8CSB (4993799379C06) Diagram

#

Description
Price

-

Shock, IFS, IFP [Incl. All]

7041976

Unavailable

1

Bushing

1700036

$7.99

2

Sleeve

1700037

Unavailable

2

Sleeve

1700037

Unavailable

3

Nut, Spring Retainer

1700033

$23.81

4

Bushing

1700072

$9.59

5

Bumper, Compression

1700042

Unavailable

6

Mount, Upper

1700010

Unavailable

7

Asm., Cylinder Head

1700007

$106.49

8

Seal, Rod

1700021

$20.22

9

Seal, Cap

1700022

Unavailable

10

Shaft

1700025

$93.08

11

Washer, Back-Up

1700078

$9.59

11

Band, Wear, Piston

1700031

$28.32

11

Washer, Top-Out

1700077

$10.39

11

Banded Piston

1700109

Unavailable

12

Kit, Piston Valving

2200618

Unavailable

13

Nut

1700057

$9.59

14

IFP

1700023

$45.59

14

Band, Wear, IFP

1700032

$24.99

14

O-Ring, IFP

1700048

$11.60

15

O-Ring, Pressure Valve

1700047

$7.13

15

Asm., Pressure Valve

1700076

Unavailable

16

Screw, Valve

1700056

$6.94
