Partiron

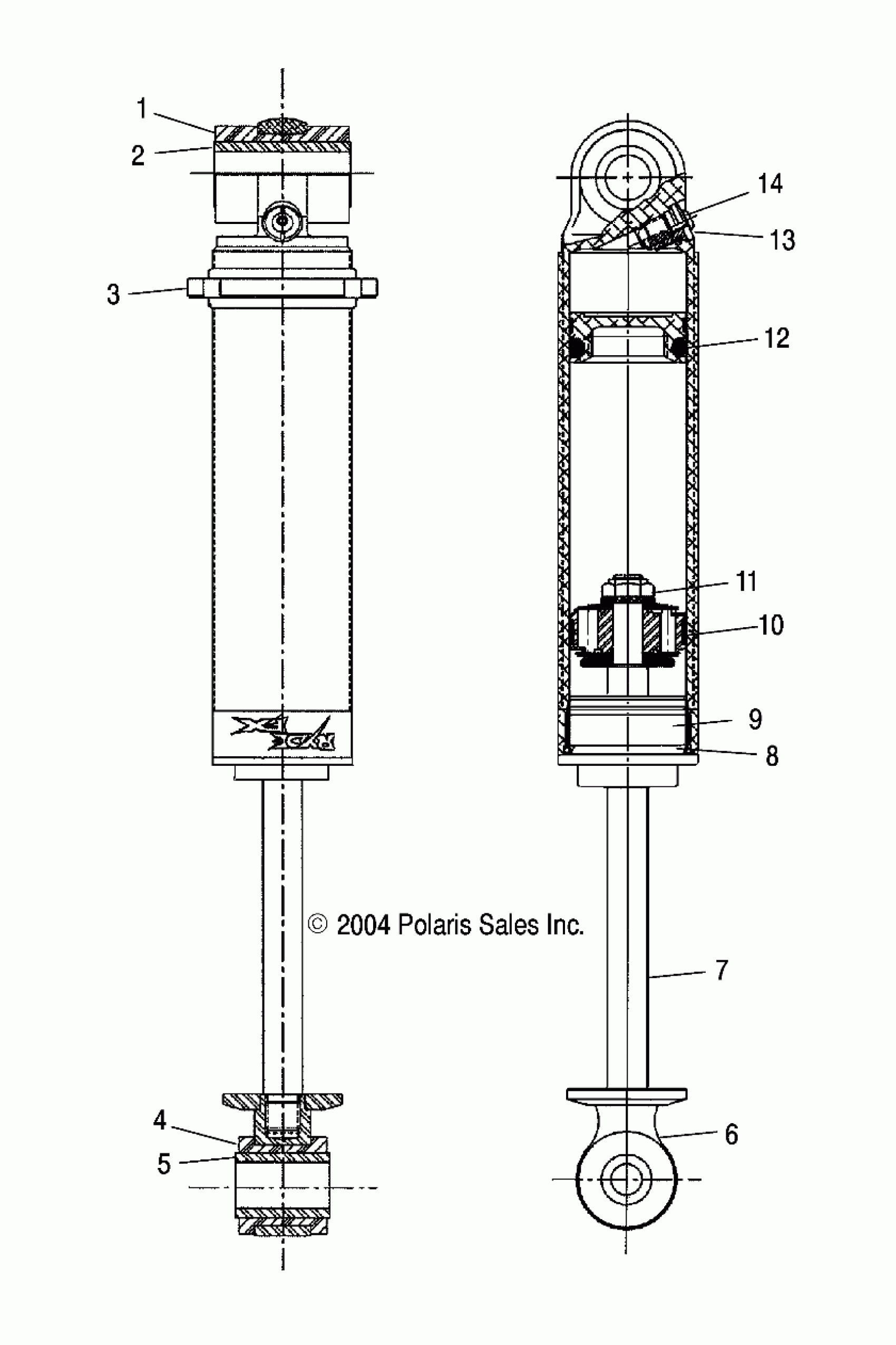

Polaris 700/800 XC SP M-10 F/O - S05NE7CS SHOCK (FRONT TRACK)(EDGE) - S05NE7CS/7CSA/8CS/8CSA (4993799379C14) Diagram

#

Description
Price

-

Shock, Front Track, IFP

7041975

Unavailable

1

Bushing

1700074

Unavailable

2

Sleeve

1700071

$15.99

3

Nut, Spring Retainer

1700033

$23.81

4

Bushing

1700075

$11.99

5

Sleeve

1700069

$15.99

6

Mount, Upper

1700010

Unavailable

7

Shaft

1700026

Unavailable

8

O-Ring, Cylinder Head

1700051

Unavailable

9

Asm, Cylinder Head

1700156

$74.99

10

Washer, Back-Up

1700078

$9.59

10

Band, Wear, Piston

1700031

$28.32

10

Washer, Top-Out

1700077

$10.39

10

Piston, Banded

1700103

Unavailable

11

Nut

1700057

$9.59

12

IFP

1700023

$45.59

12

Band, Wear, IFP

1700032

$24.99

12

O-Ring, IFP

1700048

$11.60

13

Asm., Pressure Valve

1700076

Unavailable

14

Screw, Valve

1700056

$6.94
