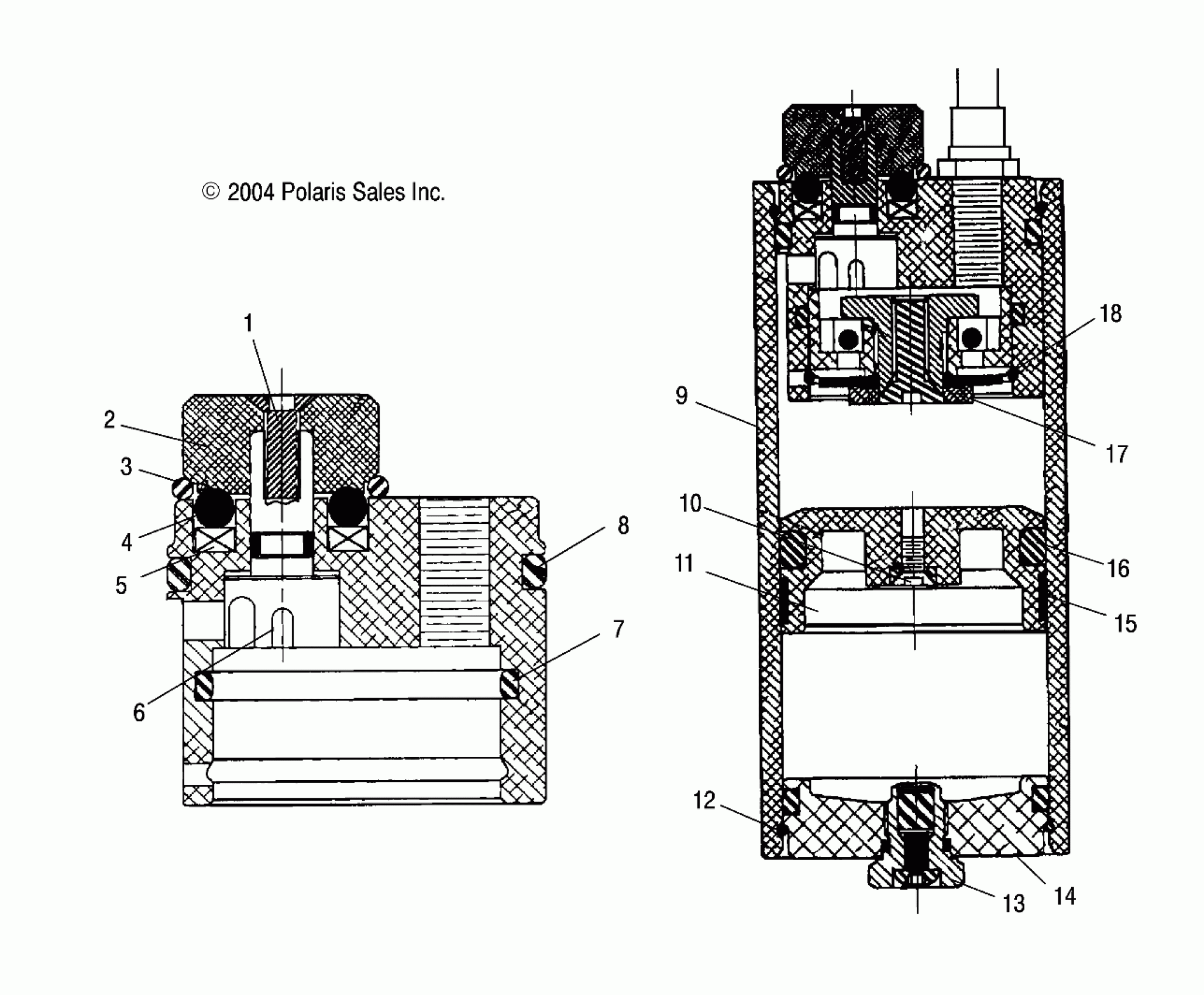

Polaris 700/800 XC SP M-10 F/O - S05NE7CS SHOCK COMPRESSION DAMPING RESERVOIR (EDGE) - S05NP7CS/7CSA/7CSB/8CS/8CSA/8CSB (4993799379C12) Diagram

#

Description
Price

-

Housing, Compression Damping [Incl. 1-8]

1500263

$103.19

-

Asm., Reservoir [Incl. All]

1500329

Unavailable

1

Screw

1500223

$2.23

2

Knob, Damping Adjust

1500224

$30.95

3

O-Ring

1500253

$1.49

4

Ball

1500226

$1.75

5

Spring

1500225

$3.32

6

Drum, Compression Damping

1500254

$40.79

7

O-Ring

1500227

$1.49

8

Seal, O-Ring

1500228

Unavailable

9

Reservoir

1500325

Unavailable

10

ASM., SCREW W/O-RING

1500161

Unavailable

11

Asm., Piston, Floating

1500235

$49.59

12

RING, RETAINING

1500236

$9.59

13

Screw

1500232

Unavailable

14

Asm., Cap, Reservoir End

1500231

Unavailable

15

Bearing, External

1500230

$31.99

16

Seal, O-Ring

1500229

$4.92

17

Plate, Damping

1500324

$50.00

18

Ring, Retaining

1500233

$3.75
