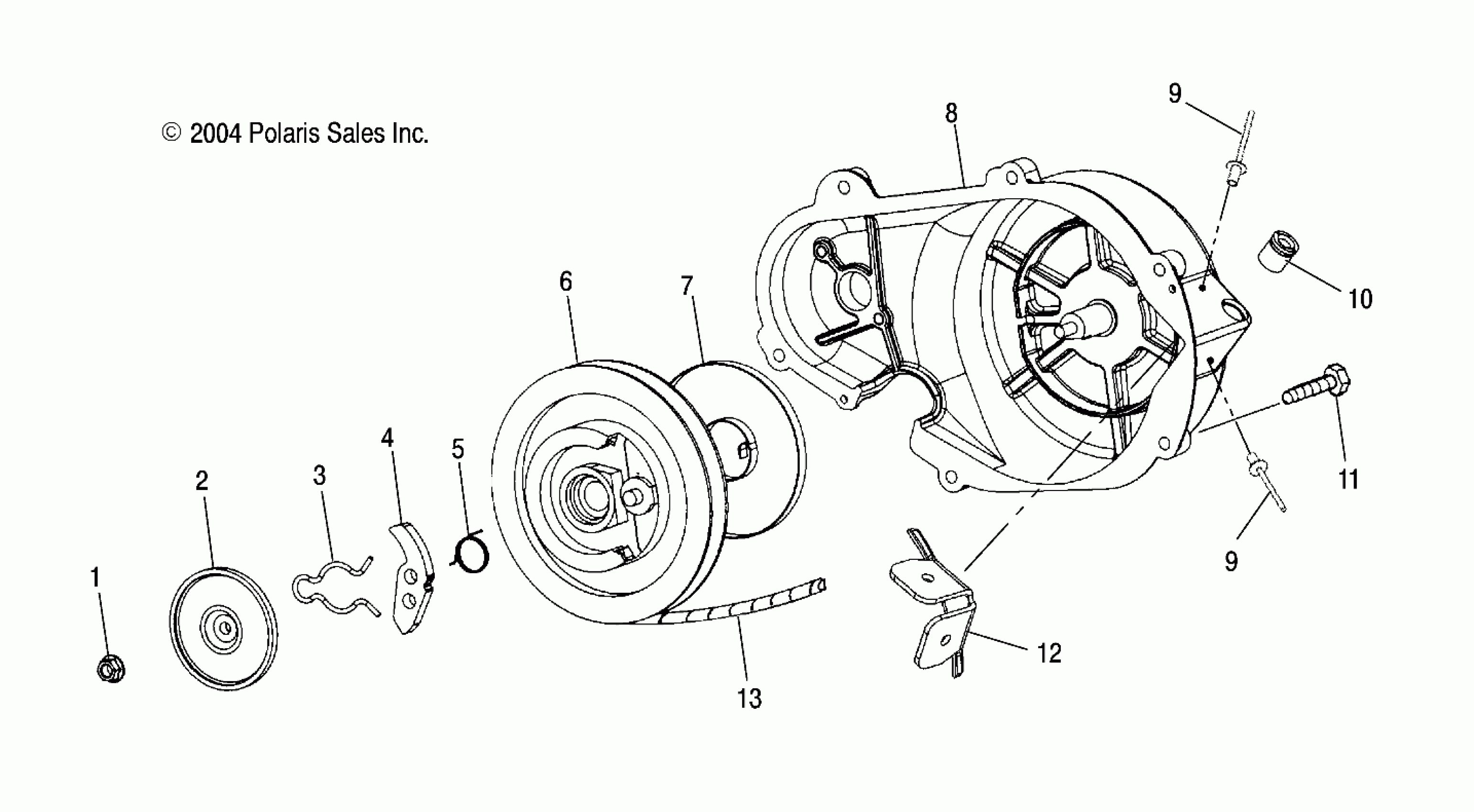

Polaris 700/800 XC SP M-10 F/O - S05NE7CS RECOIL STARTER (800) - S05NP8CS/8CSA/8CSB/NE8CS/8CSA (4993799379E12) Diagram

#

Description
Price

-

Asm., Recoil [Incl. 1-10,13 & Starting Pulley]

1202408

Unavailable

1

Nut

3040163

Unavailable

2

Plate, Friction

3040164

Unavailable

3

Spring, Friction

3040167

Unavailable

4

Ratchet

5246108

$24.27

5

Spring, Return

3040166

Unavailable

6

Reel

3040168

$44.51

7

Spring, Spiral

3040170

Unavailable

8

Housing, Recoil

3040160

Unavailable

9

Rivet

7661148

$1.27

9

Rivet

7661148

$1.27

10

BUSHING,ROPE SLIDE

3040171

$3.48

11

Screw

7517998

$3.19

12

Shield, Recoil Rope

5246218

$19.83

13

ROPE, STARTER

3040169

$24.27
