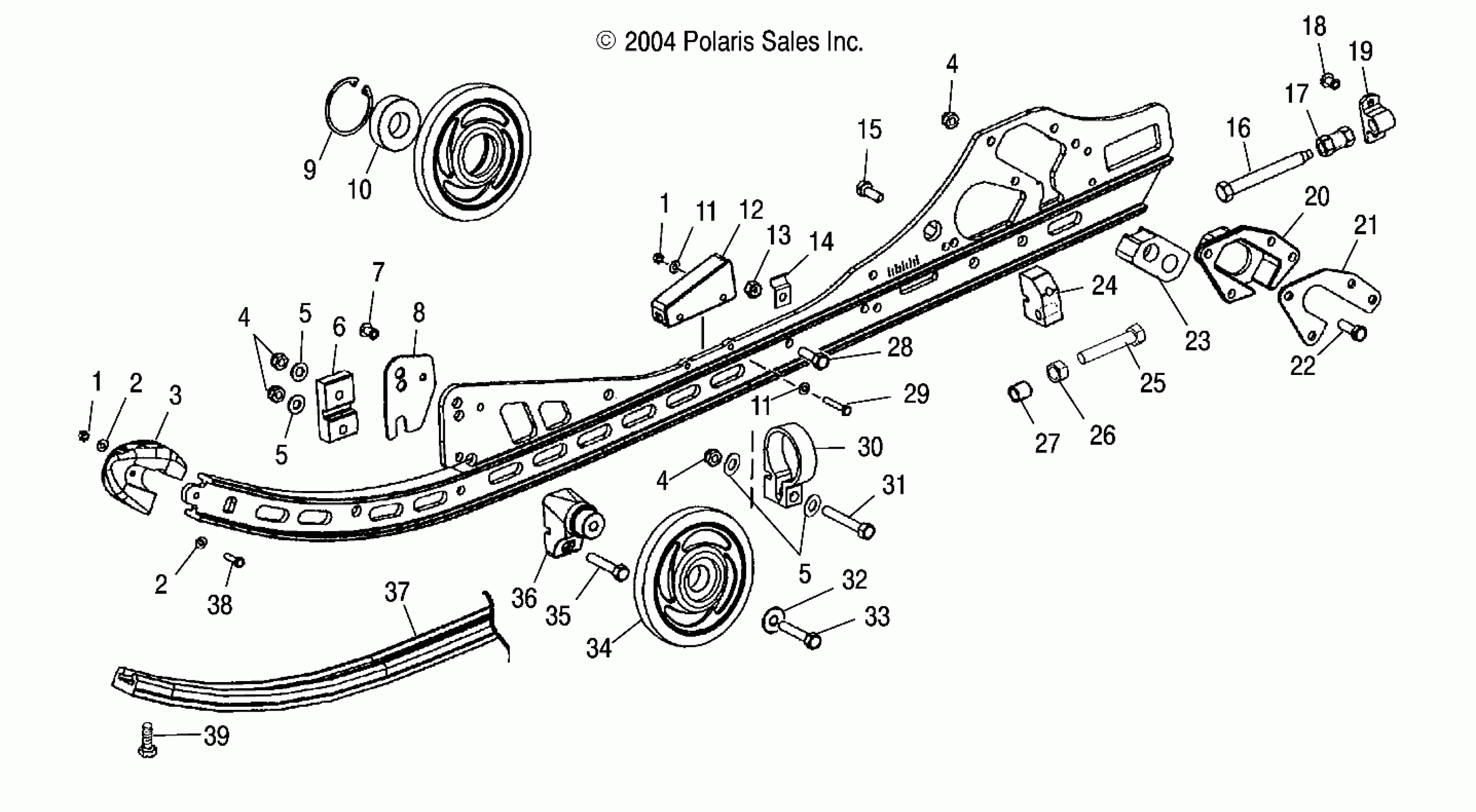

Polaris 700/800 XC SP M-10 F/O - S05NE7CS RAIL MOUNTING (M-10) - S05NE7CS/7CSA/8CS/8CSA (4993799379C01) Diagram

#

Description
Price

-

Asm., Rail, M-10, Natural, LH [Incl. 1-3,12,18,19,29,38]

1541782-309

$319.99

-

Asm., Rail, M-10, Natural, RH [Incl. 1-3,12,18,19,29,38]

1541783-309

$298.99

-

Asm., Rail, M-10, ACE, LH [Incl. 1-3,12,18,19,29,38]

1541901-309

$319.99

-

Asm., Rail, M-10, ACE, RH [Incl. 1-3,12,18,19,29,38]

1541902-309

$278.99

1

Nut, Nylok

7541925

$1.49

1

Nut, Nylok

7541925

$1.49

2

WASHER

7555792

$4.79

2

WASHER

7555792

$4.79

3

Cap, Rail Tip

5434374

$20.22

4

NUT-5/16-18 NYLOK-Y [Qty. 10 for ACE]

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y [Qty. 10 for ACE]

7542324

$1.49

4

NUT-5/16-18 NYLOK-Y [Qty. 10 for ACE]

7542324

$1.49

5

WASHER-.344X.688X.063 FL-Y [Qty. 4 for ACE]

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y [Qty. 4 for ACE]

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y [Qty. 4 for ACE]

7558402

$1.49

6

Block, Rail Support

5132577

Unavailable

7

RIVET

7661845

$1.49

8

Plate, Rail Support

5244651

$9.84

9

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

10

BEARING [1 PER WHEEL]

3514303

$11.99

11

Washer, Flat

7555783

$3.99

11

Washer, Flat

7555783

$3.99

12

LINER-BUMPER [M-10 ACE]

5432946

$9.70

12

Bumper, Rail Jounce [M-10]

5411947

$12.39

12

Bumper, M-10 ACE

5412336

$9.84

13

Nut [M-10 ACE]

7547004

$4.79

14

Clip, J, Retainer [M-10 ACE]

7080963

$2.39

15

Bolt [M-10 Only]

7512392

$4.79

16

Screw

7517773

$28.56

17

Nut, Tension Adjust

5132712

Unavailable

18

RIVET

7621501

$2.39

19

Block, Idler Bolt Adjust

5132611

$34.71

20

Guide, Slider, LH

5631188

$51.59

20

Guide, Slider, RH

5631189

Unavailable

21

Plate, Coupler Block

5245045

Unavailable

22

Screw

7512310

$2.39

23

Block, Slider, Long, M-10, LH

5434239

$19.60

23

Block, Slide, Long, M-10, RH

5434240

$16.47

24

Block, Shock Pivot Threaded [M-10 Only]

5132584

$45.99

25

Screw [M-10 Only]

7515511

$3.99

26

Nut [M-10 Only]

7542404

$1.59

27

Spacer [M-10 Only]

5133009

$2.22

28

Screw [M-10 ACE]

7511876

Unavailable

29

Screw [M-10 ACE]

7510504

$6.76

29

Bolt [M-10]

7511967

$5.43

30

Clamp, Reservoir [M-10 Only]

5132832

$23.99

31

Bolt [M-10 Only]

7515319

$4.79

32

Washer, Spring

7556179

$7.99

33

BOLT

7515382

$2.39

34

Asm., Wheel, Scrolled, Bright Silver [Incl. 9,10]

1590275-244

Unavailable

35

Bolt

7512329

$3.99

36

Block, Wheel Mount

5631065

$28.32

37

Slider, XL, Service, Basic

5521571

$36.41

38

Screw

7511975

Unavailable

39

Screw

7515199

$1.49
