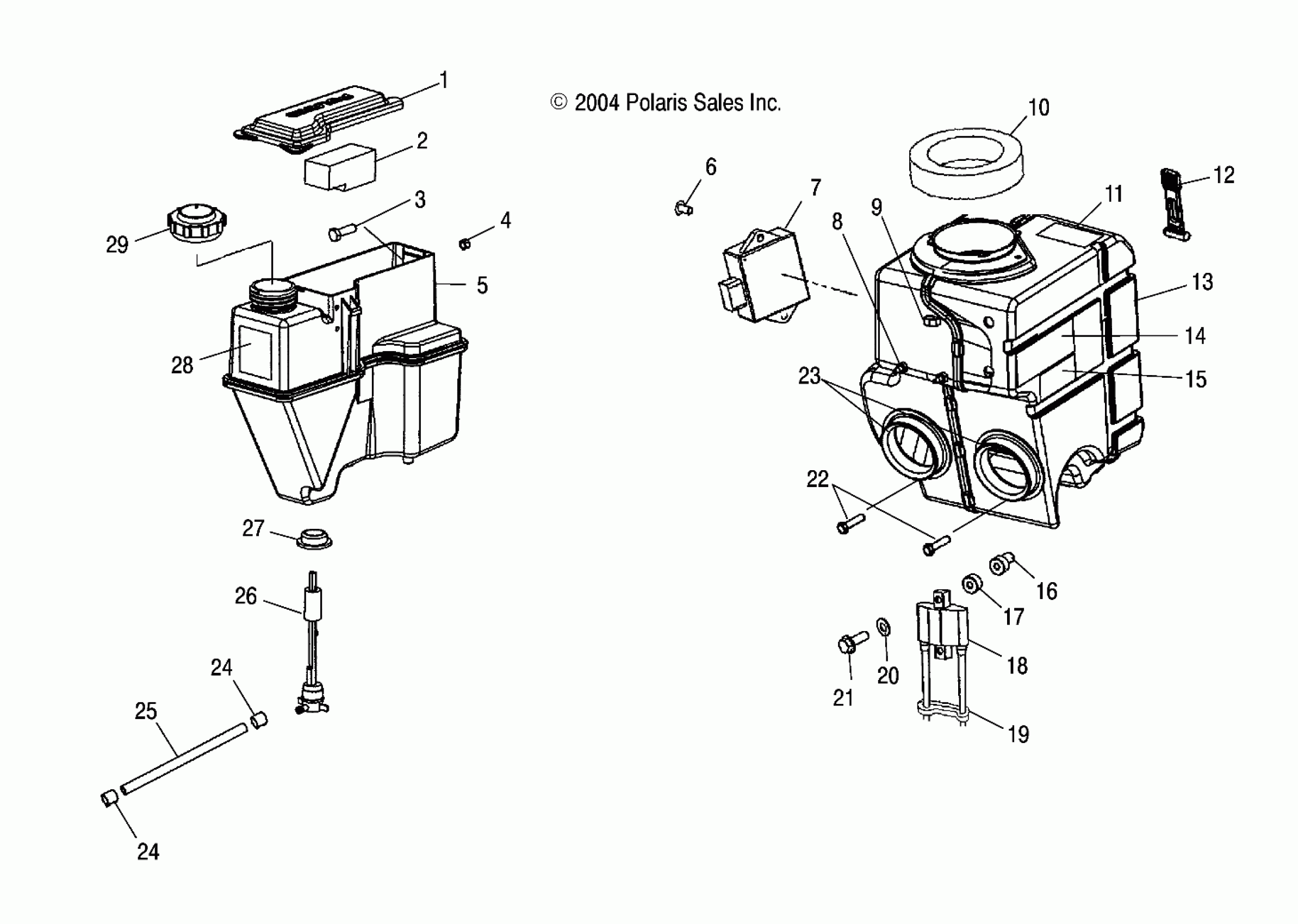

Polaris 700/800 XC SP M-10 F/O - S05NE7CS OIL TANK/AIR BOX - S05NE7CS/7CSA/NP7CS/7CSA/7CSB/NE8CS/8CSA/NP8CS/8CSA/8CSB (4993799379D06) Diagram

#

Description
Price

1

Cover, Tool Box

5434089

$27.19

2

Foam

5812209

Unavailable

3

Screw

7512297

$5.59

4

Nut, Nylok

7542122

$1.49

5

Asm., Oil Tank w/Sending Unit [Incl. 1,26]

1253539

Unavailable

5

Oil Bottle/Tool Box

1261127

Unavailable

6

Screw

7512095

$4.79

7

KIT, CDI [SEE MAGNETO, 700 PG. E3, REF. 19, AND MAGNETO, 800 PG. E11, REF. 20]

-------

Unavailable

8

Fitting, Hose

7052127

$3.19

9

Clip

7670102

$2.39

10

Foam, Chimney

5811983

$20.22

11

Decal, Caution

7075351

Unavailable

12

STRAP-AIRBOX TOP

5433150

$24.27

13

Asm., Air Silencer [Incl. 23 & Decals]

1253501

Unavailable

14

Decal, Belt Removal

7171037

Unavailable

15

Decal, Greasing

7073426

$7.27

16

Nut, Well

7547103

$8.79

17

Washer, Nylon

7555932

$2.39

18

COIL, IGNITION [SEE MAGNETO, 700 PG. E3, REF. 17, AND MAGNETO, 800 PG. E11, REF. 17]

-------

Unavailable

19

Clip, Ignition Cable

7080471

$3.59

20

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

21

Screw

7517610

$1.59

22

Screw

7511862

$6.99

23

Boot, Carburetor

5412157

Unavailable

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

Line, Fuel

8450003-1525

Unavailable

26

Sender, Oil w/Front Terminals

4010660

$60.70

27

Grommet, Oil Sender

7052305

$4.84

28

Decal, Oil, VES

7079003

Unavailable

29

Cap, Oil

1240094

$36.41
