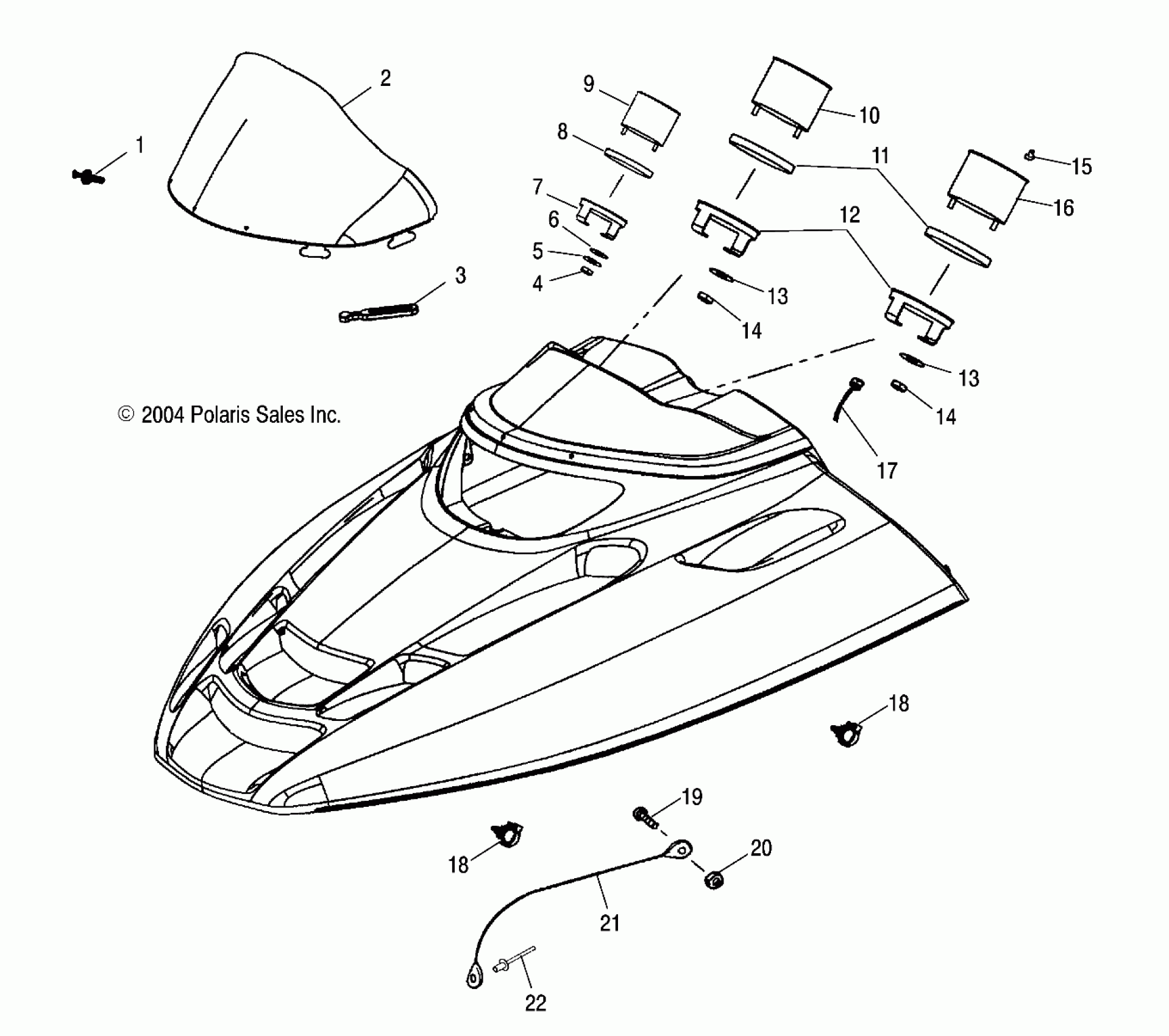

Polaris 700/800 XC SP M-10 F/O - S05NE7CS HOOD - S05NE7CS/7CSA/NP7CS/7CSA/7CSB/NE8CS/8CSA/NP8CS/8CSA/8CSB (4993799379A11) Diagram

#

Description
Price

1

RIVET

7621509

$1.49

2

Windshield, Edge, Flared, Smoke/Gray, 13 Inch [Black Hood]

5435485

Unavailable

2

Windshield, Edge, Flared, Smoke/Gray, 13 Inch [White Hood]

5435486

Unavailable

3

RETAINER, WINDSHIELD

5410970

$1.49

4

Nut

7541933

$4.99

5

Washer, Lock

7555868

Unavailable

6

Washer, Flat

3280324

$0.51

7

Clamp, Back

3280322

$5.43

8

Cushion

3280323

$8.79

9

Asm., Gauge, Ride Control [M-10 ACE][Incl. 7,8]

3280404

$140.79

10

Bulb [Replacement]

4030015

$4.03

10

Kit, Tachometer

2874401

Unavailable

11

Cushion, Rubber

3280209

$3.99

12

Bracket, Speedometer/Tachometer

3280210

$28.32

13

Washer, Flat

3280157

$2.39

13

Washer, Flat

3280157

$2.39

14

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

14

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

15

Knob, Trip Odometer

3280186

$9.70

16

Bulb [Replacement]

4030015

$4.03

16

Asm., Speedometer

3280411

$339.98

17

Cable, Speedometer

3280385

$93.08

18

Clip, Plastic, Dart, Nylon

4010589

$2.39

18

Clip, Plastic, Dart, Nylon

4010589

$2.39

19

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

20

Nut, Nylok

7541925

$1.49

21

Cable, Hood Retainer

7080521

$24.27

22

RIVET-3/16-.090-.290

7661637

$1.49
