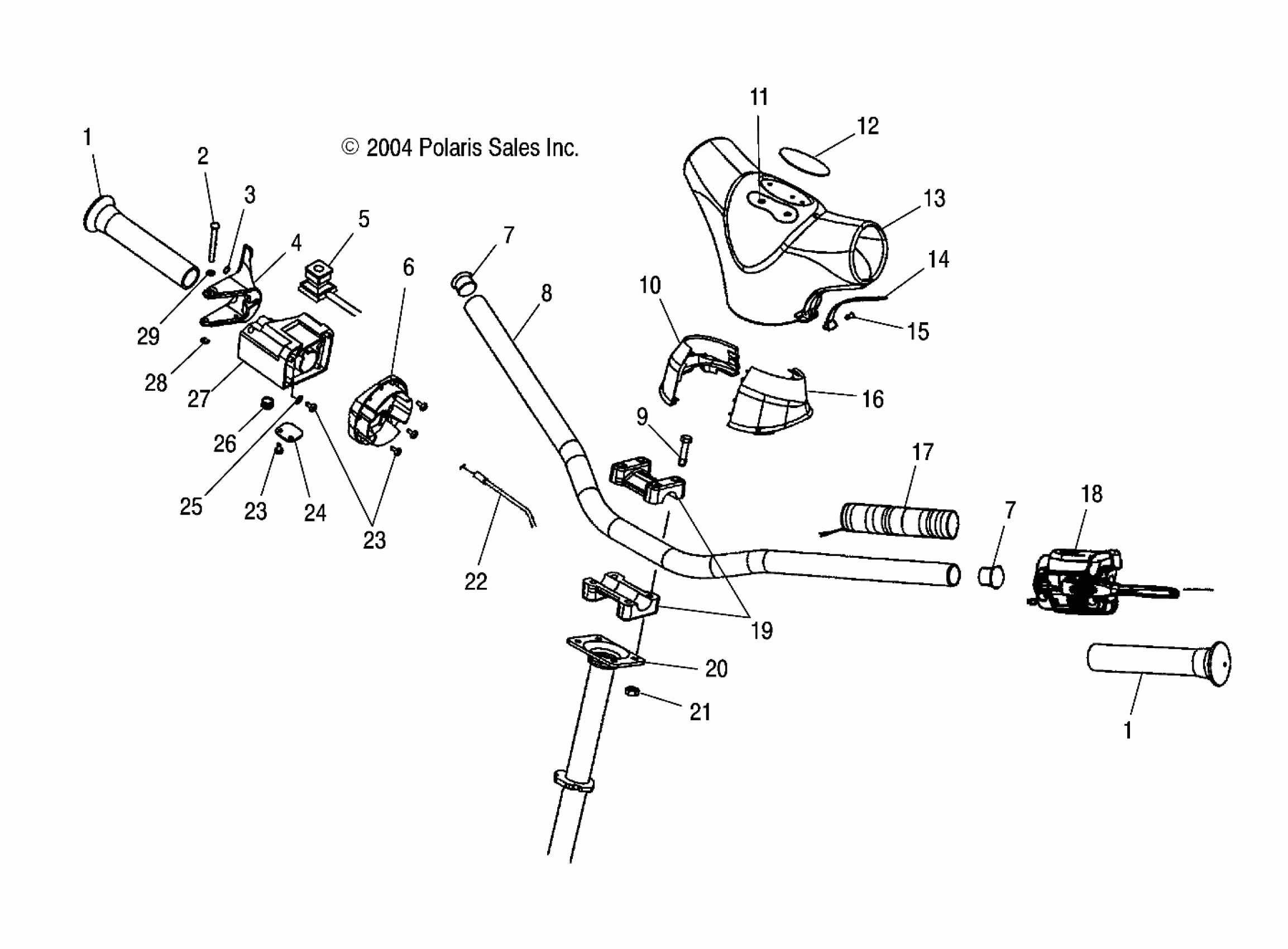

Polaris 700/800 XC SP M-10 F/O - S05NE7CS HANDLEBAR - S05NE7CS/7CSA/NP7CS/7CSA/7CSB/NE8CS/8CSA/NP8CS/8CSA/8CSB (4993799379B07) Diagram

#

Description
Price

1

Grip, Handlebar

5432634

$24.27

1

Grip, Handlebar

5432634

$24.27

2

PIN-RETAINING .186X1.780-AL

7661624

$12.79

3

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

4

LEVER, THROTTLE

5432970

$29.03

4

ASM., LEVER W/HEATER, HI/LO

2010171

$84.98

5

Switch, Auxiliary Shut-Off

4110106

$94.99

6

ADAPTOR, BLOCK, THROTTLE

5433345

$15.99

7

Plug

5431096

$2.02

7

Plug

5431096

$2.02

8

Handlebar, Black

5243355-067

$94.99

9

SCREW

7517238

$4.79

10

Collar, Console, RH

5434488

Unavailable

11

Nut, Push-On

7670106

$2.39

12

Emblem, Star

5434179

Unavailable

13

Cover, Handlebar, Black

5433159-070

$77.99

14

Slide, Handlebar Cover, Black

5433160-070

$28.32

15

CLIP, DART, NYLON

4010287

$3.99

16

Collar, Console, LH

5434487

$24.99

17

Heater, Grip, Lo/Med/Hi

2460677

$60.70

18

ASM., CONTROL, LH [SEE BRAKE PG. B8 REF. 12]

-------

Unavailable

19

Block, Handlebar, Black

5630187-067

$44.99

20

Post, Steering, Black

1820965-067

Unavailable

21

Nut, Nylok

7542122

$1.49

22

Cable, Throttle

7081051

$64.75

23

Screw

7511848

$3.99

23

Screw

7511848

$3.99

24

HOLDER, WIRE

5432261

$24.27

25

WASHER

7555727

$1.49

26

SCREW, SET

7512465

$3.99

27

BLOCK, THROTTLE/BRAKE

5431592

$49.99

28

RING-RETAINING EXTERNAL

7710401

$3.99

29

WASHER

7555730

$3.99
