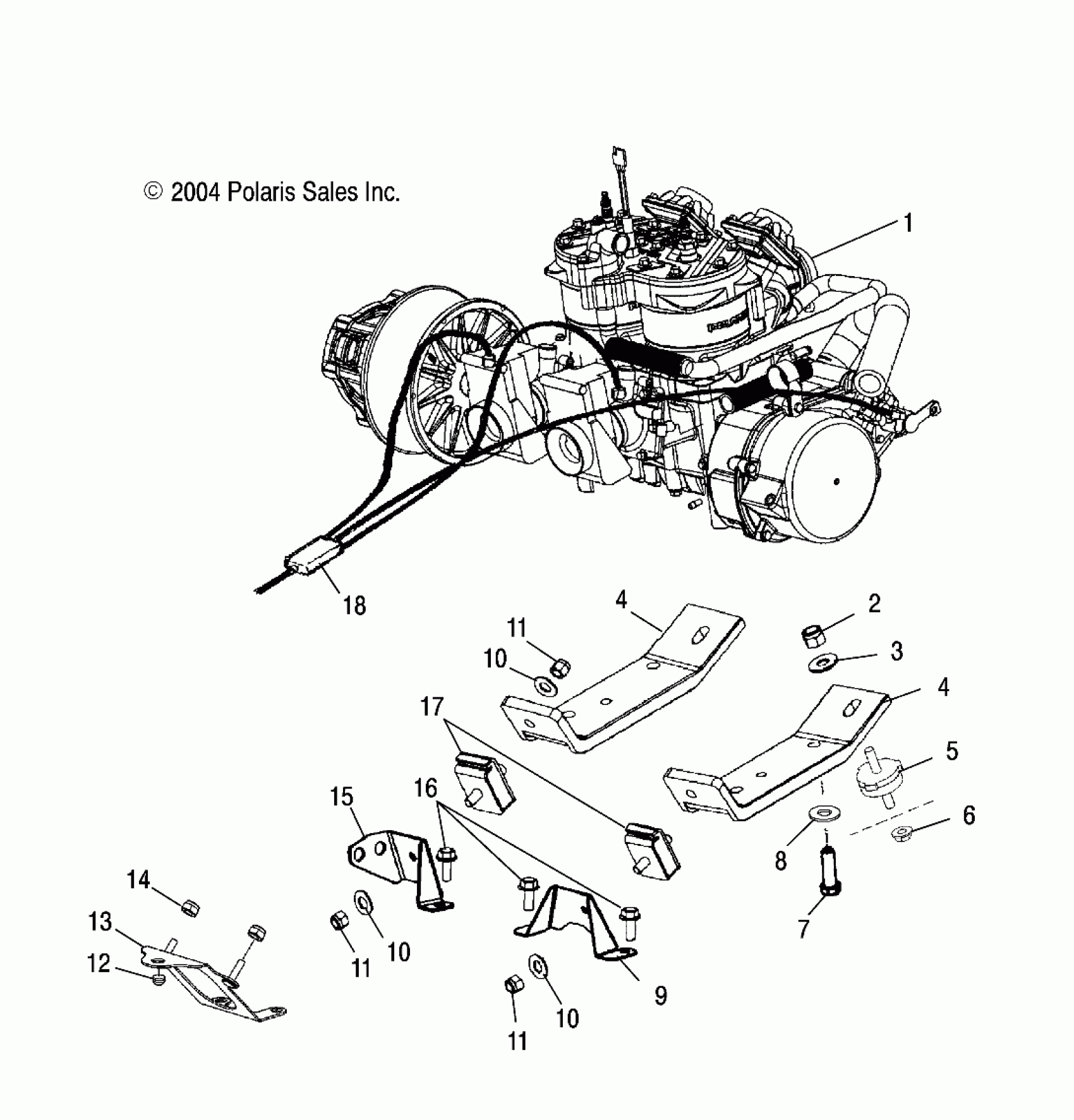

Polaris 700/800 XC SP M-10 F/O - S05NE7CS ENGINE MOUNTING - S05NE7CS/7CSA/NP7CS/7CSA/7CSB/NE8CS/8CSA/NP8CS/8CSA/8CSB (4993799379D10) Diagram

Kit, Short Block, S707004 [700] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is require

2202513

Unavailable

Kit, Short Block, S807004 [800] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is requir

2202517

Unavailable

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

Washer, Flat

7555893

$1.49

Strap, Engine Mount, LH

5245462

$39.99

Strap, Engine Mount, RH

5246381

$32.15

Strap, Engine Mount, LH

5245462

$39.99

Strap, Engine Mount, RH

5246381

$32.15

Mount, Engine

3021220

Unavailable

NUT, FLANGED

7547180

$2.39

Bolt

7512539

$3.99

Washer, Spring Lock

7553101

$3.99

Bracket, Engine Mount, RH

5245044

Unavailable

Washer, Flat

7555806

$1.49

Washer, Flat

7555806

$1.49

Washer, Flat

7555806

$1.49

NUT, FLEXLOC

7547008

$6.39

NUT, FLEXLOC

7547008

$6.39

NUT, FLEXLOC

7547008

$6.39

Plug, Rubber

5410012

Unavailable

Bracket, Fuel Pump

1014392

$12.39

Nut, Nylok

7542122

$1.49

Bracket, Engine Mount, LH

1013397

$24.27

Screw

7517854

$5.59

Mount, Engine

3021206

$60.70

Cable, Throttle

7081051

$64.75
