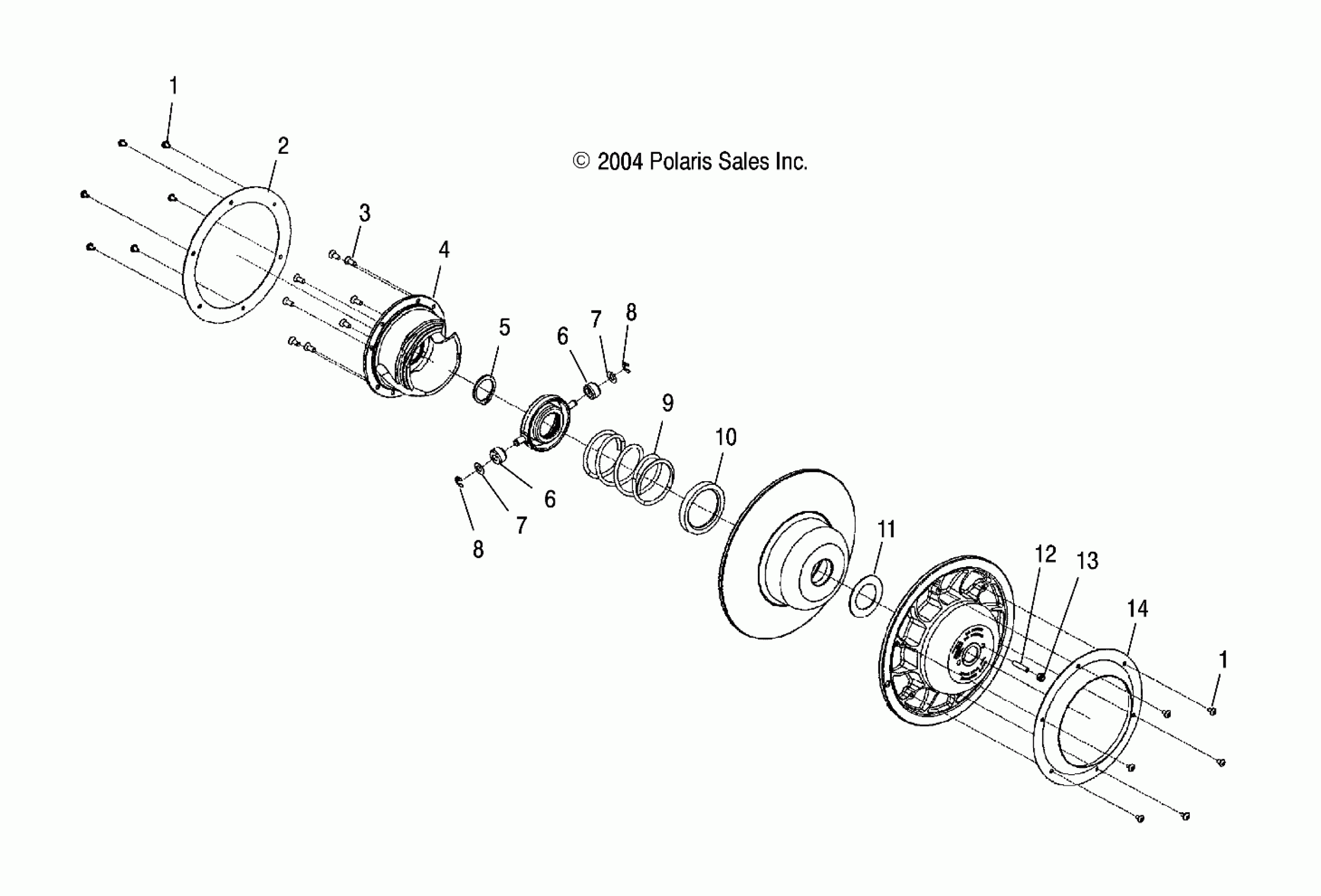

Polaris 700/800 XC SP M-10 F/O - S05NE7CS DRIVEN CLUTCH - S05NE7CS/7CSA/NP7CS/7CSA/7CSB/NE8CS/8CSA/NP8CS/8CSA/8CSB (4993799379D05) Diagram

Description

Price

Asm., Driven Clutch, 211 [Incl. 5-8,10-13]

1322433

Unavailable

Screw

7518023

$4.03

Screw

7518023

$4.03

Plate, Windage

5246216

$20.48

Screw, Cap

3233996

Unavailable

Ramp, Driven, 62/42-.46 [700]

5133773

Unavailable

Ramp, Driven, 62/46-.46 [800]

5133772

Unavailable

RING, RETAINING

7710522

$13.59

ROLLER

5434534

$48.56

ROLLER

5434534

$48.56

WASHER, THRUST

7556226

$5.65

WASHER, THRUST

7556226

$5.65

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

SPRING, DRIVEN CLUTCH, BLACK, LH

7043063

$56.65

WASHER, THRUST

7556227

$23.99

Spacer

3234033

Unavailable

Screw

7518024

Unavailable

Nut, FLEXLOC

7542103

$5.59

Plate, Windage

5246217

Unavailable
