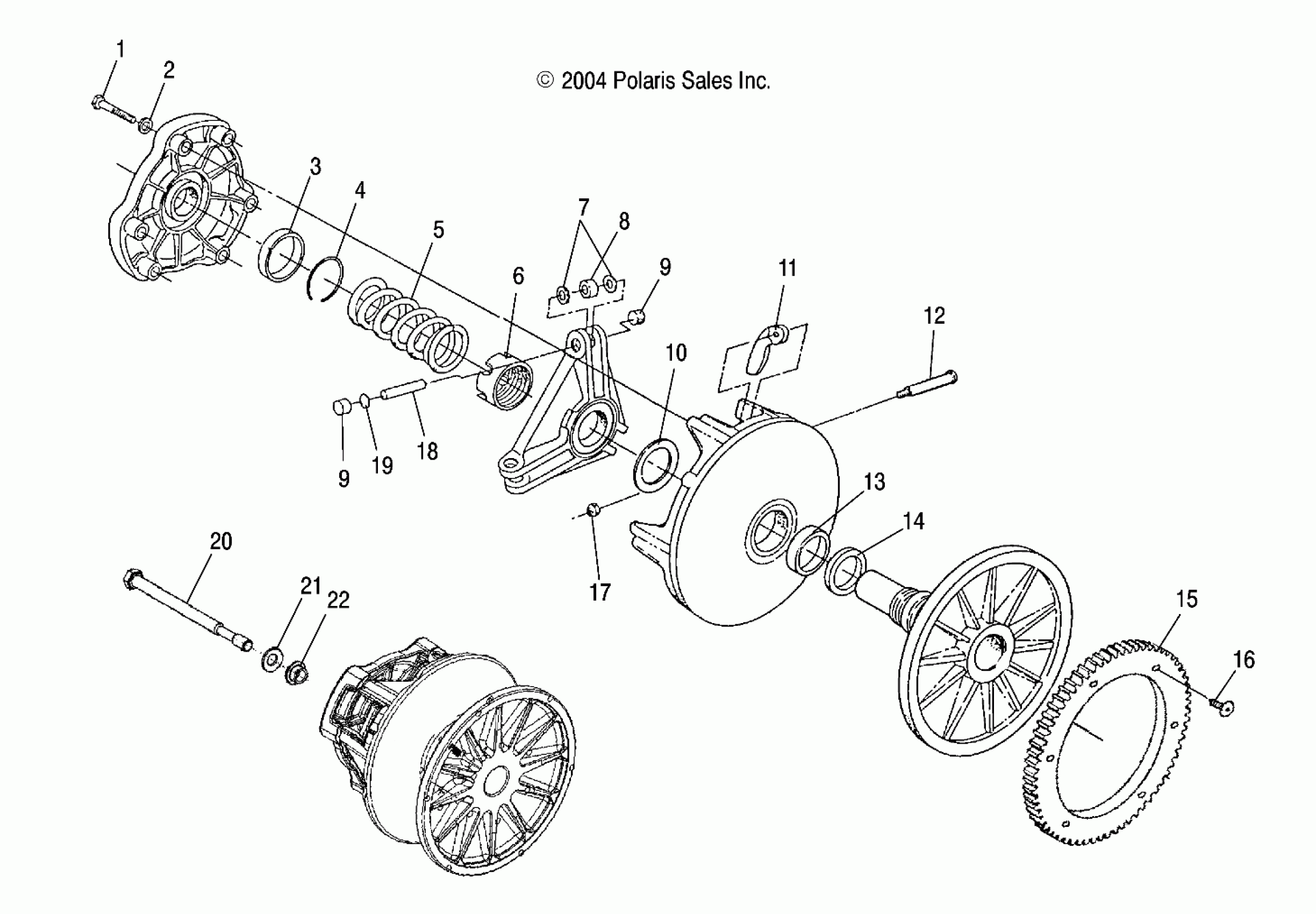

Polaris 700/800 XC SP M-10 F/O - S05NE7CS DRIVE CLUTCH (ELECTRIC START MODELS) - S05NE7CS/7CSA/NP7CS/7CSA/7CSB/NE8CS/8CSA/NP8CS/8CSA/8CSB (4993799379D04) Diagram

Kit, Wide Roller Spider Rebuild [Incl. 7-9,12,18,19][700]

2201169

$169.98

Asm., Drive Clutch ES Basic 125 [Incl. All Less 5,11][800]

1322022

Unavailable

Asm., Drive Clutch ES Basic 117 [Incl. All Less 5,11][700]

1321931

Unavailable

Kit, Wide Roller Spider Rebuild [Incl. 7-9,12,18,19][800]

2202376

$238.79

Bolt

7512265

$3.99

WASHER, SPRING LOCK

7552801

$1.59

Bearing, Cover [700]

3576516

$28.32

BEARING COVER GARMAX [800]

3514347

$36.41

RING-RETAINING,COVER

7710417

$1.49

Spring, Clutch, Black/Green [700]

7042083

$56.65

Spring, Clutch, Dark Blue/White [800]

7041781

$56.65

NUT-JAM

5020425

$23.99

WASHER,MULTILUBE

5430945

$1.59

ASM-ROLLER AND BUSHING

1321622

$32.37

Button, Guide [700]

5430445

$6.39

Button, Guide [800]

5434188

$12.79

Button, Guide [700]

5430445

$6.39

Button, Guide [800]

5434188

$12.79

SPACER, .050

5210754

Unavailable

SPACER, .025

5242981

Unavailable

SPACER, .020

5210752

Unavailable

SPACER, .032

5210753

Unavailable

Spacer, .130

5134018

Unavailable

Spacer, .130 [700]

5132542

Unavailable

Asm., Weight/Bushing 10-62 [700]

1321586

$40.46

Asm., Weight/Bushing 10-64 [800]

1321585

$40.46

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

Bearing, Sleeve

3576502

$23.99

INSERT-MOVEABLE

5010188

$7.99

Gear, Ring

5131062

Unavailable

Bolt

7515351

$3.99

NUT, FLEXLOC

7541906

$3.19

Pin, Roller [700]

5133079

$6.39

Pin, Roller [800]

5133054

Unavailable

Kit - Shim, Drive Clutch

2200387

$24.27

Screw

7517501

Unavailable

WASHER

7556003

$6.39

WASHER-CLUTCH RET,M14

5132441

$23.99
