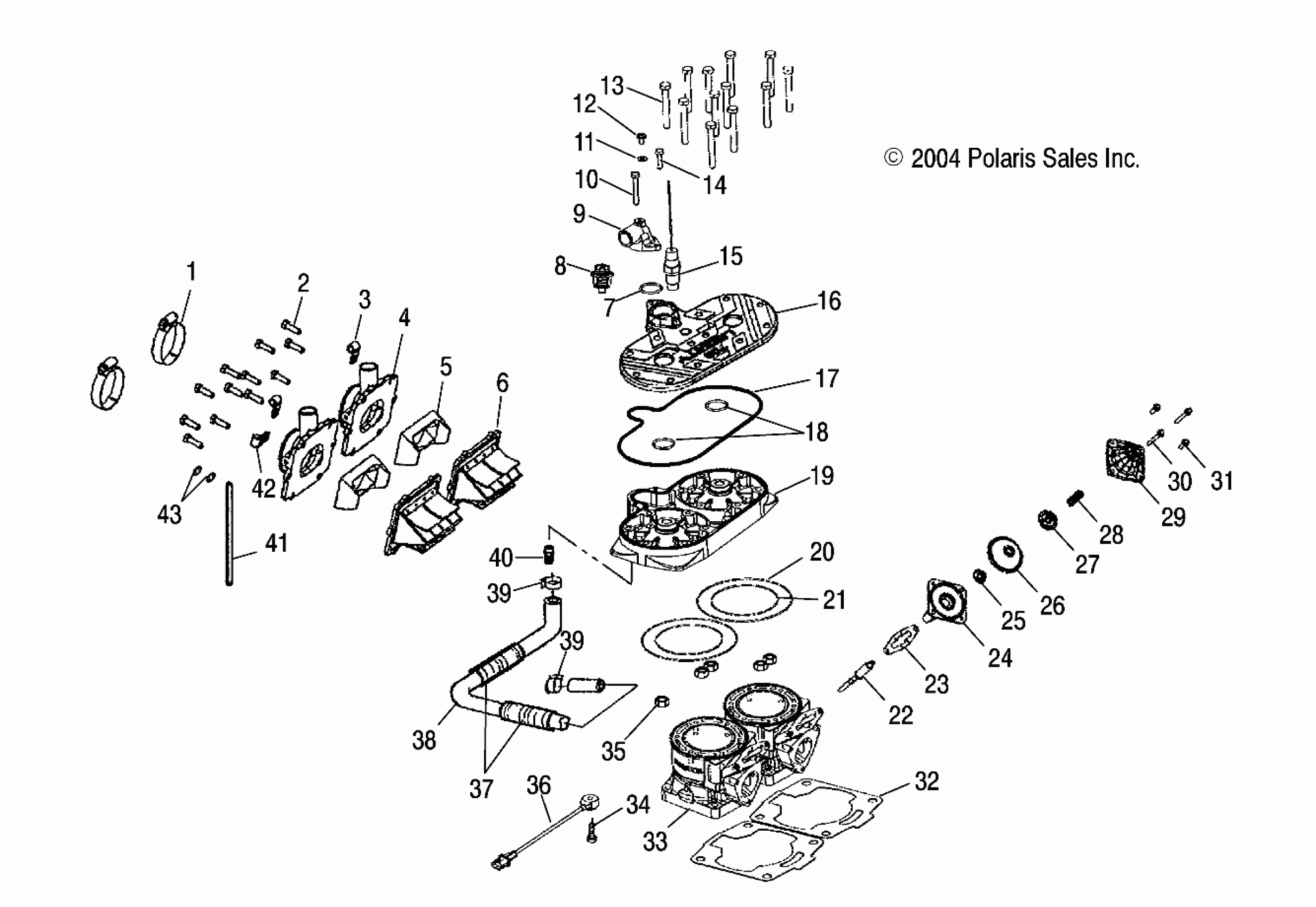

Polaris 700/800 XC SP M-10 F/O - S05NE7CS CYLINDER (700) - S05NP7CS/7CSA/7CSB/NE7CS/7CSA (4993799379D12) Diagram

#

Description
Price

1

Clamp, Hose

7080681

$9.59

2

SCREW

7517398

$3.19

3

CLAMP, HOSE

7080683

$2.39

4

Adapter, Carburetor

1253327

$104.99

5

Stuffer, Reed Block

5433151

Unavailable

6

Asm., Reed Valve

1201825

$134.99

7

O-RING, LIPSEAL

5411521

$24.19

8

Thermostat

7052258

$48.56

9

Cover, Thermostat

5134756

Unavailable

10

Screw

7517950

$5.59

11

WASHER, FLAT

7555998

$1.49

12

SCREW

7517679

$13.59

13

SCREW

7517534

$4.79

14

SCREW

7516822

$2.39

15

Sensor, Thermister

4010398

$36.41

16

Cover, Head, 700 Liberty, Red

5631426-366

Unavailable

17

Seal, Rubber, Head

5411294

Unavailable

18

O-Ring

5410917

$1.49

19

Head, Cylinder

3021425

Unavailable

20

O-Ring

5412232

$7.99

21

O-RING

5410932

$20.22

22

Valve, Guillotine

5133743

$154.99

23

Gasket, Base to Cylinder Exhaust Valve

5812350

$6.46

24

Asm., Base Exhaust Valve, Dome

1202216

Unavailable

25

Washer, Bellows, Exhaust Valve, Dome

5132950

Unavailable

26

Bellows, Exhaust Modified

5410000

$44.51

27

Cap/Nut Bellows, Exhaust Valve

5631662

$33.87

28

Spring, Compression, Green/Yellow

7041786-08

Unavailable

29

ASM., HOUSING W/BUSHING

1202640

$15.99

30

SCREW

7517932

$3.99

31

SCREW

7516820

$5.59

32

Gasket, Cylinder Base

5812362

$12.13

33

Cylinder

3021367

Unavailable

34

SCREW

7517262

$5.59

35

NUT

7547013

$1.99

36

SENSOR, DETONATION

2410369

$76.89

37

Conduit, Flex

5521398-96

Unavailable

38

Hose, Bypass

5411536

Unavailable

39

Clamp, Bypass

7081030

$6.39

39

Clamp, Bypass

7081030

$6.39

40

FITTING, HOSE

7052222

$23.99

41

Retainer

7080654

$18.32

42

Clamp, Hose

7080880

$5.59

43

Washer, Flat

7555836

$3.99
