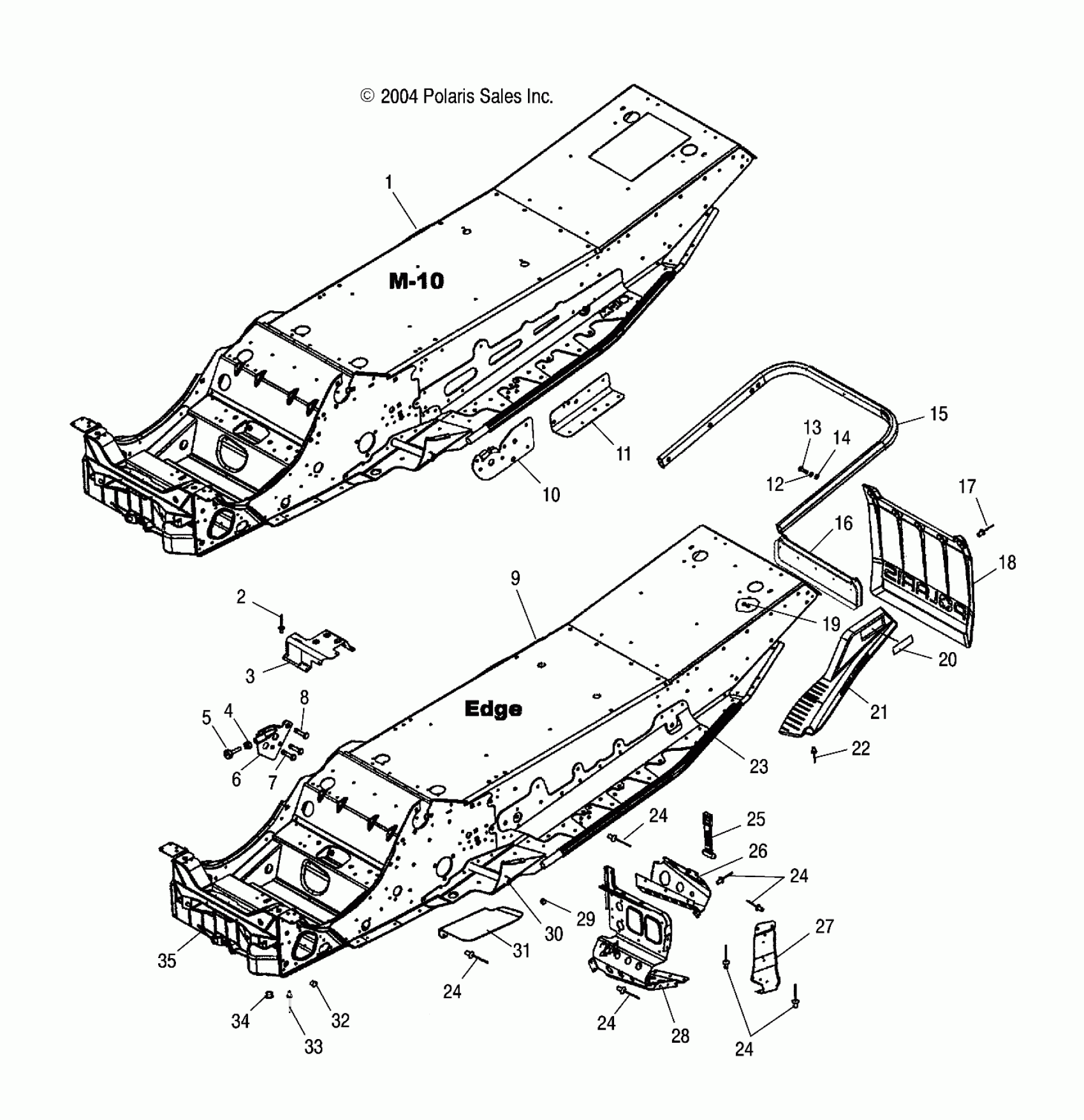

Polaris 700/800 XC SP M-10 F/O - S05NE7CS CHASSIS - S05NE7CS/7CSA/NP7CS/7CSA/7CSB/NE8CS/8CSA/NP8CS/8CSA/8CSB (4993799379A03) Diagram

#

Description
Price

1

Asm., Chassis, M-10, Black/Silver [Incl. 30,35]

1014075-1156

Unavailable

2

Rivet

7621432

$1.49

3

Bracket, Oil Tank/Hose Support

5246330

$13.19

4

NUT

7542404

$1.59

5

Stop, Torque

3110078

$36.41

6

Stop, Torque

1013377

$27.19

7

Screw

7517854

$5.59

8

SCREW

7517632

$5.59

9

Asm., Chassis, Edge, Black/Silver [Incl. 30,35]

1014411-1156

$1,299.99

10

Pad, Suspension, Front, Black, LH [M-10]

5244999-067

Unavailable

10

Pad, Suspension, Front, Black, RH [M-10]

5245001-067

$24.27

11

Brace, Tunnel, Lower, Black, LH [M-10]

5244997-067

$19.83

11

Brace, Tunnel, Lower, Black, RH [M-10]

5244998-067

$19.83

12

WASHER, SPRING LOCK

7552801

$1.59

13

Bolt

7512232

$1.49

14

Washer, Flat

7558301

$1.49

15

Asm., Bumper, Rear

2632165-309

Unavailable

16

Backer, Snow Flap

5812430

Unavailable

17

RIVET

7621418

$1.49

18

Flap, Snow, Edge, Long, Black/White

5434847-1038

$139.99

19

Screw

7517441

$2.39

20

ASM., REFLECTOR, RED

2670133

$5.75

21

Asm., Skirt/Reflector, Snow, Black, LH

2632443-070

$64.75

21

Asm., Skirt/Reflector, Snow, Black, RH

2632444-070

$55.99

21

Skirt, Snow/Reflector, Indy Red, LH

2632443-293

$40.79

21

Skirt, Snow/Reflector, Indy Red, RH

2632444-293

$40.79

22

RIVET

7621472

$1.49

23

Grip, Tunnel Edge, Black, LH

5133971-067

$45.59

23

Grip, Tunnel Edge, Black, RH

5133972-067

$45.59

24

RIVET-3/16-.090-.290

7661637

$1.49

24

RIVET-3/16-.090-.290

7661637

$1.49

24

RIVET-3/16-.090-.290

7661637

$1.49

24

RIVET-3/16-.090-.290

7661637

$1.49

24

RIVET-3/16-.090-.290

7661637

$1.49

25

STRAP-AIRBOX TOP

5433150

$24.27

26

Mount, Console, Toe Clip, Black, LH

5245457-067

Unavailable

26

Mount, Console, Toe Clip, Black, RH

5245458-067

Unavailable

27

Support, Footrest, Black, LH

5246310-067

$19.68

27

Support, Footrest, Black, RH

5246311-067

Unavailable

28

Footrest, Black, LH

5245288-067

Unavailable

28

Footrest, Black, RH

5247205-067

Unavailable

29

Plug, Barbed [M-10]

7081085

$7.27

29

Grommet, Wire, M-10 ACE

5412276

$3.19

30

Kit, Trailing Arm Mount, LH

2202059

$213.00

30

Kit, Trailing Arm Mount, RH

2202598

$124.99

31

Guard, Belt

5246066

Unavailable

32

PLUG, HOLE

7080416

$5.65

33

Rivet

7661639

Unavailable

34

Plug, Hole

7081076

$3.22

35

Bulkhead, Front

5132292

$115.99
