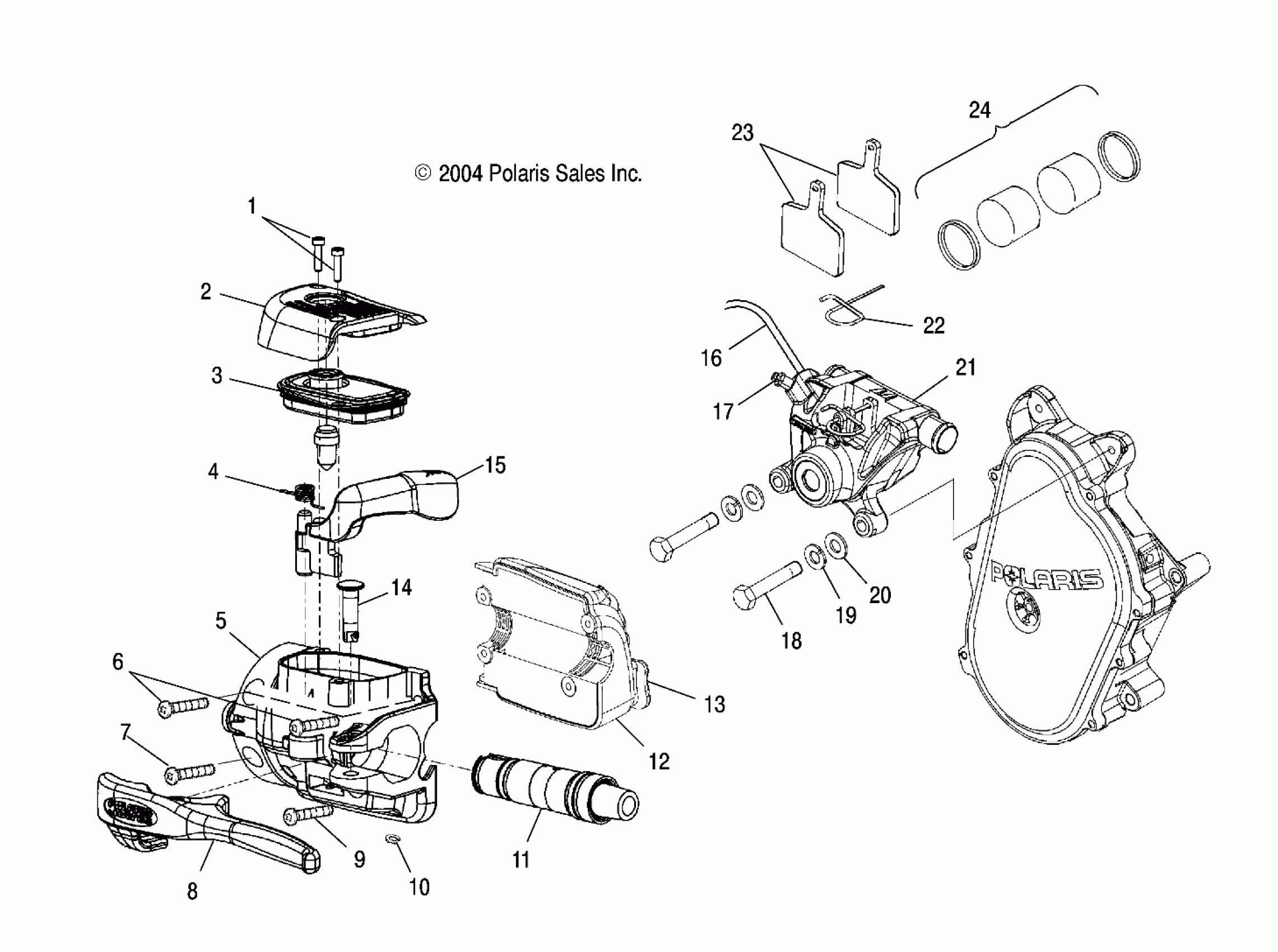

Polaris 700/800 XC SP M-10 F/O - S05NE7CS BRAKE - S05NE7CS/7CSA/NP7CS/7CSA/7CSB/NE8CS/8CSA/NP8CS/8CSA/8CSB (4993799379B08) Diagram

#

Description
Price

1

Kit, Cover Screw

2201254

$19.99

2

Kit, Cover Assembly [Incl. 1,3]

2201255

$89.03

3

GASKET

-------

Unavailable

4

Kit, Park Lever Spring

2201250

$24.27

5

Switch, Brake Light

4010157

Unavailable

5

Kit, Asm., Master Cylinder [Incl. 1-11]

2202146

$304.98

6

Screw

7517441

$2.39

7

Screw

7512078

$1.49

8

Kit, Lever

2201943

$52.60

9

Screw

7517566

$3.99

10

Kit, Snap Ring

2201945

$8.79

11

Kit, Cartridge Subassembly

2201944

Unavailable

12

Asm., Control, LH, E/R, Basic

2010206

Unavailable

12

Asm., Control, LH, E/R, Basic, Shock

2010218

$206.39

13

Button, Switch, HI/LO, LH Control

5433291

Unavailable

14

Kit, Pivot Pin

2201946

$24.27

15

Kit, Park Lever and Spring [Incl. 4]

2201251

$44.51

16

Line, Brake

1910607

Unavailable

17

Kit, Bleeder Fitting

2202205

$36.41

18

Screw

7515534

$4.79

19

Washer, Spring Lock

7552603

$1.49

20

Washer

7556160

$3.99

21

Kit, Asm., Brake Caliper [Incl. 17,22-24]

2202201

Unavailable

22

Kit, Pin Retaining

2202206

$23.99

23

Kit, Brake Pad, Type 81 [Incl. 22]

2202202

$134.99

24

Kit, Seal

2202204

$40.46

24

Kit, Piston/Seal

2202207

$93.08
