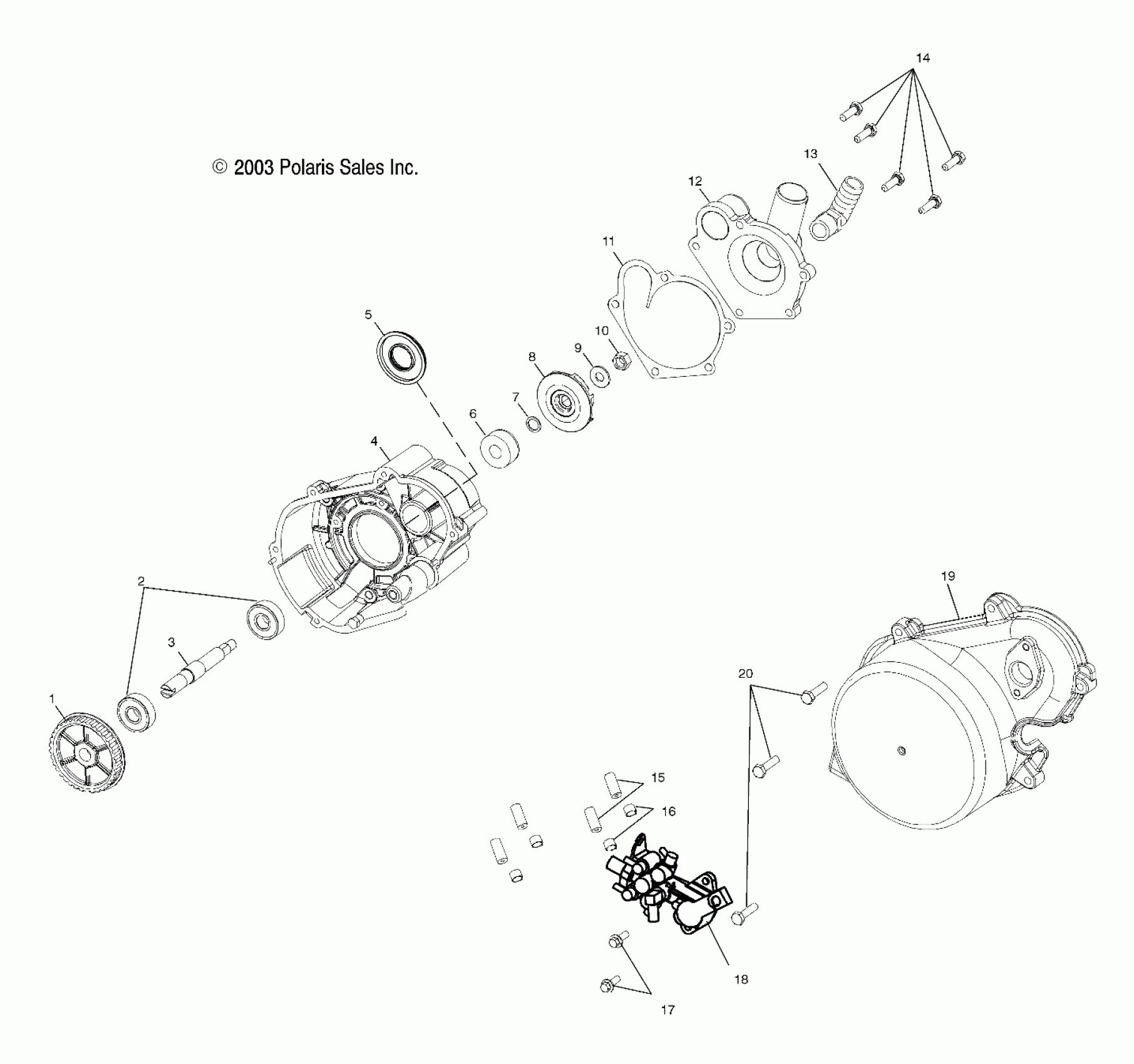

Polaris 700/800 XC EDGE F/O - S04NP7CS WATER PUMP/OIL PUMP (700) - S04NP7CS/7CSA/7CSB/7CSC-S04NE7CS (4988438843D13) Diagram

#

Description
Price

1

Pulley

3021044

$40.46

2

Bearing, Ball

3514311

Unavailable

3

Shaft

5132273

$94.99

4

HOUSING, IGNITION [SEE MAGNETO, 700 PG. E3, REF. 13]

-------

Unavailable

5

Seal

3610044

$24.27

6

Seal, Water Pump

3610067

$44.51

7

Washer, Flat

7556006

$3.99

8

Impeller

5432330

$23.99

9

Washer, Flat

7555874

$2.39

10

NUT, NYLOK

7546804

$1.49

11

Gasket, Cover

5811627

$8.89

12

Cover

5630864

$53.17

13

Fitting, 90 Degree

7052221

Unavailable

14

SCREW

7516822

$2.39

15

Line, Fuel

8450061-82

Unavailable

16

Clamp

7080603

$1.59

17

Screw

7516607

$10.39

18

Pump, Oil

2540102

Unavailable

19

HOUSING, IGNITION [SEE MAGNETO, 700 PG. E3, REF. 13]

-------

Unavailable

20

Screw

7516823

$3.19
