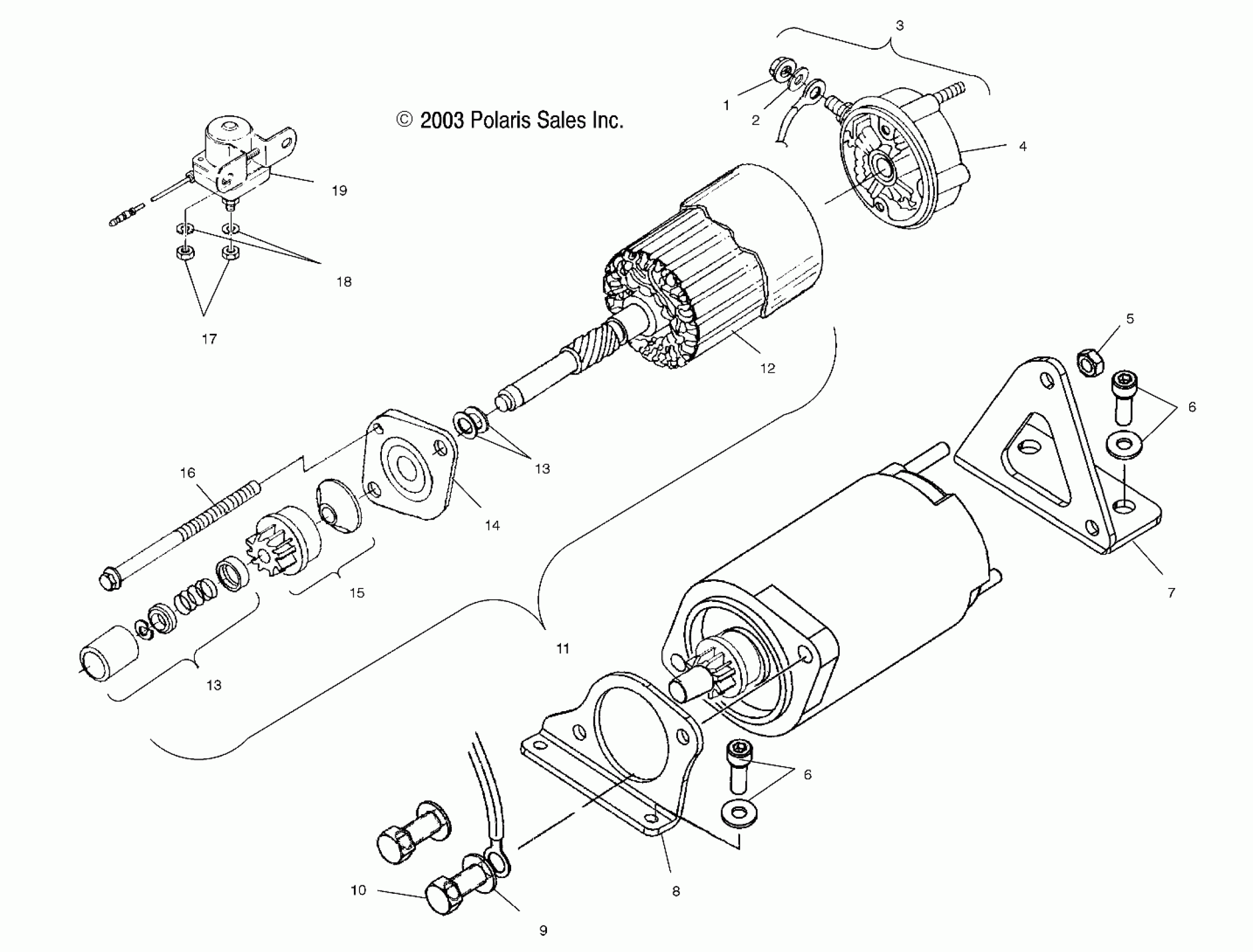

Polaris 700/800 XC EDGE F/O - S04NP7CS STARTING MOTOR - S04NP7CS/7CSA/7CSB/7CSC/8CS/8CSA/8CSB/8CSC-S04NE7CS/8CS (4988438843E13) Diagram

#

Description
Price

1

NUT

7542105

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

Kit, Commutator Cap [Incl. 4]

2200758

$82.39

4

Kit, Brush & Spring

2200759

$59.99

4

ASM., BRUSH & SCREW

-------

Unavailable

4

ASM., BRUSH

-------

Unavailable

4

BUSHING, INSULATION

-------

Unavailable

4

WASHER, INSULATION

-------

Unavailable

4

Nut

-------

Unavailable

5

Nut

7542153

$1.59

6

Screw

7517957

Unavailable

6

Screw

7517957

Unavailable

7

Bracket, Starter, Rear

5245780

Unavailable

8

Bracket, Starter, Front

5245781

Unavailable

9

Washer, Spring Lock

7552603

$1.49

10

Screw

7512492

$1.49

11

Motor, Starter, Domestic

4170006

Unavailable

12

Kit, Armature

2200756

$169.99

13

Kit, Drive Hardware

2200755

Unavailable

13

WASHER, CURVED SPRING

-------

Unavailable

13

Washer, Thrust

-------

Unavailable

13

SPACER

-------

Unavailable

13

SPRING, ANTIDRIFT

-------

Unavailable

13

PINION, STOP

-------

Unavailable

13

RING, LOCK

-------

Unavailable

13

COVER, DUST

-------

Unavailable

13

Kit, Drive Hardware

2200755

Unavailable

13

WASHER, CURVED SPRING

-------

Unavailable

13

Washer, Thrust

-------

Unavailable

13

SPACER

-------

Unavailable

13

SPRING, ANTIDRIFT

-------

Unavailable

13

PINION, STOP

-------

Unavailable

13

RING, LOCK

-------

Unavailable

13

COVER, DUST

-------

Unavailable

14

Kit, Drive Cap

2200757

$59.99

15

Kit, Drive

2200754

Unavailable

15

PLATE, DRIVE

-------

Unavailable

15

PINION

-------

Unavailable

16

Kit, Screw

2200753

$29.99

16

BOLT, THRU

-------

Unavailable

17

Nut

3082939

Unavailable

18

Washer, Spring

3080077

$2.39

19

Switch, Magnetic [Incl. 17,18]

4010930

$60.70
