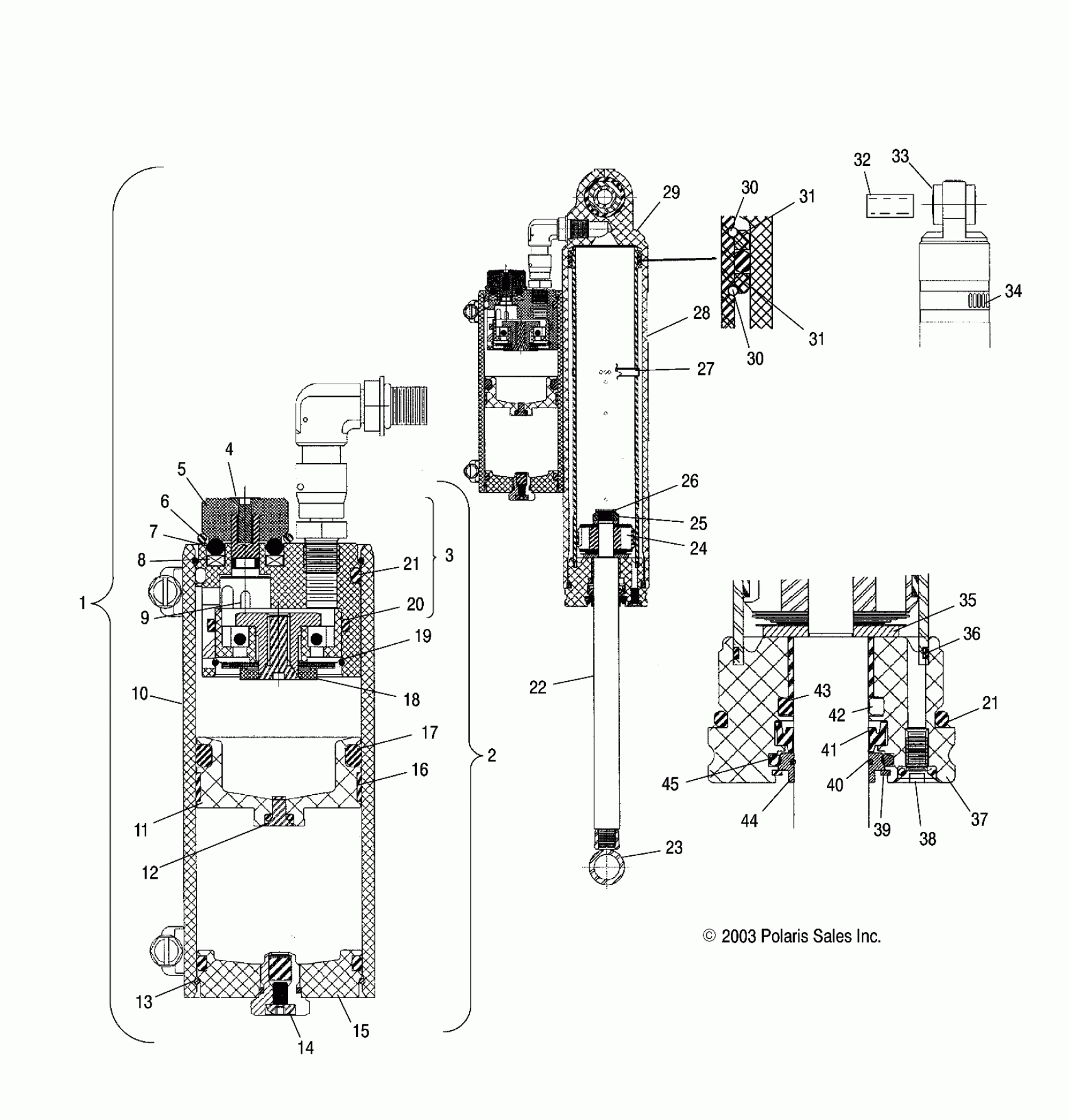

Polaris 700/800 XC EDGE F/O - S04NP7CS SHOCK (REAR TRACK)(EDGE) - S04NP7CS/7CSA/7CSB/7CSC/8CS/8CSA/8CSB/8CSC (4988438843C11) Diagram

#

Description
Price

1

Shock, Rear Track, PSCA [Incl. All]

7042212

Unavailable

2

Asm., Reservoir [Incl. 3-21]

1500329

Unavailable

3

Asm., Compression Damping Housing [Incl. 4-9,20,21]

1500555

$122.84

4

Screw

1500223

$2.23

5

Knob, 8 Click

1500521

$36.31

6

O-Ring

1500253

$1.49

7

Ball

1500226

$1.75

8

Spring

1500225

$3.32

9

Drum, Compression Damping

1500254

$40.79

10

Reservoir

1500325

Unavailable

11

Piston, Floating

1500235

$49.59

12

Screw

1500161

Unavailable

13

RING, RETAINING

1500236

$9.59

14

Screw

1500232

Unavailable

15

Cap, Reservoir End

1500514

$35.51

16

Bearing

1500230

$31.99

17

O-Ring

1500229

$4.92

18

Plate, Damping

1500324

$50.00

19

Ring, Retaining

1500233

$3.75

20

O-Ring

1500227

$1.49

21

O-Ring

1500228

Unavailable

21

O-Ring

1500228

Unavailable

22

Shaft

1500322

$71.99

23

Eyelet

1500302

$49.21

24

Bearing, Piston

1500002

$31.99

24

Piston

1500489

$12.39

25

Plate, Backup

1500015

$6.76

26

Nut, Lock

1500016

$12.79

27

Valve, Check

1500306

Unavailable

28

Body, Internal

1500331

$205.99

29

Asm., Body [Incl. 3]

1500480

$148.79

30

RING, RETAINING, WIRE

1500097

$4.79

30

RING, RETAINING, WIRE

1500097

$4.79

31

Collar

1500336

$27.78

31

Collar

1500336

$27.78

32

Sleeve .568 ID

1500311

Unavailable

33

BUSHING

1500307

$7.99

34

Clamp, Hose

1500565

$18.39

35

Plate, Top-Out

1500017

$20.22

36

O-RING

1500459

$5.65

37

Asm., Bearing [Incl. 21,35-45]

1500553

$121.99

38

O-Ring

1500022

Unavailable

38

Screw

1500295

Unavailable

39

Ring, Snap, Internal

1500552

$1.99

40

O-Ring

1500554

$2.15

41

U-Cup

1500256

$19.99

42

O-Ring

1500549

$2.38

43

Bearing

1500260

$4.79

44

Scraper, FIST

1500550

$13.39

45

O-Ring

1500551

$1.49
