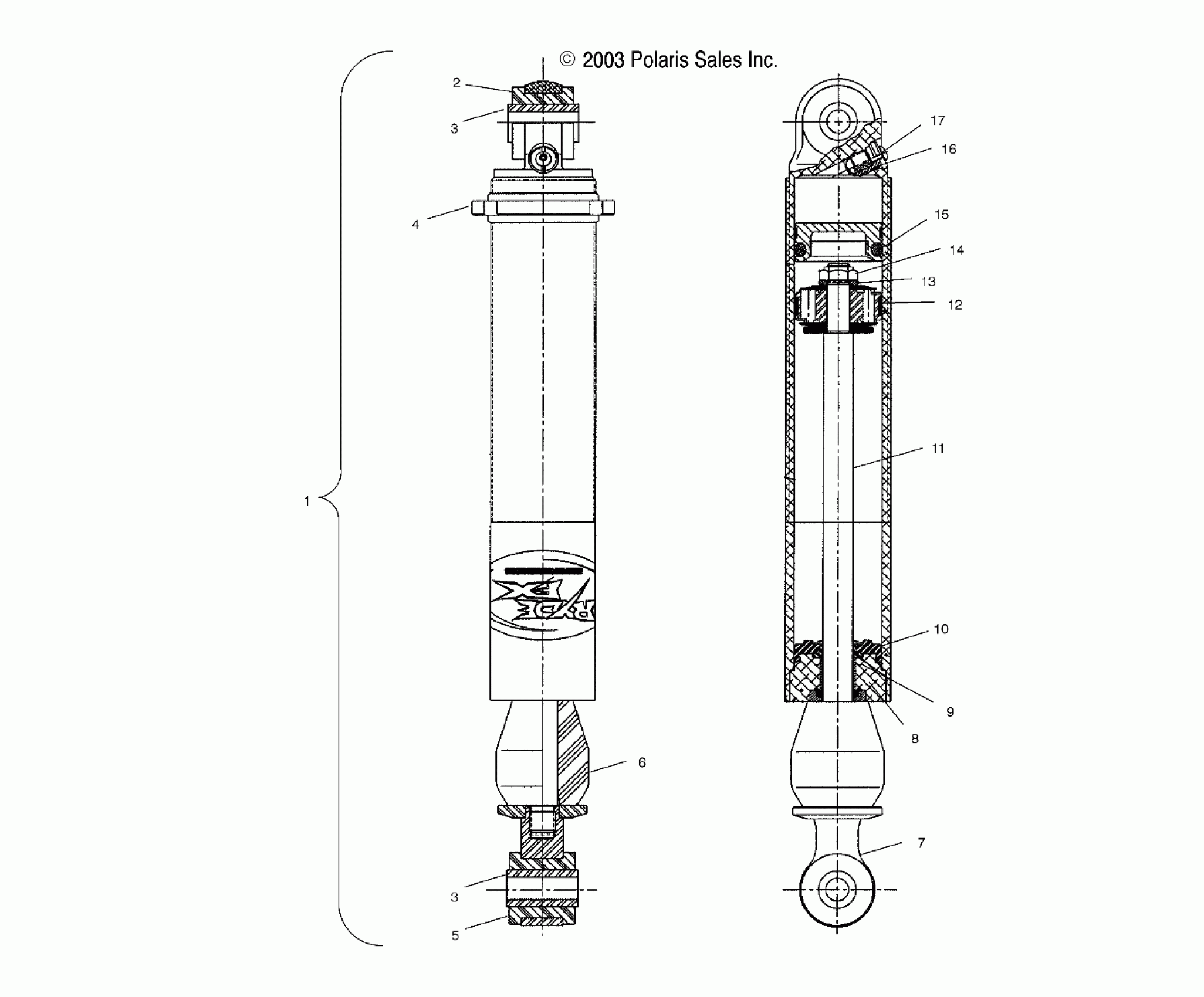

Polaris 700/800 XC EDGE F/O - S04NP7CS SHOCK IFS - S04NP7CS/7CSA/7CSB/7CSC/8CS/8CSA/8CSB/8CSC-S04NE7CS/8CS (4988438843C07) Diagram

#

Description
Price

1

Shock, IFS, IFP [Incl. All]

7041976

Unavailable

2

Bushing

1700036

$7.99

3

Sleeve

1700037

Unavailable

3

Sleeve

1700037

Unavailable

4

Nut, Spring Retainer

1700033

$23.81

5

Bushing

1700072

$9.59

6

Bumper

1700042

Unavailable

7

Mount, Upper

1700010

Unavailable

8

Asm., Cylinder Head

1700007

$106.49

9

Seal, Rod

1700021

$20.22

10

Seal, Cap

1700022

Unavailable

11

Shaft

1700025

$93.08

12

Washer, Back-Up

1700078

$9.59

12

Band, Wear

1700031

$28.32

12

Washer, Top-Out

1700077

$10.39

12

Asm., Piston

1700109

Unavailable

13

Kit, Piston Valving

2200618

Unavailable

14

Nut

1700057

$9.59

15

IFP

1700023

$45.59

15

Band, Wear

1700032

$24.99

15

O-Ring

1700048

$11.60

16

O-Ring, Pressure Valve

1700047

$7.13

16

Asm., Pressure Valve

1700076

Unavailable

17

Screw, Valve

1700056

$6.94
