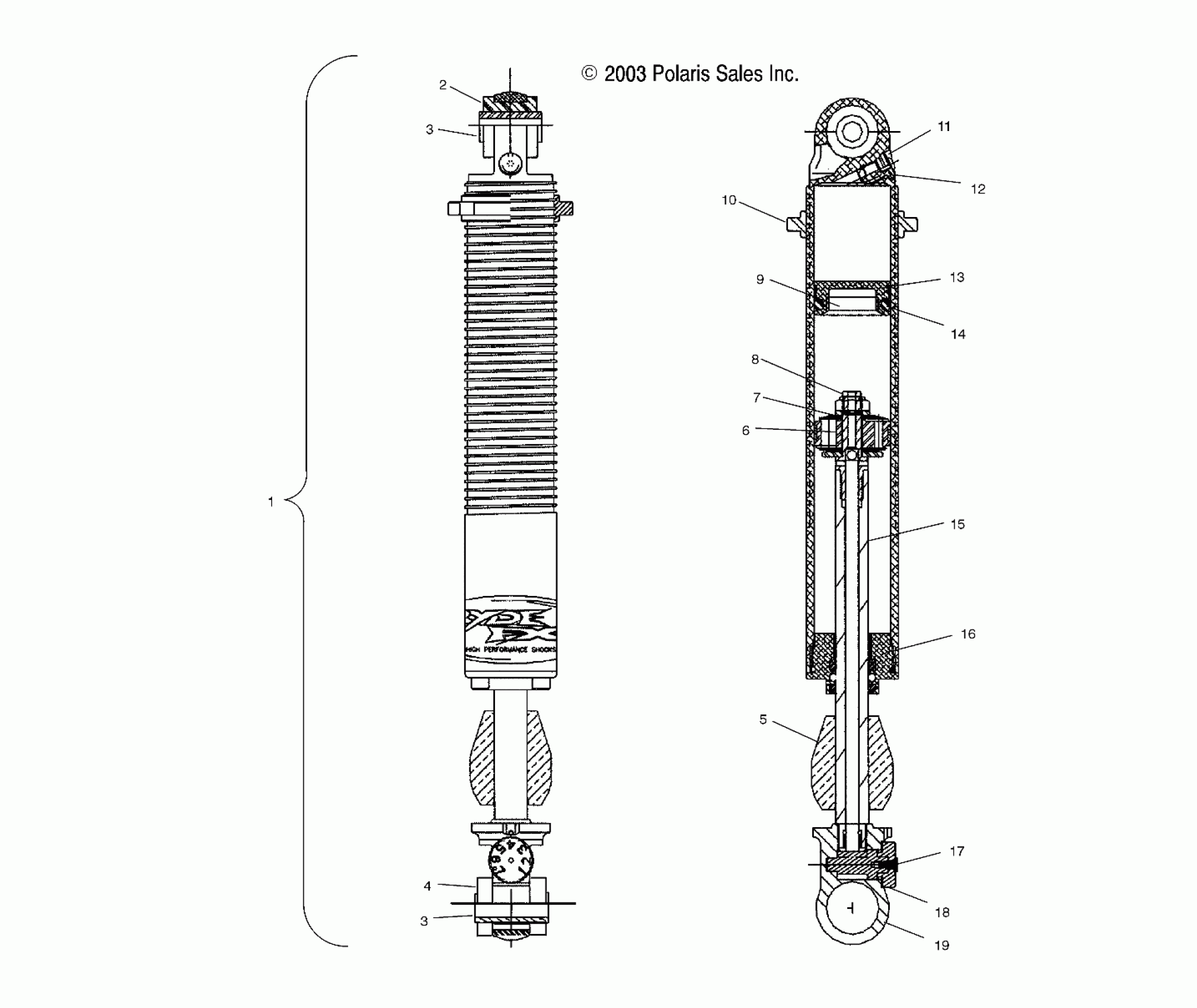

Polaris 700/800 XC EDGE F/O - S04NP7CS SHOCK IFS (COMPRESSION ADJUST) - S04NP7CS/7CSA/7CSB/7CSC/8CS/8CSA/8CSB/8CSC (4988438843C08) Diagram

#

Description
Price

1

Shock, IFS

7042211

Unavailable

2

Bushing

1700036

$7.99

3

Sleeve

1700037

Unavailable

3

Sleeve

1700037

Unavailable

4

Bushing

1700072

$9.59

5

Bumper, Compression

1700042

Unavailable

6

Washer, Back-Up

1700078

$9.59

6

Band, Wear

1700031

$28.32

6

Washer, Top-Out

1700077

$10.39

6

Asm., Piston

1700109

Unavailable

7

Kit, Piston Valving

2200618

Unavailable

8

Nut

1700057

$9.59

9

IFP

1700023

$45.59

10

Nut, Spring Retainer

1700210

$41.19

11

Screw, Valve

1700056

$6.94

12

Asm., Pressure Valve

1700184

Unavailable

13

Band, Wear, IFP

1700032

$24.99

14

O-Ring, IFP

1700048

$11.60

15

Shaft

1700209

Unavailable

16

O-Ring, External

1700051

Unavailable

16

Scraper, Rod

1700019

$27.79

16

O-Ring, Internal

1700046

Unavailable

16

Seal, Rod

1700020

$27.79

16

Asm., Cylinder Head

1700206

$216.17

16

BEARING, DU

-------

Unavailable

17

Screw

1700192

$10.63

18

Knob, Clicker

1700193

$58.39

19

Asm., Upper Mount [Incl. 17,18]

1700208

Unavailable
