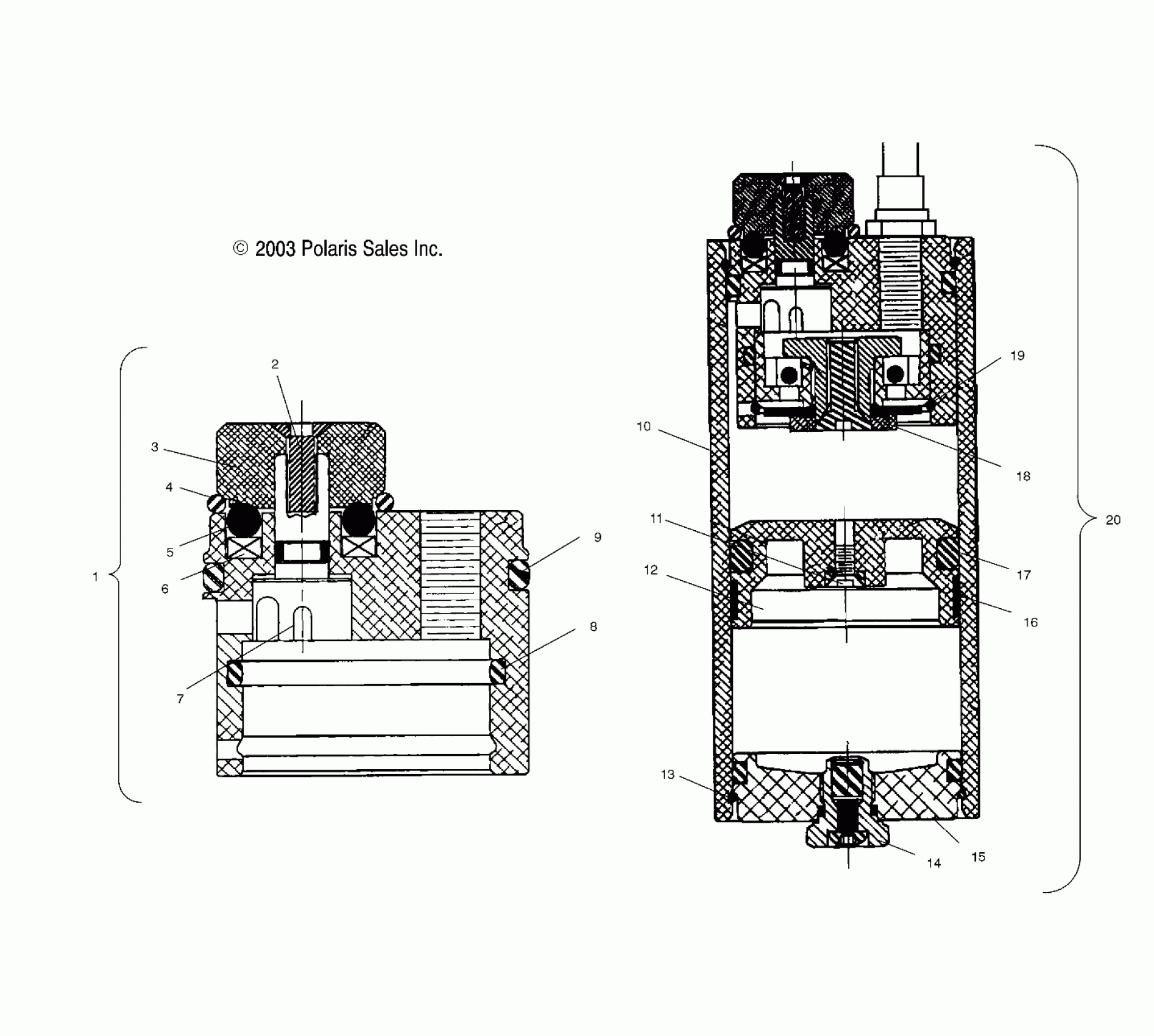

Polaris 700/800 XC EDGE F/O - S04NP7CS SHOCK COMPRESSION DAMPING RESERVOIR (EDGE) - S04NP7CS/7CSA/7CSB/7CSC/8CS/8CSA/8CSB/8CSC (4988438843C13) Diagram

#

Description
Price

1

Asm., Compression Damping Housing [Incl. 2-9]

1500263

$103.19

2

Screw

1500223

$2.23

3

Knob, Damping Adjust

1500224

$30.95

4

O-Ring

1500253

$1.49

5

Ball

1500226

$1.75

6

Spring

1500225

$3.32

7

Drum, Compression Damping

1500254

$40.79

8

O-Ring

1500227

$1.49

9

O-Ring

1500228

Unavailable

10

Reservoir

1500325

Unavailable

11

Screw

1500161

Unavailable

12

Piston, Floating

1500235

$49.59

13

RING, RETAINING

1500236

$9.59

14

Screw

1500232

Unavailable

15

Cap, Reservoir End

1500231

Unavailable

16

Bearing

1500230

$31.99

17

O-Ring

1500229

$4.92

18

Plate, Damping

1500324

$50.00

19

Ring, Retaining

1500233

$3.75

20

Asm., Reservoir [Incl. 2-19]

1500329

Unavailable
