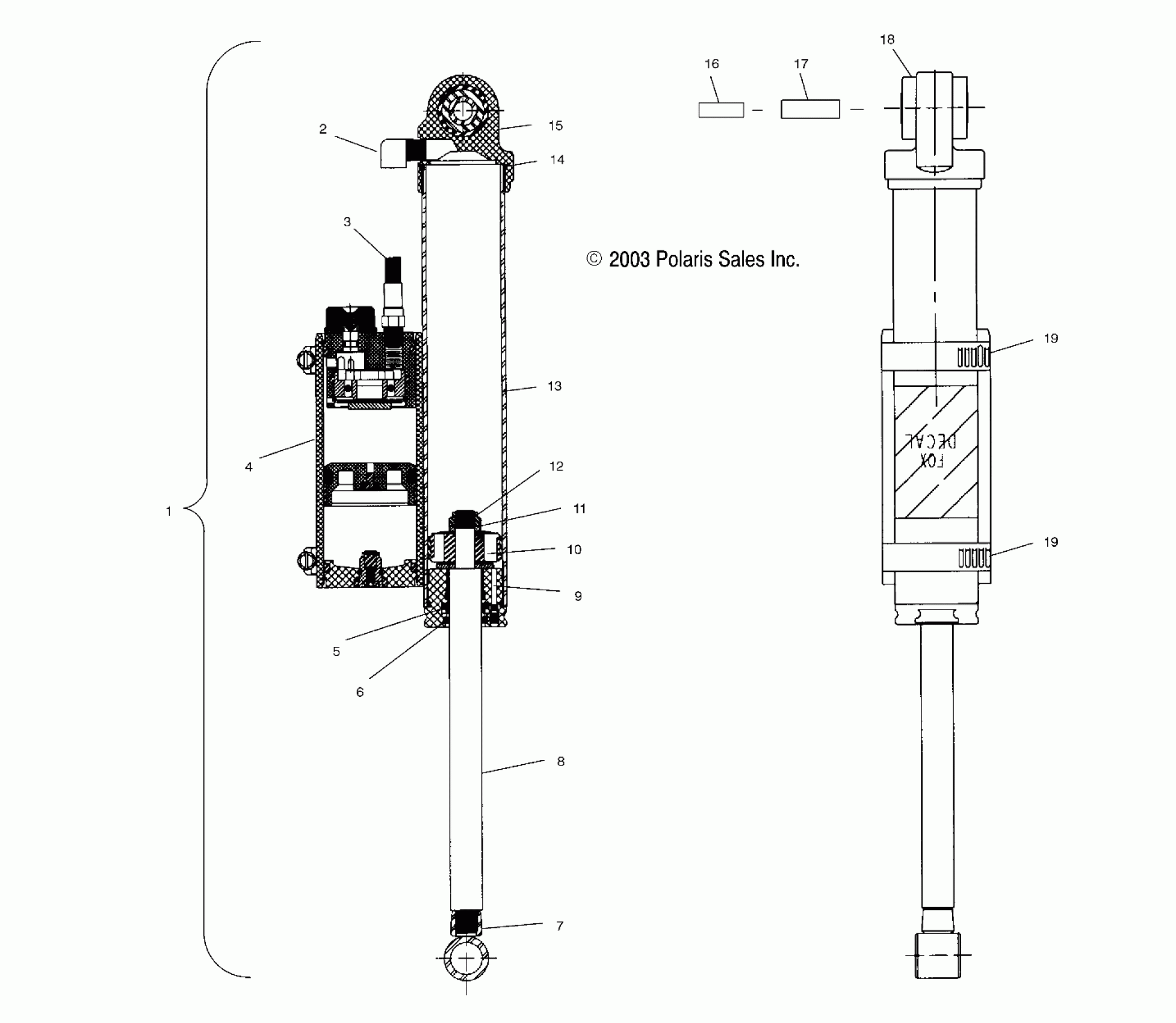

Polaris 700/800 XC EDGE F/O - S04NP7CS SHOCK AND RESERVOIR (REAR TRACK)(EDGE) - S04NP7CS/7CSA/7CSB/7CSC/8CS/8CSA/8CSB/8CSC (4988438843C10) Diagram

#

Description
Price

1

Shock, Rear Track

7042196

Unavailable

2

Elbow, 90 Degree

1500157

Unavailable

3

Hose

1500326

Unavailable

4

ASM., RESERVOIR [SEE SHOCK COMPRESSION DAMPING RESERVOIR [EDGE] PG. C13]

-------

Unavailable

5

U-Cup

1500256

$19.99

6

Wiper

1500257

Unavailable

7

Eyelet

1500302

$49.21

8

Shaft

1500322

$71.99

9

Bearing

1500328

$82.92

10

Kit, Piston Valving

2200618

Unavailable

11

Bumper, Rubber, Top Out

1500074

$5.65

12

Nut

1500016

$12.79

13

Body

1500319

$58.39

14

O-Ring

1500108

$10.99

15

Cap, Body

1500244

$83.79

16

Sleeve

1500327

$15.87

17

Sleeve

1500311

Unavailable

18

BUSHING

1500307

$7.99

19

Clamp, Hose

1500330

$9.52

19

Clamp, Hose

1500330

$9.52
