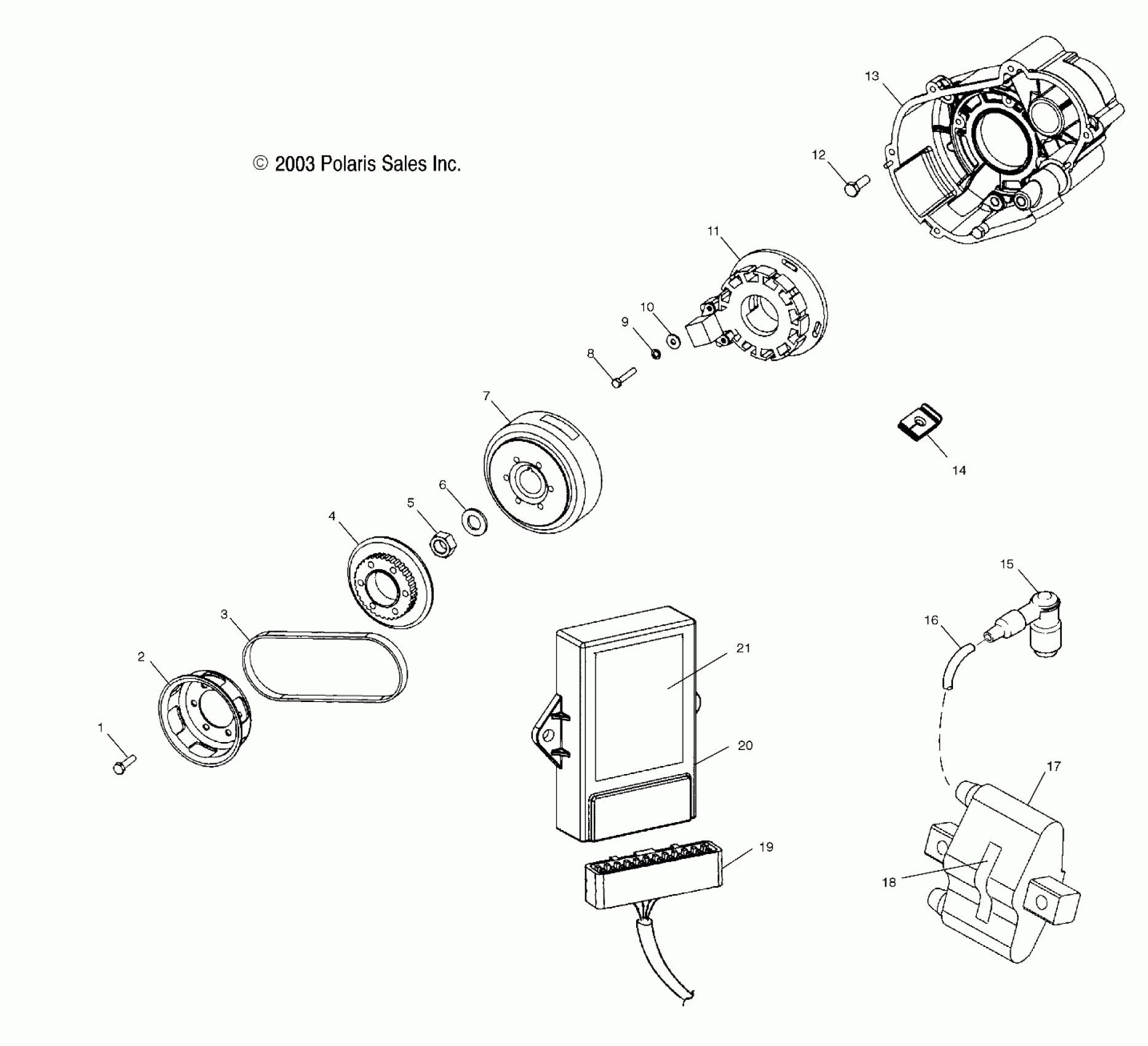

Polaris 700/800 XC EDGE F/O - S04NP7CS MAGNETO (800) - S04NP8CS/8CSA/8CSB/8CSC-S04NE8CS (4988438843E011) Diagram

#

Description
Price

1

Screw

7517998

$3.19

2

Pulley, Starting

3021144

Unavailable

3

Kit, Waterpump Belt

2201821

$71.41

4

Pulley, Water Pump Drive

5630824

Unavailable

5

Nut, Hex

7546909

Unavailable

6

WASHER

7555907

$5.59

7

Flywheel

4010677

$203.99

8

Screw

7517246

$2.63

9

Washer, Lock

7555969

Unavailable

10

Washer, Flat

7555970

Unavailable

11

Stator

4010297

Unavailable

12

SCREW

7516734

$3.19

13

Housing, Ignition

1202161

$231.19

14

Grommet

5411178

$5.03

15

Cap, Spark Plug

4020159

Unavailable

16

Wire, Ignition

4010124-305

Unavailable

17

Coil, Ignition

4060229

Unavailable

18

Decal, Spark Plug

7077026

$2.95

19

Harness, Ignition

4010872

Unavailable

20

Kit, CDI [Incl. 19, Nyogel & Decal]

2202523

Unavailable

21

Decal, DET

7170413

Unavailable
