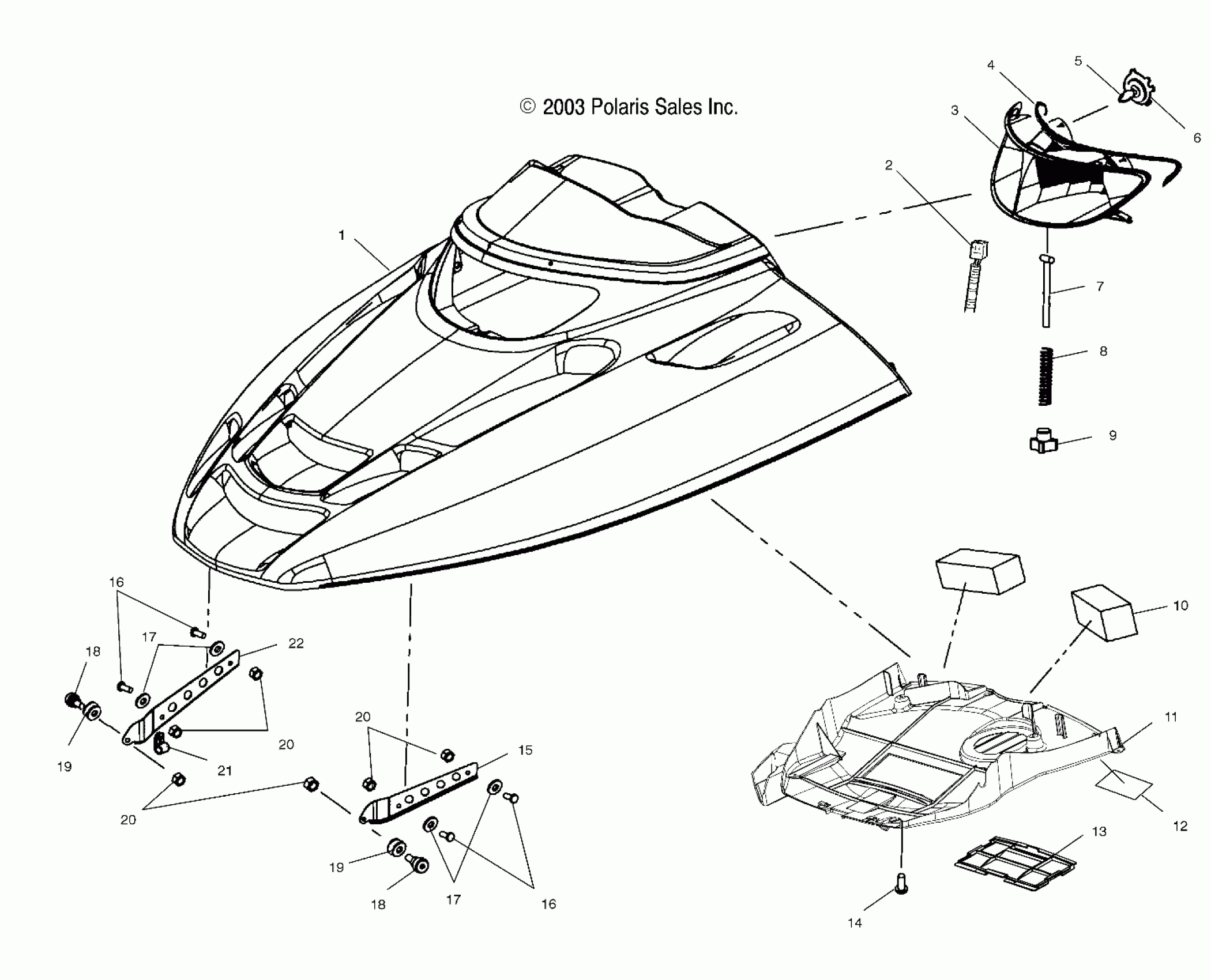

Polaris 700/800 XC EDGE F/O - S04NP7CS HOOD - S04NP7CS/7CSA/7CSB/7CSC/8CS/8CSA/8CSB/8CSC-S04NE7CS/8CS (4988438843A11) Diagram

#

Description
Price

1

Asm., Hood, Blue/White

2632521-1159

$670.63

1

Asm., Hood, Black/Silver

2632521-1158

$794.99

2

Harness, Headlight

2461015

$66.39

3

Asm. Headlamp [Incl. Bulbs]

2410132

Unavailable

4

Seal, Headlight

5812450

$44.99

5

BULB, HEADLIGHT

2870448

$24.99

6

Retainer, Headlamp Bulb

4032063

Unavailable

7

Bolt, Tee Adjust

7517872

Unavailable

8

Spring, Headlight Adjust

7041954

$3.22

9

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

10

Foam, Prefilter

5811793

$24.27

11

Foil, Tape

5811948

Unavailable

11

Plenum w/Foil, Intake, Hood

2632491

$64.75

11

Foil, Plenum

5812324

Unavailable

12

Decal, Suspension Set-Up, M-10

7170931

Unavailable

12

Decal, Suspension Set-Up, Edge

7170740

Unavailable

12

Decal, Suspension Set-Up, M-10 ACE

7170226

Unavailable

13

Cover, Access, Headlight

5433660

$24.27

14

SCREW

7512068

$2.39

15

Hinge, Upper, LH

5243567-067

Unavailable

16

BOLT

7512240

$3.99

16

BOLT

7512240

$3.99

17

Washer, Flat

7558301

$1.49

17

Washer, Flat

7558301

$1.49

18

Bolt

7512113

$3.99

18

Bolt

7512113

$3.99

19

Spacer

5332403

$4.84

19

Spacer

5332403

$4.84

20

Nut, Nylok

7542122

$1.49

20

Nut, Nylok

7542122

$1.49

20

Nut, Nylok

7542122

$1.49

21

CLAMP-CABLE

7080367

$2.39

22

Hinge, Upper, RH

5243568-067

Unavailable
