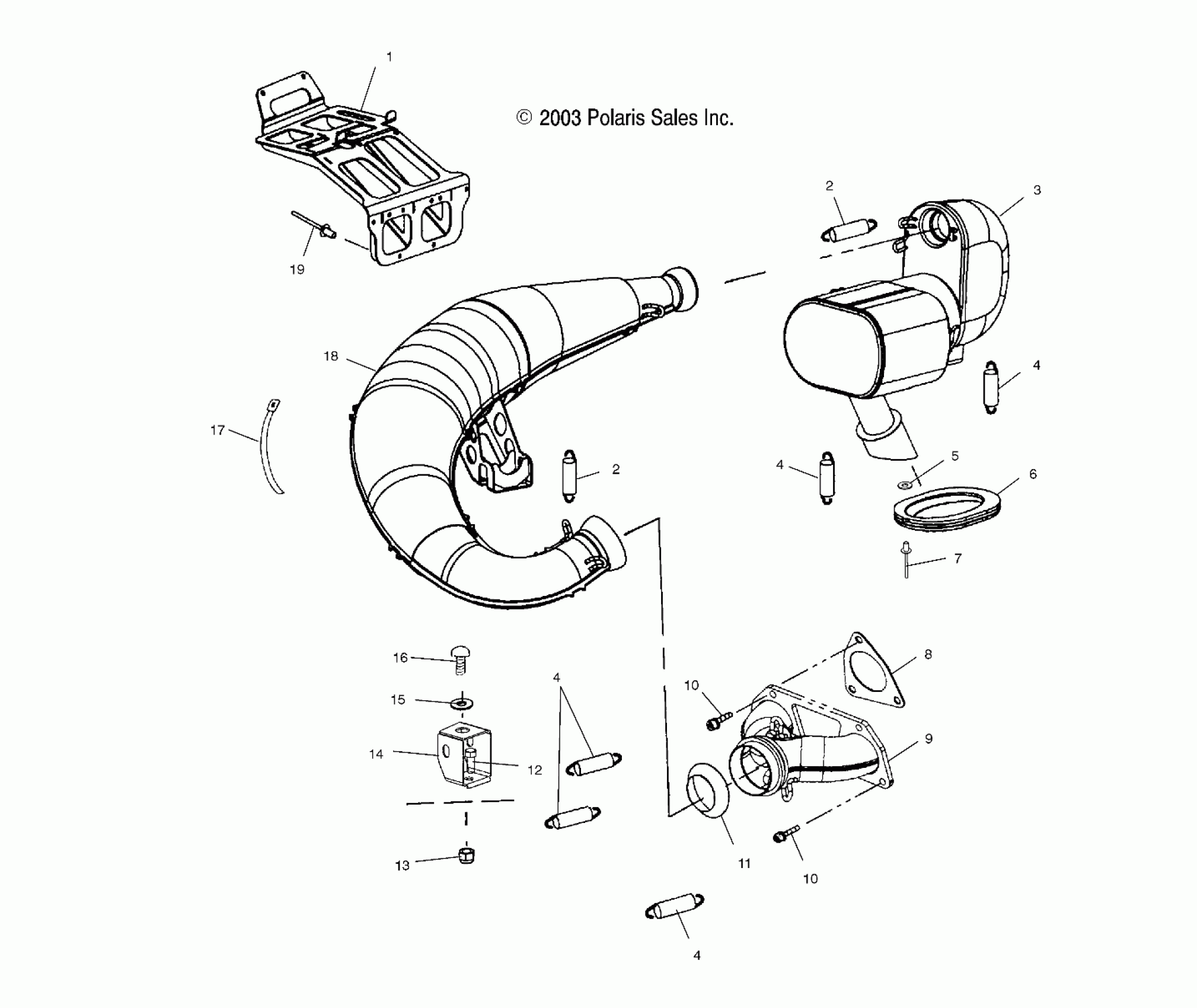

Polaris 700/800 XC EDGE F/O - S04NP7CS EXHAUST - S04NP7CS/7CSA/7CSB/7CSC/8CS/8CSA/8CSB/8CSC-S04NE7CS/8CS (4988438843D09) Diagram

#

Description
Price

1

Bracket, Chassis/Resonator

1261296-029

Unavailable

2

Spring

7042029

$4.84

2

Spring

7042029

$4.84

3

Resonator [700]

1261130-029

$649.99

3

Resonator [800]

1261177-029

Unavailable

4

SPRING-EXHAUST

7041687

$5.65

4

SPRING-EXHAUST

7041687

$5.65

4

SPRING-EXHAUST

7041687

$5.65

4

SPRING-EXHAUST

7041687

$5.65

5

Washer

7555904

$1.49

6

Boot, Exhaust Outlet

5411684

Unavailable

7

RIVET

7621467

$1.49

8

Gasket, Exhaust

5811799

Unavailable

9

Manifold

1261124-029

$216.99

10

Screw

7517322

$2.39

10

Screw

7517322

$2.39

11

Seal, Exhaust

3610046

$36.41

12

SCREW

7517935

$2.39

13

Nut, Flange

7547180

$2.39

14

Bracket, Chassis/Pipe

5245498

$59.99

15

WASHER

7556004

$7.19

16

Dampener, Vibration

5411576

$7.99

17

Clamp, .44 x 3.69

7080740

$13.19

17

Clamp, .44 x 4.25

7080741

$19.99

17

Clamp, .44 x 6.38

7080742

$15.03

18

Asm., Tuned Pipe

1261123

$355.99

18

Cover, Tuned Pipe, Top

5245929

$70.39

18

Cover, Tuned Pipe, Bottom

5245930

$53.59

18

Matte, Sound, Top

5830215

$73.81

18

Matte, Sound, Bottom

5830216

Unavailable

19

RIVET-3/16-.090-.290

7661637

$1.49
