Partiron

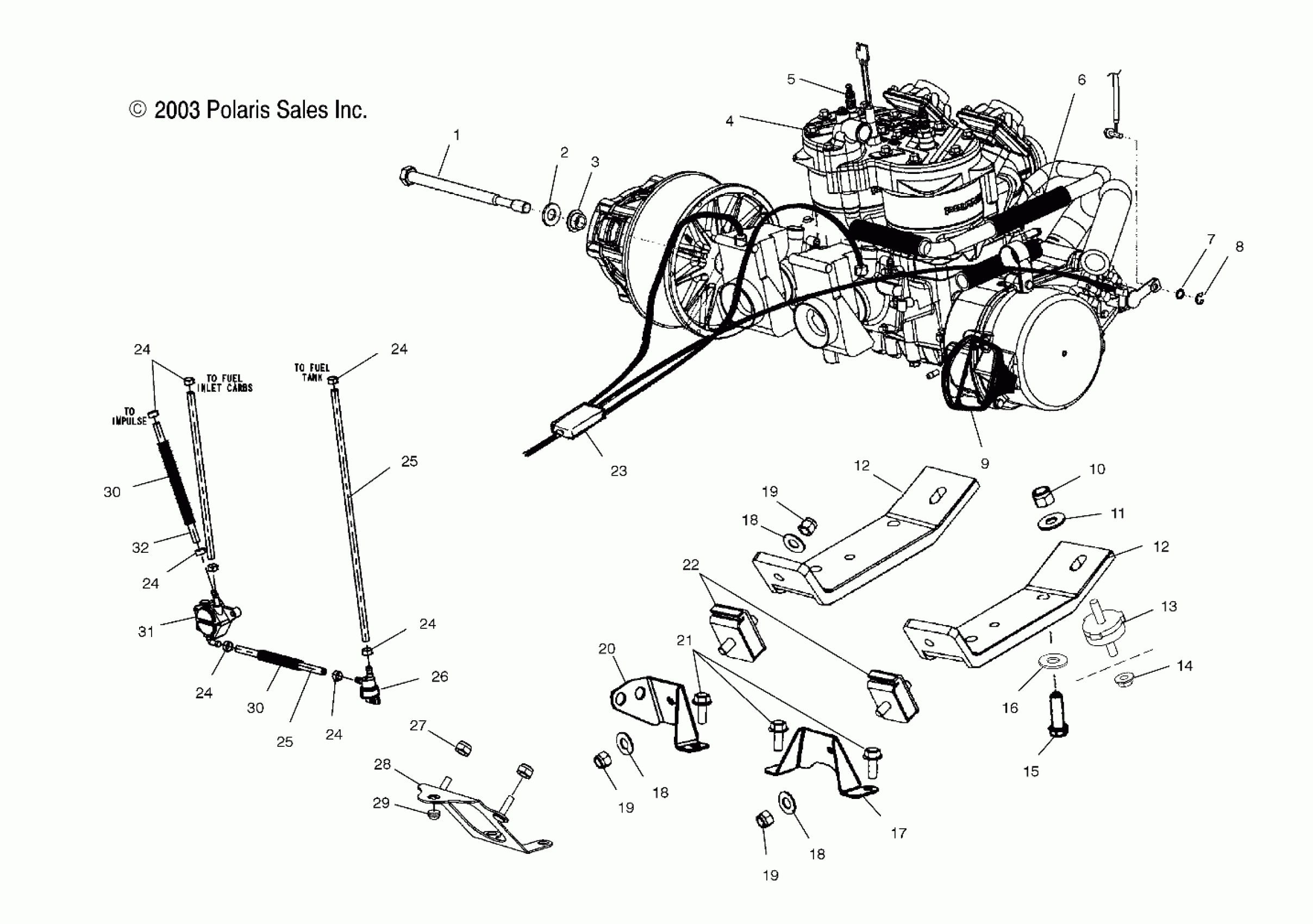

Polaris 700/800 XC EDGE F/O - S04NP7CS ENGINE MOUNTING - S04NP7CS/7CSA/7CSB/7CSC/8CS/8CSA/8CSB/8CSC-S04NE7CS/8CS (4988438843D10) Diagram

#

Description
Price

1

Screw

7517501

Unavailable

2

WASHER

7556003

$6.39

3

WASHER-CLUTCH RET,M14

5132441

$23.99

4

Kit, Short Block, S707003 [700] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is requir

2202513

Unavailable

4

Kit, Short Block, S807003 [800] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is requir

2202517

Unavailable

5

Spark Plug, RN57YCC, Champion

3070190

$3.99

6

Conduit

5521398-13

Unavailable

7

Washer, Nylon

7555944

$3.99

8

E-Ring

7710427

Unavailable

9

Handle, Recoil

5431499-070

$15.48

10

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

11

Washer, Flat

7555893

$1.49

12

Strap, Engine Mount, LH

5245462

$39.99

12

Strap, Engine Mount, RH

5246381

$32.15

12

Strap, Engine Mount, LH

5245462

$39.99

12

Strap, Engine Mount, RH

5246381

$32.15

13

Mount, Engine

3021220

Unavailable

14

NUT, FLANGED

7547180

$2.39

15

Screw

7512539

$3.99

16

Washer, Spring Lock

7553101

$3.99

17

Bracket, Engine Mount, RH

5245044

Unavailable

18

Washer, Flat

7555806

$1.49

18

Washer, Flat

7555806

$1.49

18

Washer, Flat

7555806

$1.49

19

NUT, FLEXLOC

7547008

$6.39

19

NUT, FLEXLOC

7547008

$6.39

19

NUT, FLEXLOC

7547008

$6.39

20

Bracket, Engine Mount, LH

1013397

$24.27

21

Screw

7517854

$5.59

22

Mount, Engine

3021206

$60.70

23

Cable, Throttle

7081051

$64.75

24

HOSE CLAMP, RED

7080003

$1.49

24

HOSE CLAMP, RED

7080003

$1.49

24

HOSE CLAMP, RED

7080003

$1.49

24

HOSE CLAMP, RED

7080003

$1.49

24

HOSE CLAMP, RED

7080003

$1.49

24

HOSE CLAMP, RED

7080003

$1.49

25

Line, Fuel

8350017-600

Unavailable

25

Line, Fuel

8350017-600

Unavailable

26

Valve, Fuel

1253424

$44.99

27

Nut, Nylok

7542122

$1.49

28

Bracket, Fuel Pump

1014392

$12.39

29

Plug

5410012

Unavailable

30

TUBING, CONVOLUTED

8360052-25

Unavailable

30

TUBING, CONVOLUTED

8360052-25

Unavailable

31

Pump, Fuel

2520275

$111.99

32

Line, Fuel

8450040-600

Unavailable
