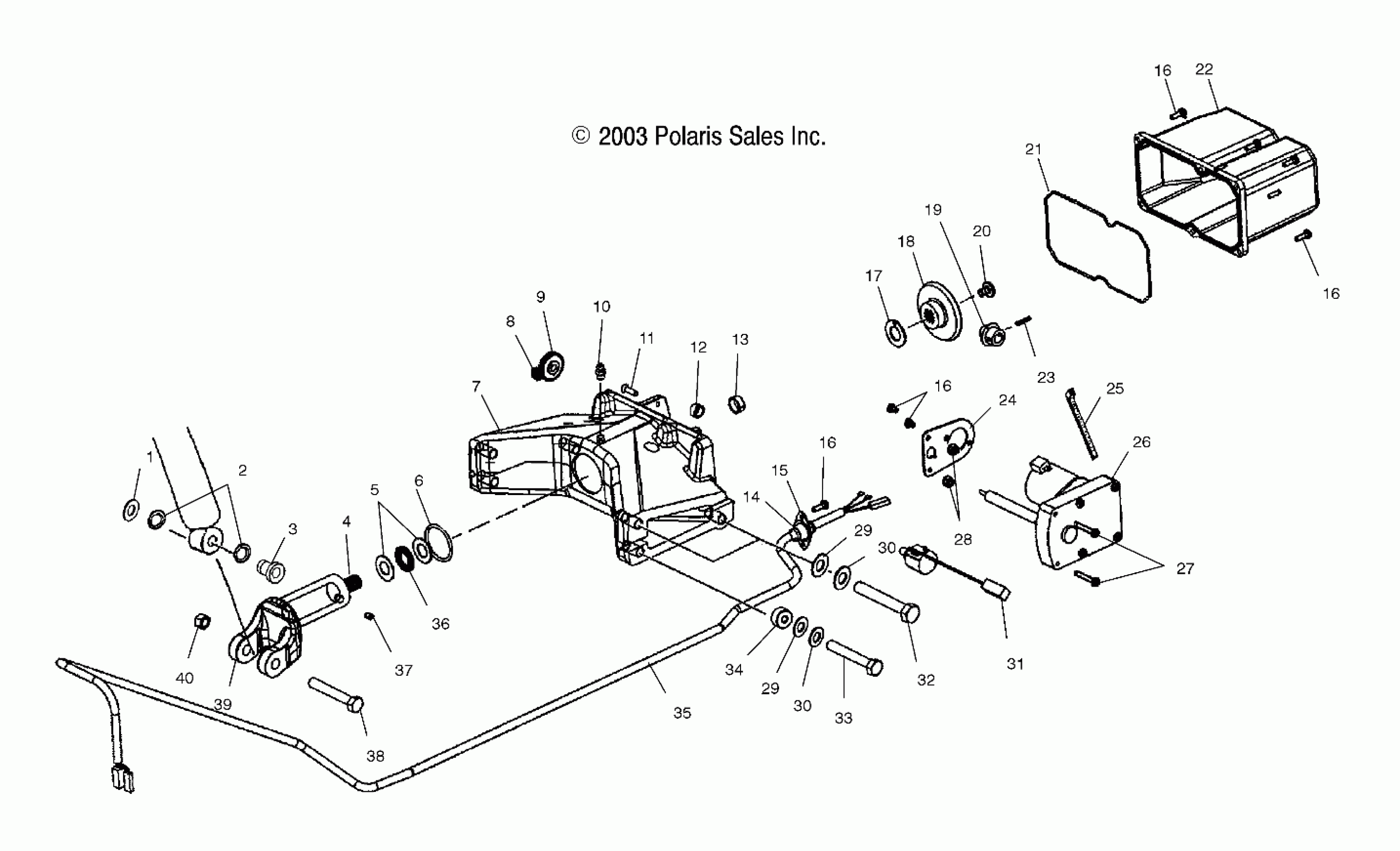

Polaris 700/800 XC EDGE F/O - S04NP7CS ELECTRIC MODULE (M-10)(ACE) - S04NE7CS/8CS (4988438843C06) Diagram

#

Description
Price

1

Washer

5133403

Unavailable

2

O-RING

5411092

$1.60

3

Bushing

5133402

$11.99

4

Shaft, Screw

5133159

$69.99

5

Bearing, Raceway

3514388

Unavailable

6

O-RING

5412229

$1.60

7

Asm., Casting [Incl. 6,10,12,13]

1541692

$288.99

8

Gear, 12T

5434728

Unavailable

9

Gear, 32T

5434727

$2.87

10

FITTING-LUBRICATION 1/4-28

7080424

$4.79

11

Screw

7518088

$1.49

12

Bearing

3514385

Unavailable

13

Bearing

3514403

$7.99

14

Grommet

5434492

$3.81

15

Plate, Grommet

5222998

$4.95

16

Screw

7511866

$4.79

16

Screw

7511866

$4.79

16

Screw

7511866

$4.79

16

Screw

7511866

$4.79

17

Washer, Thrust

7556201

Unavailable

18

Gear, Bevel, Large

3221135

Unavailable

19

Gear, Bevel, Small

3221136

Unavailable

20

Screw

7518152

$3.19

21

Seal, Cover

5434293

$7.38

22

Cover, Motor

5434292

$16.47

23

Pin, Drivlok

7661161

$1.49

24

Plate, Support, Motor

5246536

$6.63

25

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

26

Motor

4010596

$271.99

27

Screw

7518087

$7.99

28

Nut, Nylok

7547004

$4.79

29

WASHER

7556042

Unavailable

29

WASHER

7556042

Unavailable

30

Washer, Lock

7552603

$1.49

30

Washer, Lock

7552603

$1.49

31

Potentiometer, M-10 ACE

4010780

$162.99

32

SCREW

7518006

$3.19

33

SCREW

7518005

$3.19

34

Spacer

5133351

$7.99

35

Harness, Wire (Incl. 14)

2461104

Unavailable

36

Bearing, Thrust

3514387

$6.39

37

Screw, Set

7518037

$1.49

38

Screw

7515438

$4.79

39

Clevis

5133325

$149.99

40

NUT

7542439

$1.49
