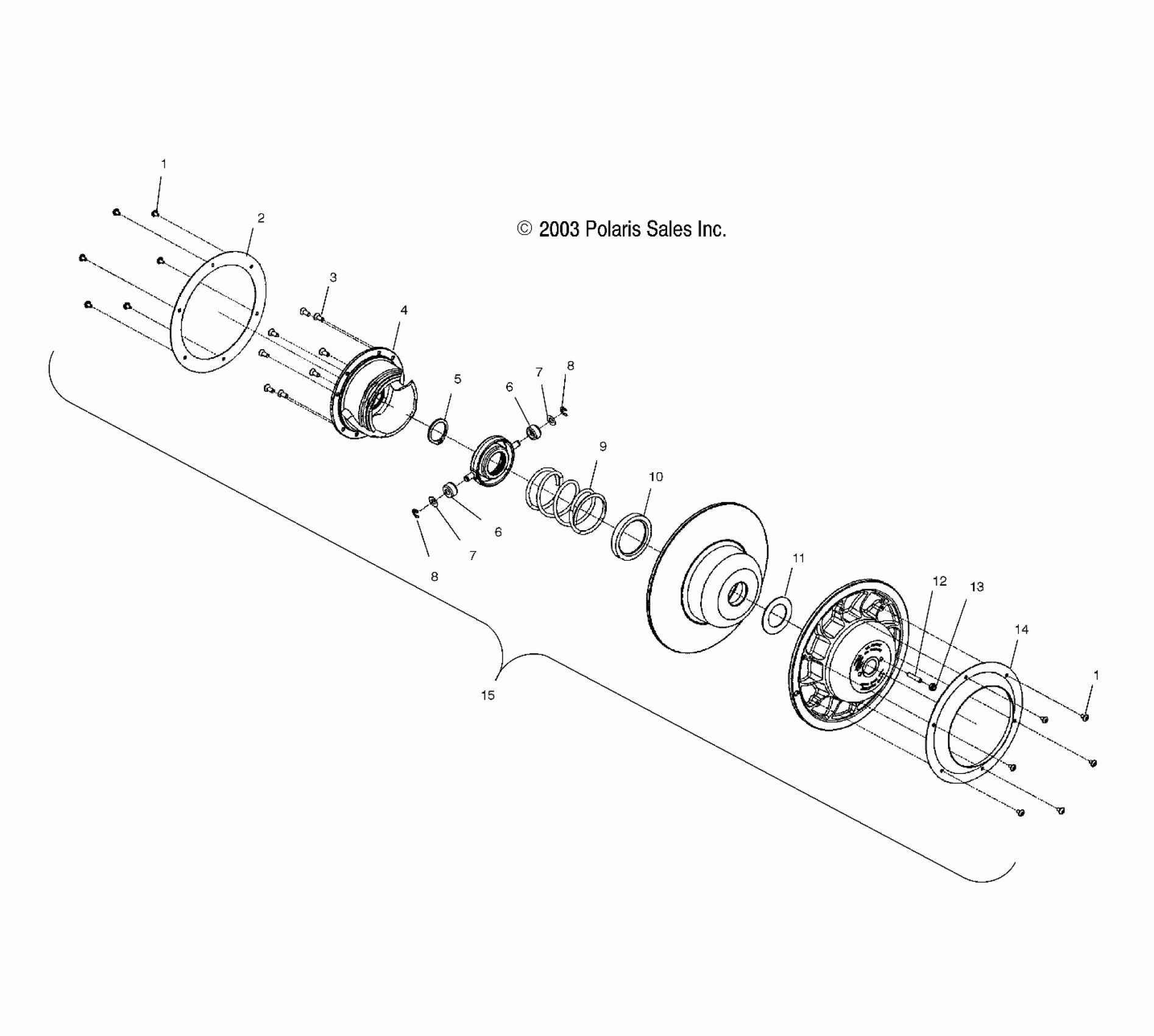

Polaris 700/800 XC EDGE F/O - S04NP7CS DRIVEN CLUTCH - S04NP7CS/7CSA/7CSB/7CSC/8CS/8CSA/8CSB/8CSC-S04NE7CS/8CS (4988438843D05) Diagram

#

Description
Price

1

Screw

7518023

$4.03

1

Screw

7518023

$4.03

2

Plate, Windage

5246216

$20.48

3

Screw, Cap

3233996

Unavailable

4

Ramp, Driven, 62/42-.46 [700]

5133773

Unavailable

4

Ramp, Driven, 62/46-.46 [800]

5133772

Unavailable

5

RING, RETAINING

7710522

$13.59

6

ROLLER

5434534

$48.56

6

ROLLER

5434534

$48.56

7

WASHER, THRUST

7556226

$5.65

7

WASHER, THRUST

7556226

$5.65

8

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

8

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

9

Spring, Driven Clutch, Black/Red

7042198

Unavailable

10

WASHER, THRUST

7556227

$23.99

11

Spacer

3234033

Unavailable

12

Screw

7518024

Unavailable

13

Nut, FLEXLOC

7542103

$5.59

14

Plate, Windage

5246217

Unavailable

15

Asm., Driven Clutch, 211 [Incl. 1,3,5-8,10-13]

1322321

Unavailable
