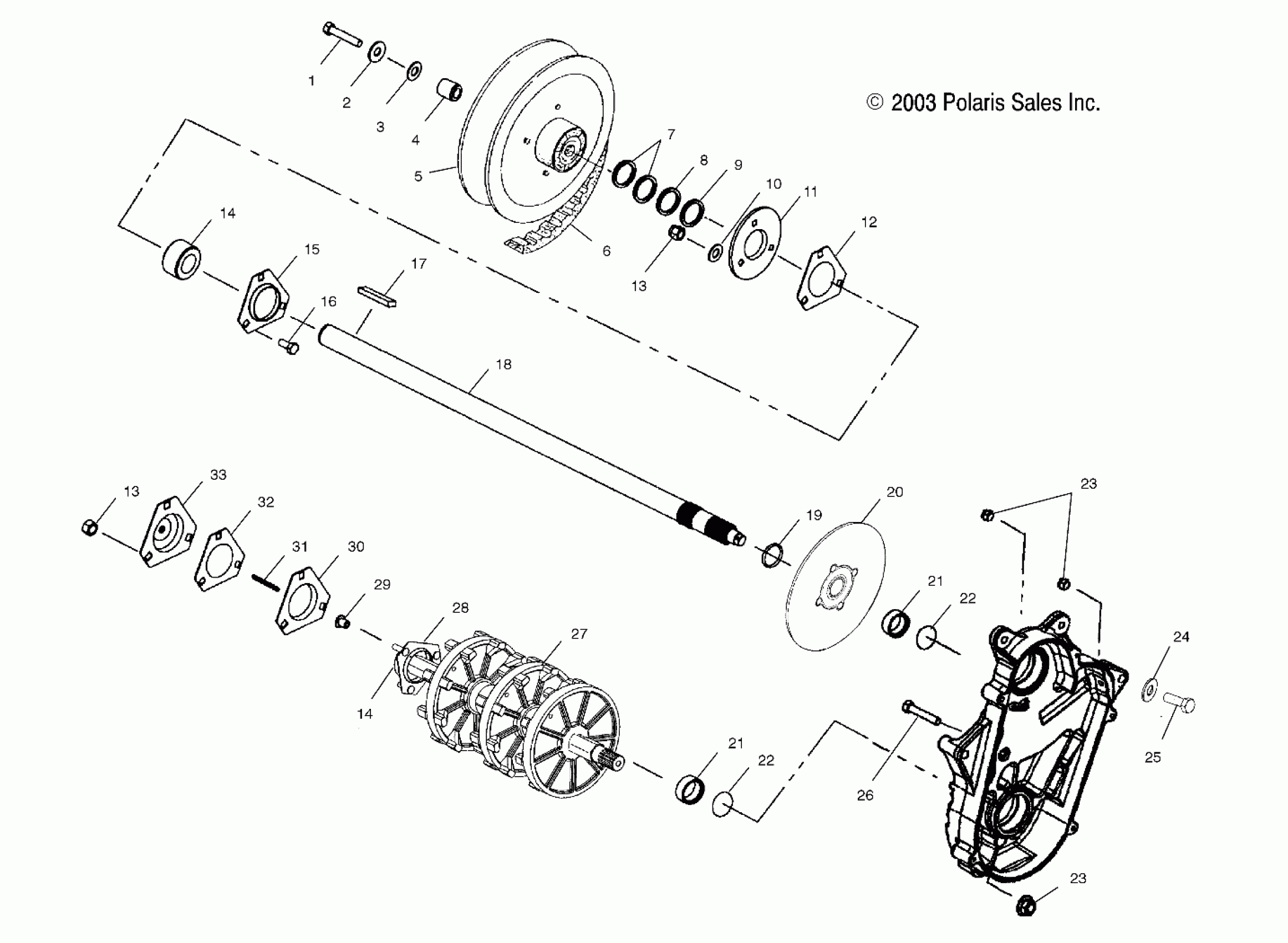

Polaris 700/800 XC EDGE F/O - S04NP7CS DRIVE TRAIN - S04NP7CS/7CSA/7CSB/7CSC/8CS/8CSA/8CSB/8CSC-S04NE7CS/8CS (4988438843D07) Diagram

#

Description
Price

1

Screw [Electric Start]

7515369

$4.79

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

Spacer [Electric Start]

5020913

Unavailable

5

ASM., DRIVEN CLUTCH, 221 [SEE DRIVEN CLUTCH PG. D5, REF. 15]

-------

Unavailable

6

Belt, Drive

3211080

$139.99

7

Washer [Manual Start]

7555917

$2.39

8

WASHER

7555864

Unavailable

9

Bushing

7556509

Unavailable

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

Fitting, Lubrication

7080561

$4.79

11

Flangette w/Grease Fitting

5241359

$32.37

12

Gasket, Jackshaft

5811095

$2.41

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

BEARING

3514525

$31.99

14

BEARING

3514525

$31.99

15

FLANGETTE

5222751

$16.44

16

Bolt, Carriage

7512377

$4.79

17

Key

7721116

$12.94

18

Asm., Jackshaft [Incl. 14,19]

1332220

$158.73

19

RING, RETAINING

7710422

$3.99

20

Kit, Brake Disc

2202493

Unavailable

21

SLEEVE, SEAL

5020588

$23.99

21

SLEEVE, SEAL

5020588

$23.99

22

O-RING

5410613

$1.99

22

O-RING

5410613

$1.99

23

Nut

7542423

$3.99

23

Nut

7542423

$3.99

24

Washer

7558403

$4.79

25

Screw

7518002

$3.03

26

Bolt, Carriage

7515428

$4.79

27

Asm., Drive Shaft [Incl. 28,29]

1590347

Unavailable

28

ASM., FLANGETTE W/SCREWS

1012945

$114.99

29

Bushing, Speedometer, Metal

3280019

$11.99

30

Flangette

5243529

$13.75

31

Key, Speedometer, Square

3280017

$13.75

32

Gasket, Drive Adaptor

5830012

$2.41

33

Adaptor w/Zerk, Drive

3280116

$101.17
