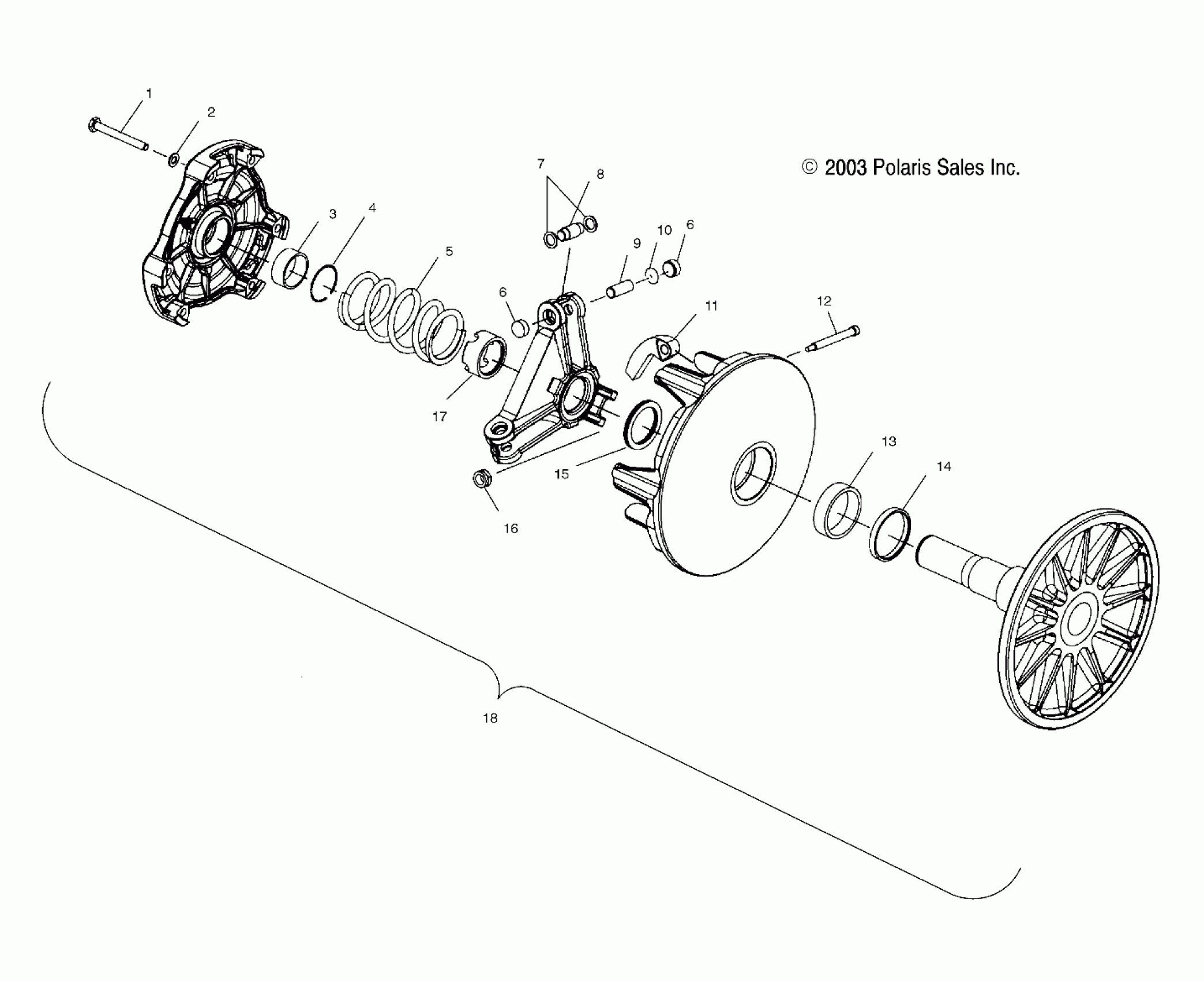

Polaris 700/800 XC EDGE F/O - S04NP7CS DRIVE CLUTCH (MANUAL START MODELS) - S04NP7CS/7CSA/7CSB/7CSC/8CS/8CSA/8CSB/8CSC-S04NE7CS/8CS (4988438843D03) Diagram

Kit, Wide Roller Spider Rebuild (700)(Incl. 6-10,12)

2201169

$169.98

Kit, Wide Roller Spider Rebuild (800)(Incl. 6-10,12)

2202376

$238.79

Bolt

7512265

$3.99

WASHER, SPRING LOCK

7552801

$1.59

Bearing, Cover [700]

3576516

$28.32

BEARING COVER GARMAX [800]

3514347

$36.41

RING-RETAINING,COVER

7710417

$1.49

SPRING, CLUTCH, BLACK/GREEN

7042083

$56.65

Button, Guide [700]

5430445

$6.39

Button, Guide [800]

5434188

$12.79

Button, Guide [700]

5430445

$6.39

Button, Guide [800]

5434188

$12.79

WASHER,MULTILUBE

5430945

$1.59

ASM-ROLLER AND BUSHING

1321622

$32.37

Pin, Roller [700]

5133079

$6.39

Pin, Roller [800]

5133054

Unavailable

Kit - Shim, Drive Clutch

2200387

$24.27

Weight/Bushing, 10-62 [700]

1321586

$40.46

Weight/Bushing, 10-64 [800]

1321585

$40.46

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

Bearing, Sleeve

3576502

$23.99

INSERT-MOVEABLE

5010188

$7.99

Spacer [.050mm]

5210754

Unavailable

Spacer [.025mm]

5242981

Unavailable

Spacer [.020mm]

5210752

Unavailable

Spacer [.032mm]

5210753

Unavailable

NUT, FLEXLOC

7541906

$3.19

NUT-JAM

5020425

$23.99

Asm., Drive Clutch, Basic 102 [Less 5,11][700]

1321810

Unavailable

Asm., Drive Clutch, Basic 108 [Less 5,11][800]

1321880

Unavailable
