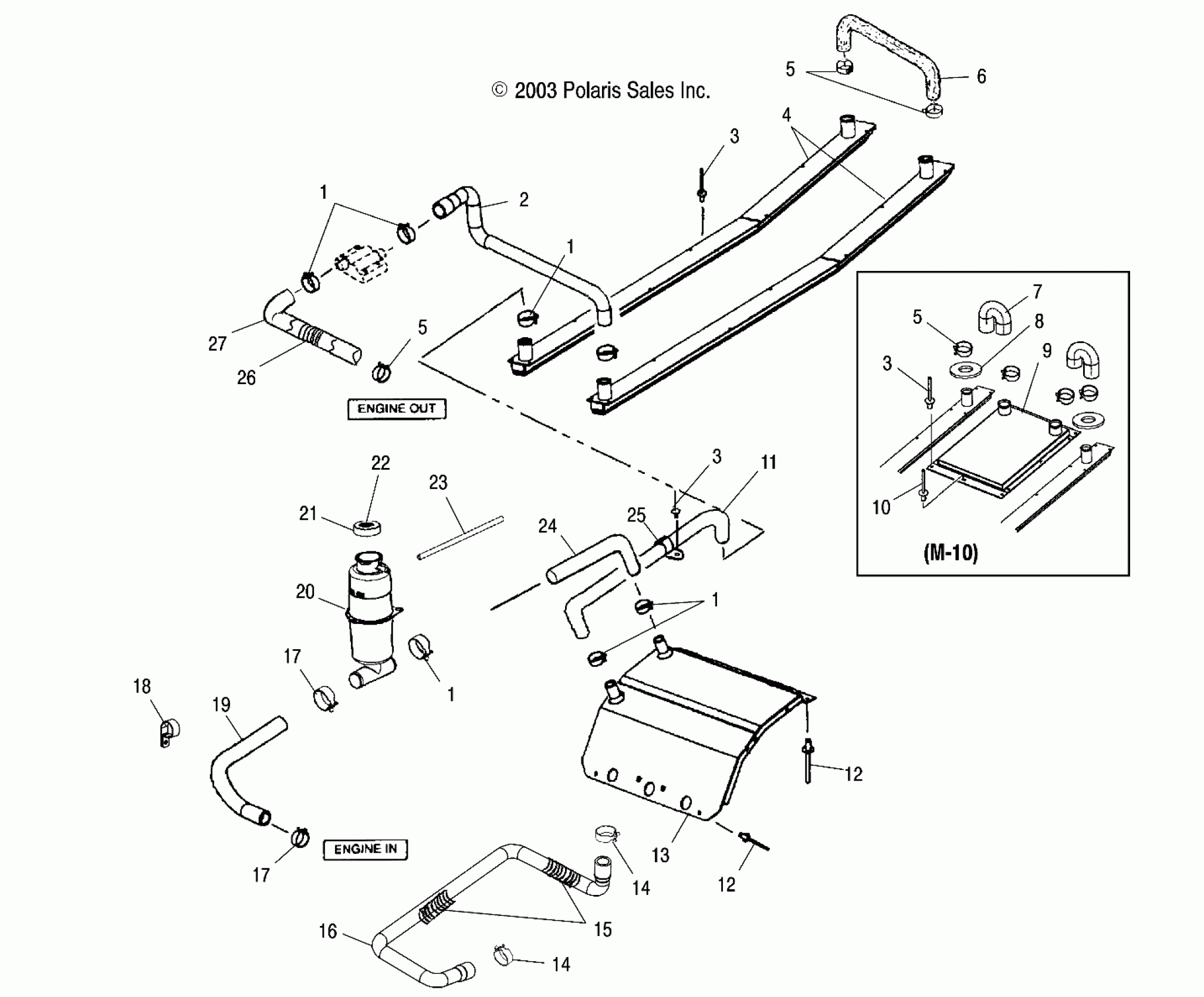

Polaris 700/800 XC EDGE F/O - S04NP7CS COOLING SYSTEM - S04NP7CS/7CSA/7CSB/7CSC/8CS/8CSA/8CSB/8CSC-S04NE7CS/8CS (4988438843B10) Diagram

#

Description
Price

1

CLAMP, SPRINGBAND

7080844

$10.39

1

CLAMP, SPRINGBAND

7080844

$10.39

1

CLAMP, SPRINGBAND

7080844

$10.39

1

CLAMP, SPRINGBAND

7080844

$10.39

2

Hose, Wear Strip/Brake Cooler

5412163

Unavailable

3

Rivet [Qty 25 for M-10]

7621432

$1.49

3

Rivet [Qty 25 for M-10]

7621432

$1.49

3

Rivet [Qty 25 for M-10]

7621432

$1.49

4

Wear Strip

1240154

$299.99

5

Clamp, Springband [Qty 4 for M-10]

7080843

$3.99

5

Clamp, Springband [Qty 4 for M-10]

7080843

$3.99

5

Clamp, Springband [Qty 4 for M-10]

7080843

$3.99

6

Hose, Crossover, Wear Strip

5411854

$48.56

7

Hose, Cooling, 1 Inch, 180 Degree

5412356

Unavailable

8

Seal

5812023

$6.63

9

Cooler, Supplemental

1240153

$634.99

10

Rivet

7621433

$1.49

11

Hose, Center Cooler/Wear Strip

5412162

$44.51

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

13

Cooler

2520255

Unavailable

14

Clamp, Bypass

7081030

$6.39

14

Clamp, Bypass

7081030

$6.39

15

Conduit, Flex

5521398-13

Unavailable

16

Hose, By-Pass

5411536

Unavailable

17

CLAMP-HOSE, 1.750-SS

7080560

$11.19

17

CLAMP-HOSE, 1.750-SS

7080560

$11.19

18

Clamp, Hose, Vinyl Coated

7080951

$13.19

19

Hose, Pump/Bottle

5412160

$48.56

20

Bottle, Coolant

2520312

$48.56

21

Cap, Pressure

2511270

$24.27

22

Decal, Bottle Cap

7170063

$4.03

23

Line, Fuel

8450003-1525

$84.99

24

Hose, Cooler/Bottle

5412431

Unavailable

25

Clamp, Hose

7080653

$4.79

26

Spring, Hose Retainer

7042134

$4.39

27

Hose, Engine Out/Brake Cooler

5411956

Unavailable
