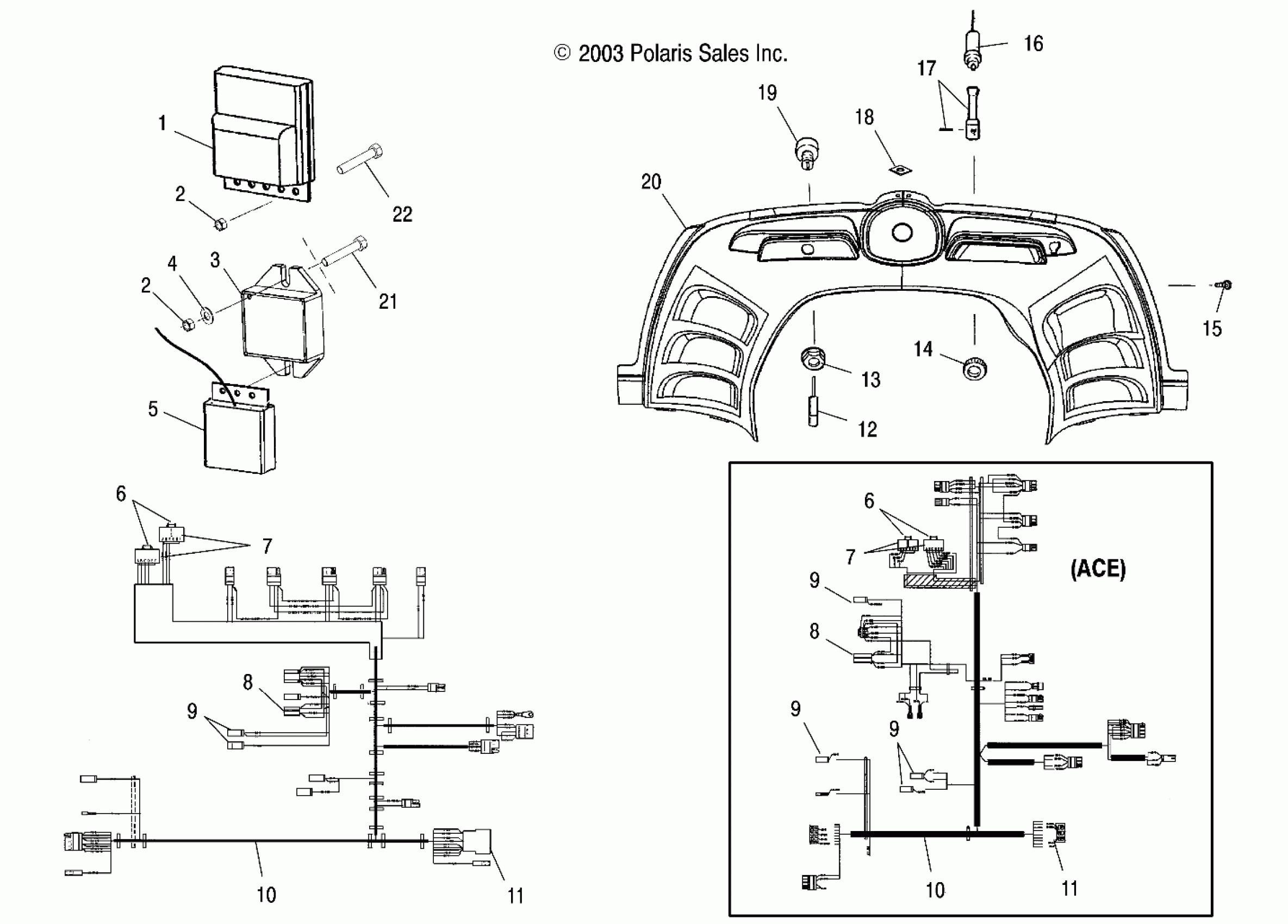

Polaris 700/800 XC EDGE F/O - S04NP7CS CONSOLE - S04NP7CS/7CSA/7CSB/7CSC/8CS/8CSA/8CSB/8CSC-S04NE7CS/8CS (4988438843B02) Diagram

Controller, M-10, ACE, Electric

4010597

$304.75

Nut, Nylok

7541925

$1.49

Nut, Nylok

7541925

$1.49

Regulator, AC/DC 14.3V [Electric Start]

4010794

$116.17

Regulator, 14.3V [Manual Start]

4010793

$101.17

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

Regulator, Rectifier [M-10 ACE]

4010730

$70.39

Housing, Connector

4010193

$8.79

Housing, Connector

4010193

$8.79

Socket

4010192

Unavailable

Socket

4010192

Unavailable

HOUSING

4020063

$3.19

HOUSING

4020063

$3.19

Housing, 1 Circuit

4020153

Unavailable

Housing, 1 Circuit

4020153

Unavailable

Housing, 1 Circuit

4020153

Unavailable

Housing, 1 Circuit

4020153

Unavailable

Harness, Main

2461146

Unavailable

Harness, Main [M-10 ACE]

2461149

$255.99

Harness, Main

2461146

Unavailable

Harness, Main [M-10 ACE]

2461149

$255.99

Housing

4020057

$3.51

Housing

4020057

$3.51

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

Nut, Ignition

7547035

$8.79

Nut, Choke

5432944

$8.79

Screw

7515199

$1.49

Cable, Choke [Incl. 14,17]

7080946

$89.03

Lever, Choke [Incl. Pin]

5432943

Unavailable

CLIP-PLASTIC DART, NYLON

7670088

$1.59

Kit, Ignition Switch

2201614

$89.03

Console

5434134

Unavailable

Screw [Manual Start]

7512031

$2.23

Screw [Electric Start]

7517263

Unavailable

Screw

7512050

$3.99
