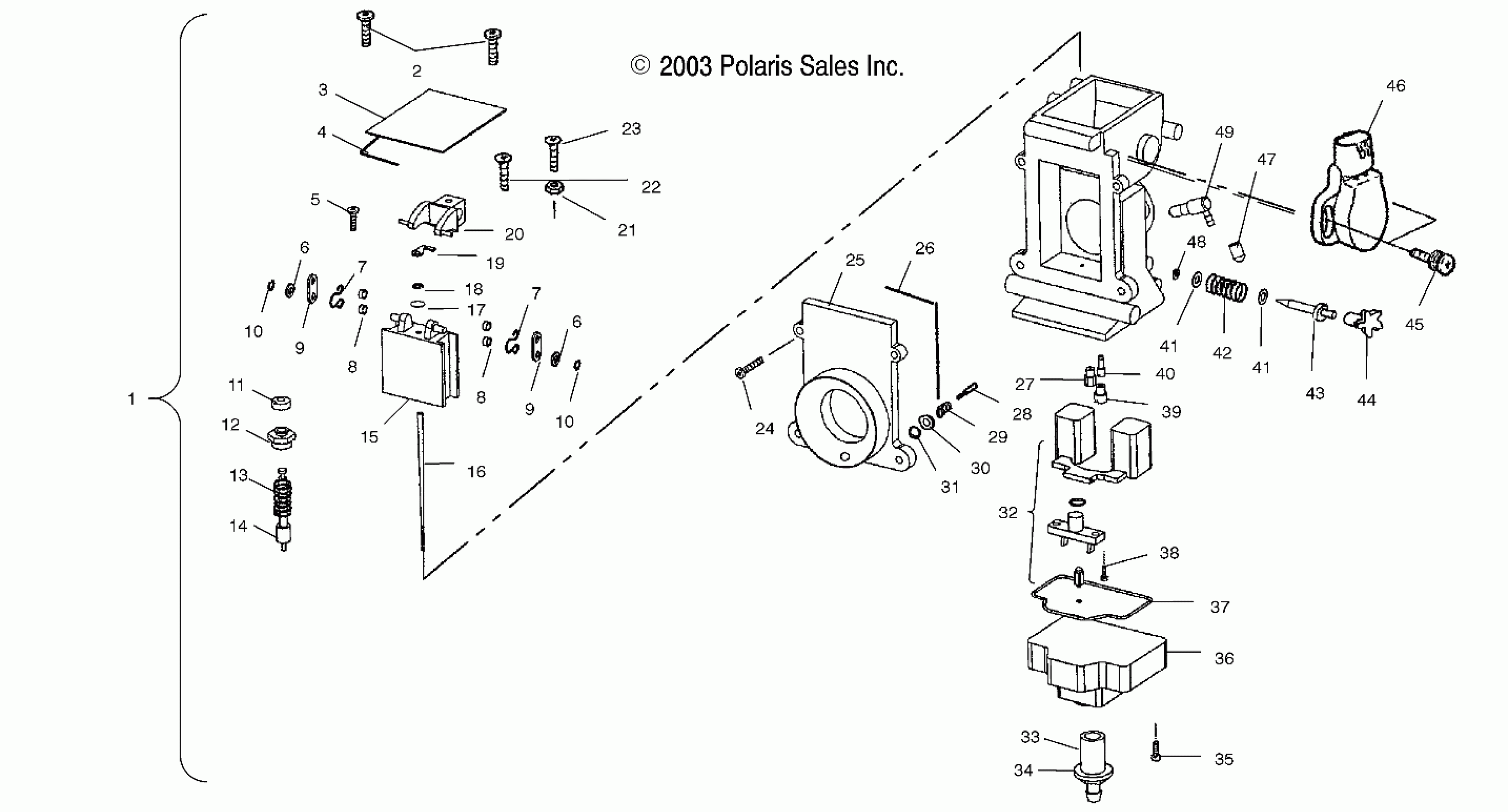

Polaris 700/800 XC EDGE F/O - S04NP7CS CARBURETOR (700) - S04NP7CS/7CSA/7CSB/7CSC-S04NE7CS (4988438843E01) Diagram

#

Description
Price

1

Asm., Carburetor

1253462

Unavailable

2

Screw

3130951

$3.99

3

Cap, Top

3130872

Unavailable

4

Gasket

3130871

$20.22

5

Screw

3130844

$3.99

6

Packing

3130846

$4.79

6

Packing

3130846

$4.79

7

Clip

3130856

$8.79

7

Clip

3130856

$8.79

8

Ring

3130845

$8.89

8

Ring

3130845

$8.89

9

Plate

3130857

$7.27

9

Plate

3130857

$7.27

10

E-Ring

3130847

$8.89

10

E-Ring

3130847

$8.89

11

Cap, Rubber

3130831

$7.27

12

Holder, Guide

3130830

$32.37

13

Spring

3130829

$12.94

14

Plunger

3130828

$32.37

15

Valve, Piston [1.5]

3130940

$104.99

16

Needle, Jet, J8-9DGN05-57

3131415

Unavailable

17

Packing

3130867

$5.65

18

E-Ring

3130868

$8.89

19

Plate

3130843

$8.89

20

Lever, LH

3130855

$64.75

20

Lever, RH

3130849

$64.75

21

Ring

3130848

$32.37

22

Screw, LH

3130854

$3.19

23

Screw, RH

3130850

$4.79

24

Screw

3130825

$3.19

25

Funnel, Long

3131439

$61.90

26

O-Ring, Air Funnel, Long

3131356

$16.17

27

Jet, Main [440]

3130144

$7.27

28

Screw, Air

3131336

Unavailable

29

Spring

3131371

Unavailable

30

Washer

3131372

$5.59

31

O-Ring

3130522

$5.65

32

Float

3131231

$134.99

33

Bolt, Drain

3131248

Unavailable

34

O-Ring

3130863

$2.41

35

Screw

3130824

$3.19

36

Body, Float

3130858

$119.99

37

O-Ring

3130861

$12.13

38

Screw

3130860

$8.79

39

Jet, Pilot [45]

3130068

$8.89

40

Jet, Starter [145]

3130769

$8.89

41

Washer

3130837

$3.19

41

Washer

3130837

$3.19

42

SPRING

3130836

$7.27

43

Adjuster

3130987

$20.22

44

Cap

3130986

$9.70

45

Screw [MAG Side]

3131010

$4.79

46

Asm., Sensor [MAG Side]

3131009

$259.03

47

CAP

3130479

$14.56

48

Packing

3130835

$2.41

49

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37
