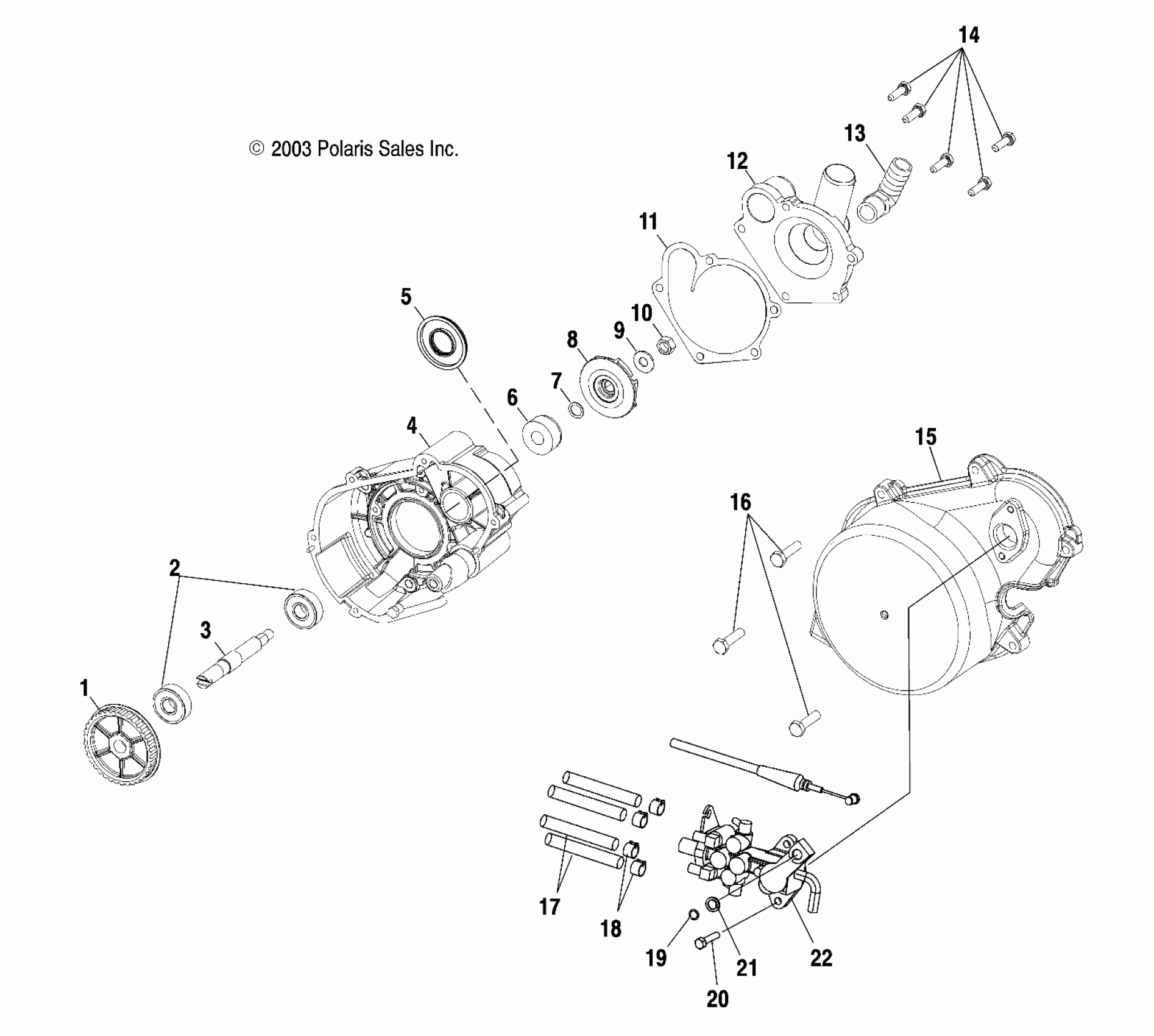

Polaris 700/800 CLASSIC - S04ND7CS/8CS WATER PUMP/OIL PUMP - S04ND7CS/CSA/8CS/CSA/CSB (4988418841C14) Diagram

#

Description
Price

1

Pulley

3021044

$40.46

2

Bearing, Ball

3514311

Unavailable

3

Shaft

5132273

$94.99

4

HOUSING, IGNITION [SEE MAGNETO PG. D5, REF. 13]

-------

Unavailable

5

Seal

3610044

$24.27

6

Seal, Water Pump

3610067

$44.51

7

Washer, Flat

7556006

$3.99

8

Impeller

5432330

$23.99

9

Washer, Flat

7555874

$2.39

10

NUT, NYLOK

7546804

$1.49

11

Gasket, Cover

5811627

$8.89

12

Cover

5630864

$53.17

13

Fitting, 90 Degree

7052221

Unavailable

14

SCREW

7516822

$2.39

15

HOUSING, IGNITION [SEE MAGNETO PG. D5, REF. 13]

-------

Unavailable

16

Screw

7516823

$3.19

17

LINE, FUEL

8450061-600

Unavailable

18

Clamp

7080603

$1.59

19

E-Ring

7710427

Unavailable

20

Screw

7516607

$10.39

21

Washer, Nylon

7555944

$3.99

22

Pump, Oil

2540102

Unavailable
