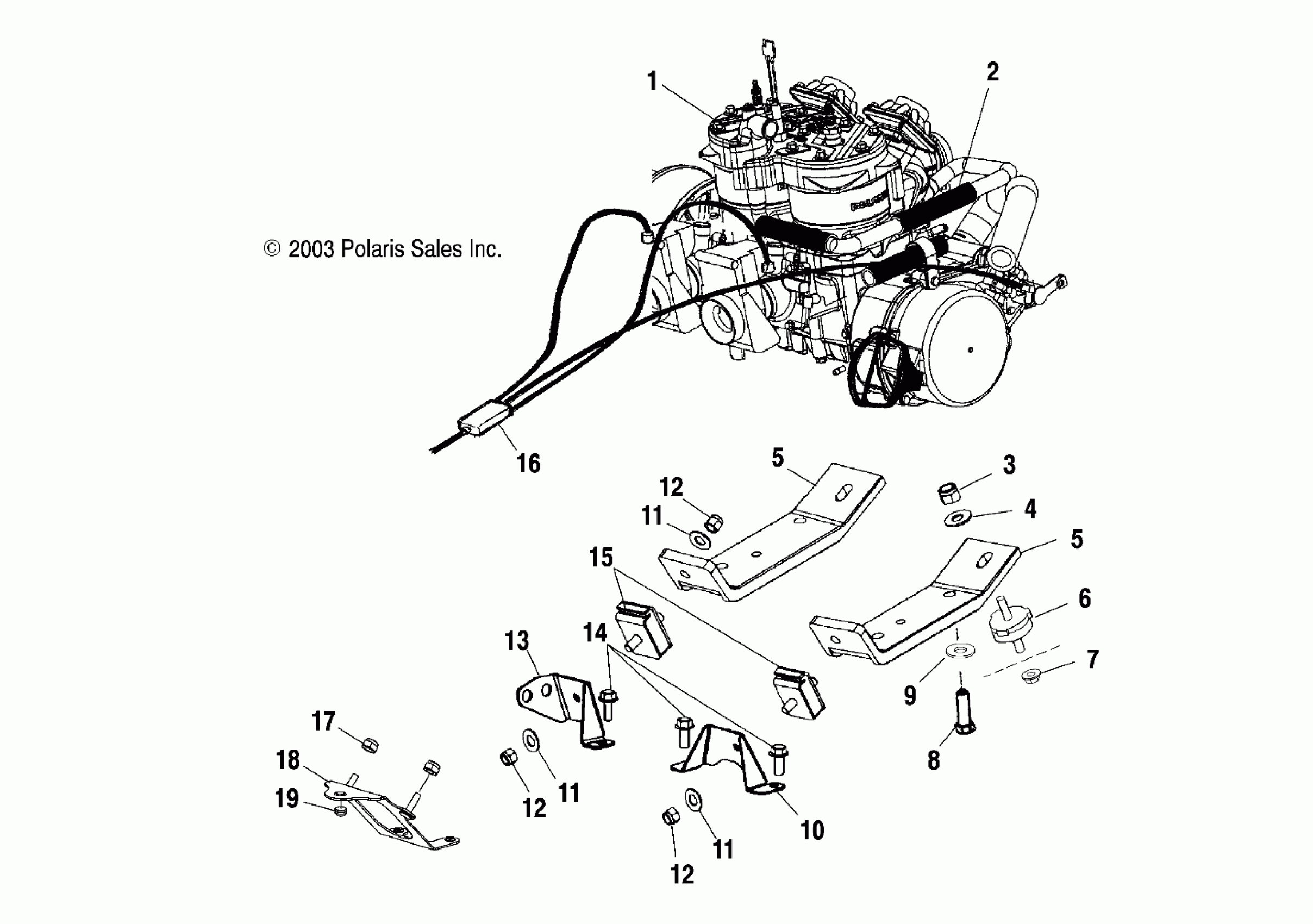

Polaris 700/800 CLASSIC - S04ND7CS/8CS ENGINE MOUNTING - S04ND7CS/CSA/8CS/CSA/CSB (4988418841C11) Diagram

#

Description
Price

1

Kit, Short Block, S707003 [700] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is requir

2202513

Unavailable

1

Kit, Short Block, S807003 [800] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is requir

2202517

Unavailable

2

Conduit

5521398-13

Unavailable

3

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

4

Washer, Flat

7555893

$1.49

5

Strap, Engine Mount, LH

5245462

$39.99

5

Strap, Engine Mount, RH

5246381

$32.15

5

Strap, Engine Mount, LH

5245462

$39.99

5

Strap, Engine Mount, RH

5246381

$32.15

6

Mount, Engine

3021220

Unavailable

7

NUT, FLANGED

7547180

$2.39

8

Screw

7512539

$3.99

9

Washer, Spring Lock

7553101

$3.99

10

Bracket, Engine Mount, RH

5245044

Unavailable

11

Washer, Flat

7555806

$1.49

11

Washer, Flat

7555806

$1.49

11

Washer, Flat

7555806

$1.49

12

NUT, FLEXLOC

7547008

$6.39

12

NUT, FLEXLOC

7547008

$6.39

12

NUT, FLEXLOC

7547008

$6.39

13

Bracket, Engine Mount, LH

1013397

$24.27

14

Screw

7517854

$5.59

15

Mount, Engine

3021206

$60.70

16

CABLE, THROTTLE [SEE HANDLEBAR PG. B6, REF. 21]

-------

Unavailable

17

Nut, Nylok

7542122

$1.49

18

Bracket, Fuel Pump

1014392

$12.39

19

Plug

5410012

Unavailable
