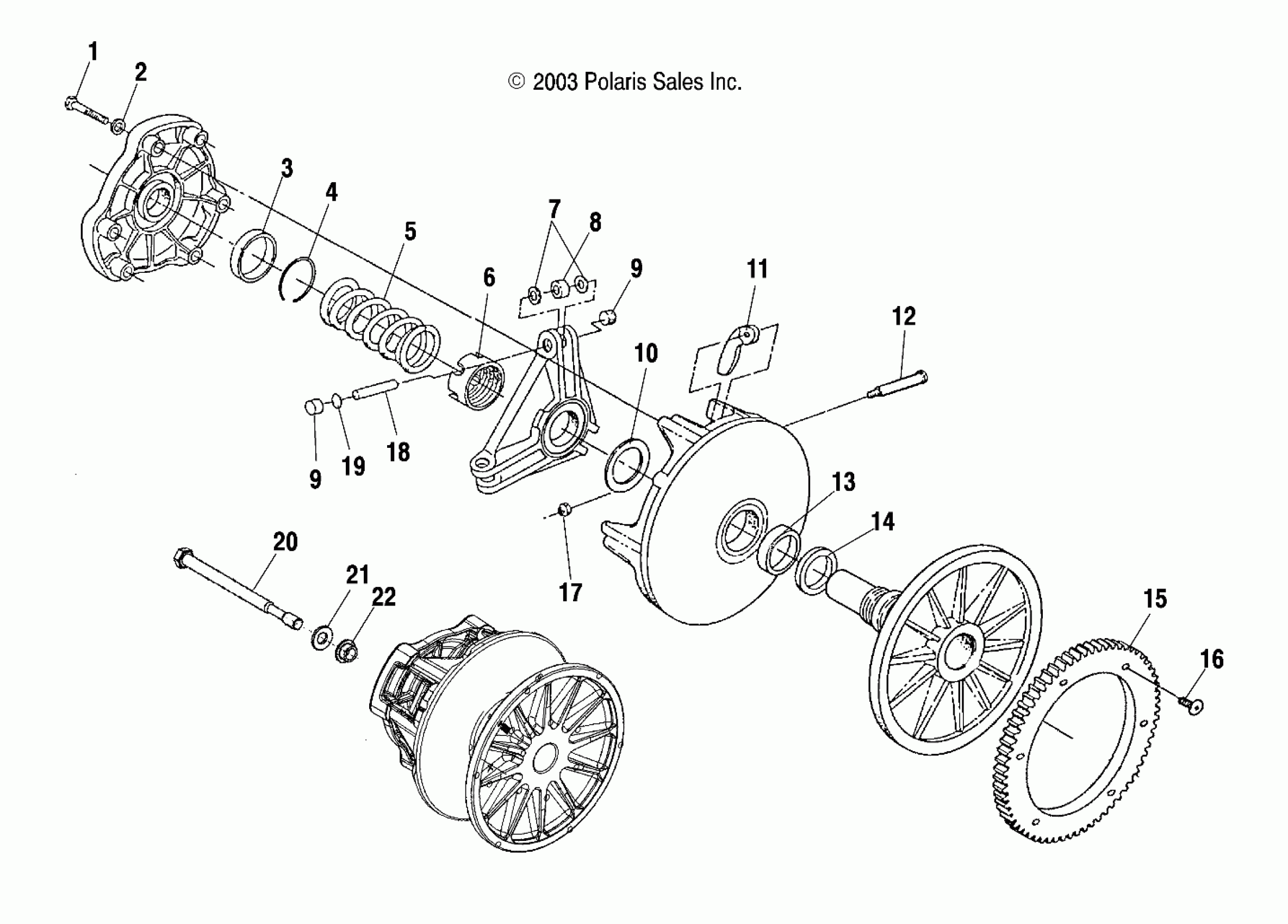

Polaris 700/800 CLASSIC - S04ND7CS/8CS DRIVE CLUTCH - S04ND7CS/CSA/8CS/CSA/CSB (4988418841C01) Diagram

#

Description
Price

-

Asm., Drive Clutch ES Basic 125 [Incl. All Less 5,11][800]

1322022

Unavailable

-

Asm., Drive Clutch ES Basic 117 [Incl. All Less 5,11][700]

1321931

Unavailable

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

Bearing, Cover [700]

3576516

$28.32

3

BEARING COVER GARMAX [800]

3514347

$36.41

4

RING-RETAINING,COVER

7710417

$1.49

5

Spring, Clutch, Black/Green [700]

7042083

$56.65

5

Spring, Clutch, Blue/White [800]

7041781

$56.65

6

NUT-JAM

5020425

$23.99

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

BUTTON, GUIDE

5430445

$6.39

9

BUTTON, GUIDE

5430445

$6.39

10

Spacer, .050 Inch

5210754

Unavailable

10

Spacer, .025 Inch

5242981

Unavailable

10

Spacer, .020 Inch

5210752

Unavailable

10

Spacer, .032 Inch

5210753

Unavailable

10

Spacer, .130 Inch [800]

5134018

Unavailable

10

Spacer, .130 Inch [700]

5132542

Unavailable

11

Asm., Weight/Bushing 10-62 [700]

1321586

$40.46

11

Asm., Weight/Bushing 10-64 [800]

1321585

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

Bearing, Sleeve

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

Gear, Ring

5131062

Unavailable

16

SCREW

7515351

$3.99

17

NUT, FLEXLOC

7541906

$3.19

18

Pin, Roller [700]

5133079

$6.39

18

Pin, Roller [800]

5133054

Unavailable

19

Kit - Shim, Drive Clutch

2200387

$24.27

20

Screw

7517501

Unavailable

21

WASHER

7556003

$6.39

22

WASHER-CLUTCH RET,M14

5132441

$23.99
