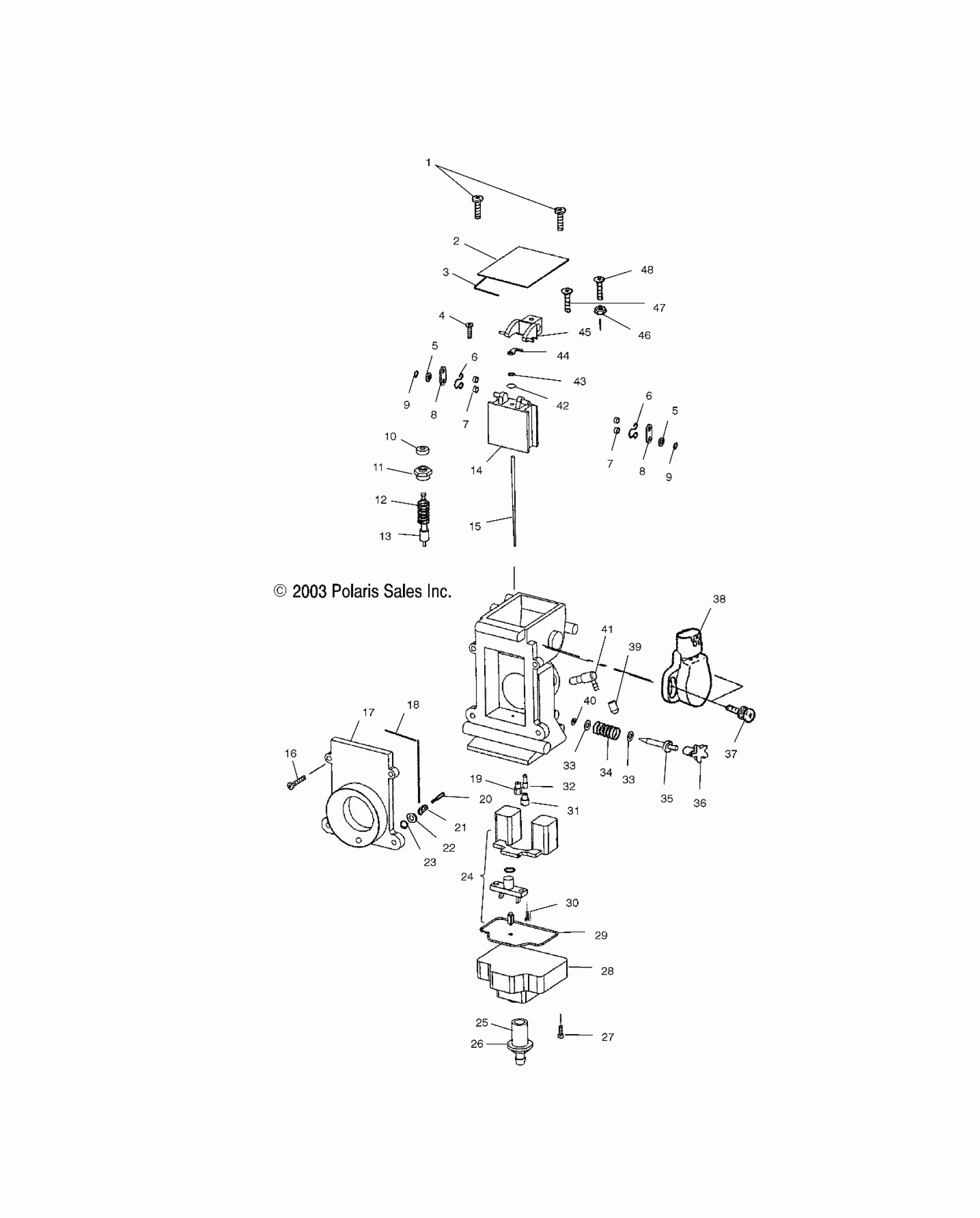

Polaris 700/800 CLASSIC - S04ND7CS/8CS CARBURETOR - S04ND7CS/CSA/8CS/CSA/CSB (4988418841D01) Diagram

#

Description
Price

-

Asm., Carburetor [700]

1253462

Unavailable

-

Asm., Carburetor [800]

1253449

Unavailable

1

Screw

3130951

$3.99

2

Cap, Top

3130872

Unavailable

3

Gasket

3130871

$20.22

4

Screw

3130844

$3.99

5

Packing

3130846

$4.79

5

Packing

3130846

$4.79

6

Clip

3130856

$8.79

6

Clip

3130856

$8.79

7

Ring

3130845

$8.89

7

Ring

3130845

$8.89

8

Plate

3130857

$7.27

8

Plate

3130857

$7.27

9

E-Ring

3130847

$8.89

9

E-Ring

3130847

$8.89

10

Cap, Rubber

3130831

$7.27

11

Holder, Guide

3130830

$32.37

12

Spring

3130829

$12.94

13

Plunger

3130828

$32.37

14

Valve, Piston, 1.5

3130940

$104.99

15

Needle, Jet, J8-9DGN05-57

3131415

Unavailable

16

Screw

3130825

$3.19

17

Funnel, Long

3131439

$61.90

18

O-Ring, Air Funnel, Long

3131356

$16.17

19

Jet, Main, 440 [700]

3130144

$7.27

19

Jet, Main, 460 [800]

3130146

$7.27

20

Screw, Air

3131336

Unavailable

21

Spring

3131371

Unavailable

22

Washer

3131372

$5.59

23

O-Ring

3130522

$5.65

24

Float

3131231

$134.99

25

Bolt, Drain

3131248

Unavailable

26

O-Ring

3130863

$2.41

27

Screw

3130824

$3.19

28

Body, Float

3130858

$119.99

29

O-Ring

3130861

$12.13

30

Screw

3130860

$8.79

31

Jet, Pilot, #45 [700]

3130068

$8.89

31

Jet, Pilot, #40 [800]

3130067

$10.99

32

Jet, Starter, 145 [700]

3130769

$8.89

32

Jet, Starter, 135 [800]

3130767

Unavailable

33

Washer

3130837

$3.19

33

Washer

3130837

$3.19

34

SPRING

3130836

$7.27

35

Adjuster

3130987

$20.22

36

Cap

3130986

$9.70

37

Screw [MAG Side]

3131010

$4.79

38

Asm., Sensor [MAG Side]

3131009

$259.03

39

CAP

3130479

$14.56

40

Packing

3130835

$2.41

41

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

42

Packing

3130867

$5.65

43

E-Ring

3130868

$8.89

44

Plate

3130843

$8.89

45

Lever, LH

3130855

$64.75

45

Lever, RH

3130849

$64.75

46

Ring

3130848

$32.37

47

Screw, LH

3130854

$3.19

48

Screw, RH

3130850

$4.79
