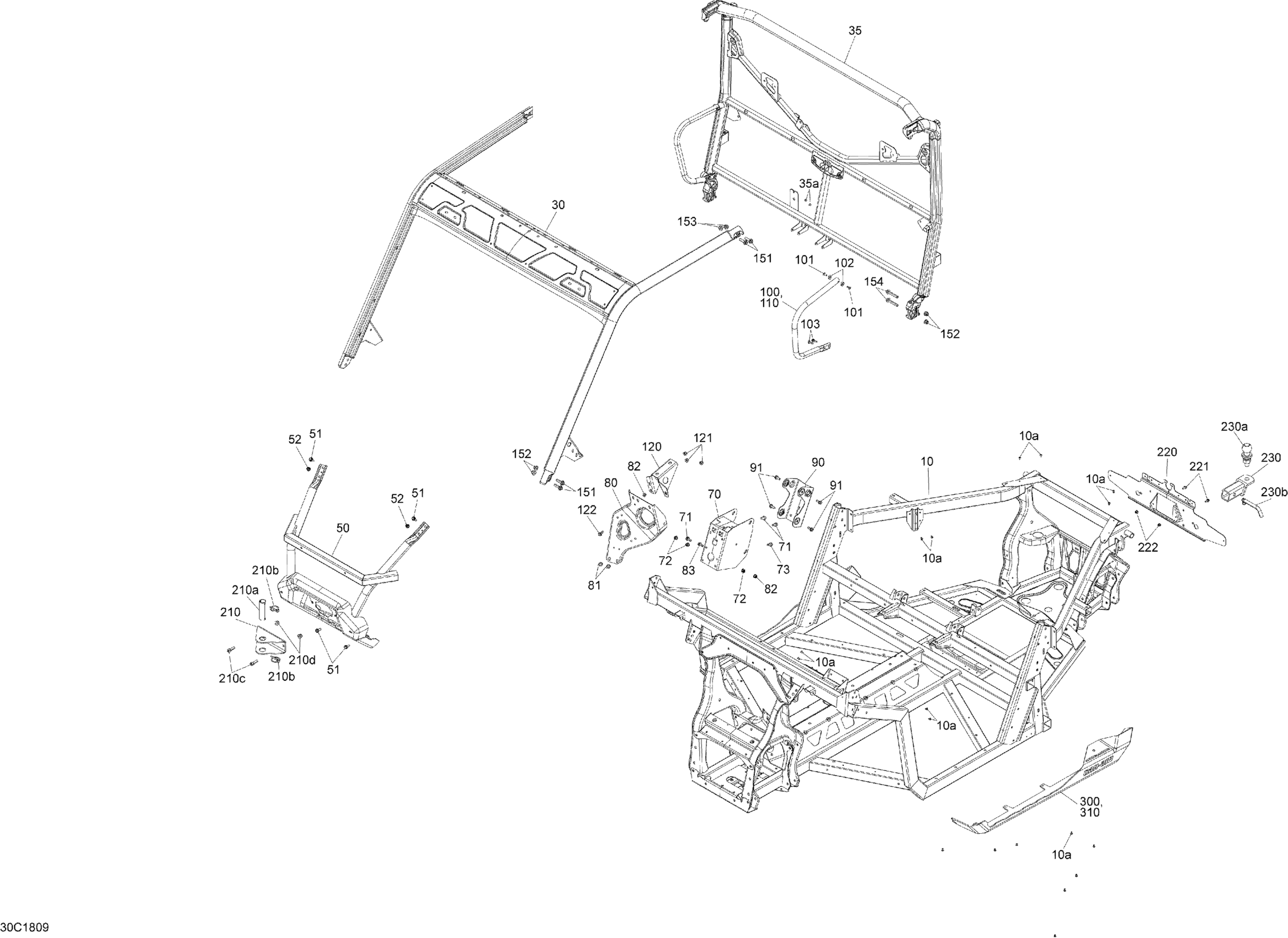

Can-Am Traxter T HD10, 2018 Frame Traxter T1B Diagram

#

Description
Price

10

Frame Kit | Inclus 10 to 10a

715005679

$2,589.99

10a

Pop Rivet 3/16"

390402200

$0.35

30

Front Cage Profile Assembly

715005675

$649.99

35

Black, Rear Cage Kit

715003569

$649.99

35a

Pop Rivet 3/16"

390402200

$0.35

35

Black, Rear Cage Kit

715003569

$649.99

50

Deep Black, Front Bumper

705207588

$499.99

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

52

Hex. Flange Elastic Nut M8

233281414

$1.47

70

Plate

705206316

$55.99

71

Hex. Flange Screw M8 X 20

207682044

$1.15

72

Hex. Flange Elastic Nut M8

233281414

$1.47

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

80

DPS Support

705206185

$93.99

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

82

Hex. Flange Elastic Nut M8

233281414

$1.47

83

Hex. Flange Screw M8 X 20

207682044

$1.15

90

Steering Column Support | Includes 90 to 90d

705209190

$37.99

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

101

Torx Truss M6X14

250000789

$5.39

102

Offset Washer

705202223

$4.14

103

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

110

Deep Black, RH Protector Tube

705204592

$44.49

120

Shifting Module Support

705205171

$30.99

121

Hex. Flange Elastic Nut M8

233281414

$1.47

122

Hex. Flange Screw M8 X 20

207682044

$1.15

210

Front Coupling Device Ass'y | STD Package

705206240

$114.99

210a

Pin

605456511

Unavailable

210b

Pin

605456518

Unavailable

210c

Socket Screw M10 x 30 | XT

205003044

$3.17

210d

Hex. Flange Elastic Nut M10

233201414

$1.58

220

Licence Plate Support

705014656

$114.99

221

Hex. Flange Screw M6 X 16

207661644

$0.74

222

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

230

Drawbar Ass'y | Includes 230 to 230c

705208230

$166.49

230a

BALL 50MM - Call your local BRP dealership | Package PRO Europe, T3

705202391

Unavailable

230b

Hitch Pin

705204490

$52.99
