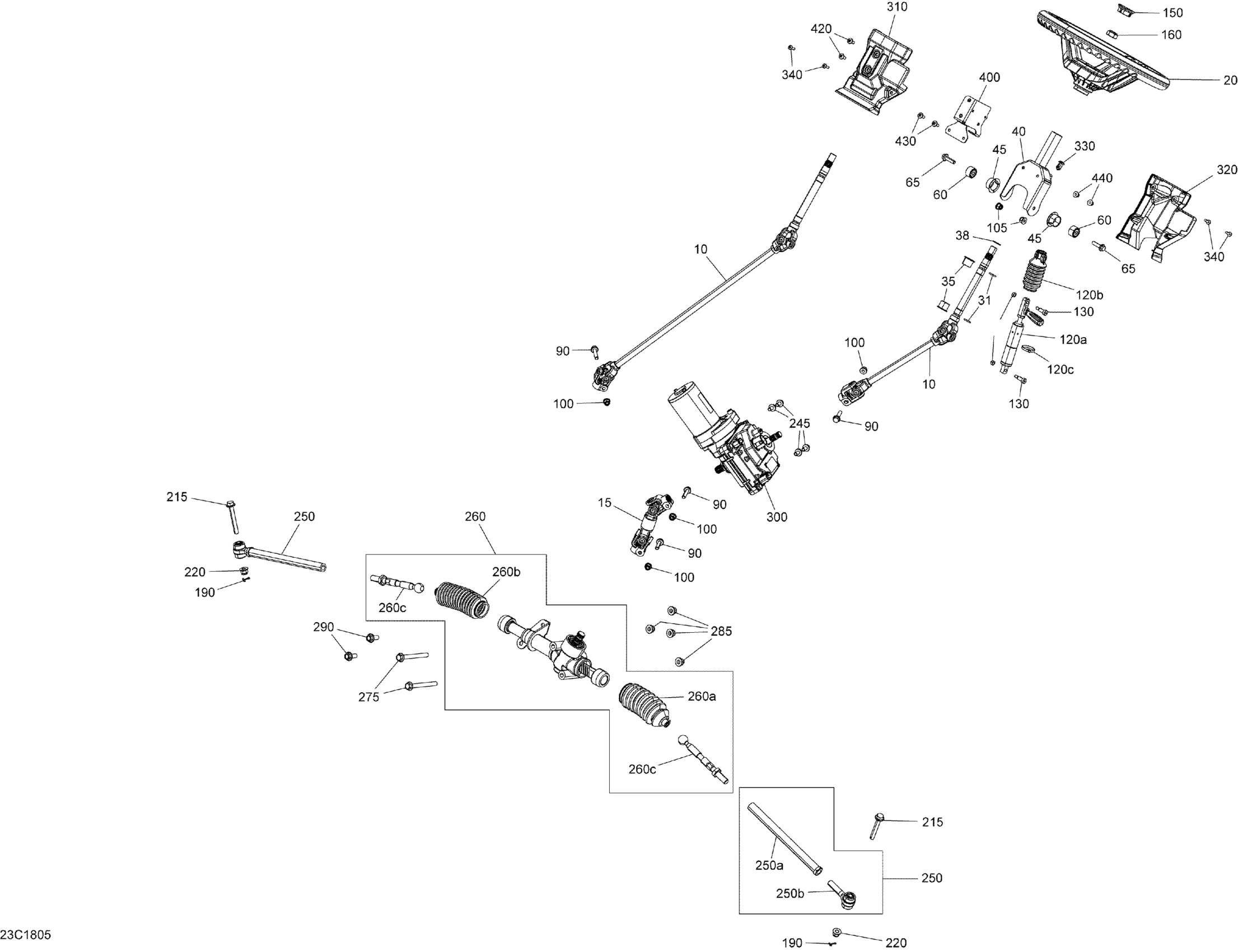

Can-Am Traxter T HD10, 2018 Steering Traxter T1B Diagram

#

Description
Price

10

Steering Column

709402491

$184.58

10

Steering Shaft | Package DPS

709401936

$207.66

15

Lower Steering Column

709402996

$189.20

20

Steering Wheel

709401513

$507.66

31

O-Ring

293300144

$3.98

35

Steering Bushing

709402725

$3.17

38

Circlip

293370110

$2.31

40

Steering Support

709401602

$78.43

45

Bushing

709401603

$6.57

60

Bushing

709401604

$4.52

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

90

Hex. Flange Screw M8 X 35

250001021

$3.61

90

Hex. Flange Screw M8 X 35

250001021

$3.61

100

Hex. Elastic Flange Nut M8

233281416

$1.25

100

Hex. Elastic Flange Nut M8

233281416

$1.25

105

Hex. Flange Elastic Nut M8

233281414

$1.14

120a

Adjustment Cylinder

709402506

$69.20

120b

Boot Tube Side

709401232

$13.62

120c

Tie-Rap 180 mm

414115200

$0.09

130

Socket Head Screw M8 X 16

250000669

$2.61

140

Elastic Stop Nut M6

232561414

$1.55

150

Steering Cap

709401514

$15.35

160

Elastic Lock Nut M16

232511414

$1.64

190

Cotter Pin

211400017

$0.25

215

Screw Hex Cap M10 X 75

250000814

$3.95

220

Hex. Flange Elastic Nut M10

233201414

$1.26

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

250>250b

Tie Rod Ass'y | Includes 250 to 250b

709401627

$69.20

250>250b

Tie Rod Ass'y | Includes 250 to 250b

709401627

$69.20

250a

Steering Rod Nut

715900238

$2.31

250b

Ball Joint

709401601

$50.34

260>260c

Steering Rack And Pinion | Includes 260 to 260d

709402317

$387.66

260a

Boot Kit, Pinion Side

715900235

$55.35

260b

Boot Kit, Tube Side

715900236

$55.35

260c

Steering Rod Nut

715900238

$2.31

275

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

$2.61

285

Hex. Flange Elastic Nut M10

233201436

$1.74

290

Hex. Flange Screw M10 X 25

207602546

$1.74

300

Direction Assis* Power Steering

709401616

Unavailable

310

Steering Box Cover

709402012

$13.83

320

Steering Box Cover

709402013

$13.83

330

Tuflok Plastic Rivet

293150230

$1.21

340

Torx Screw K50 X 16

250000720

$1.39

400

Flasher Arm Support

709401962

$32.28

420

Torx Truss Screw M6 X 16

250000721

$1.39

430

Torx Screw M6 X 16

250000755

$0.72

440

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
