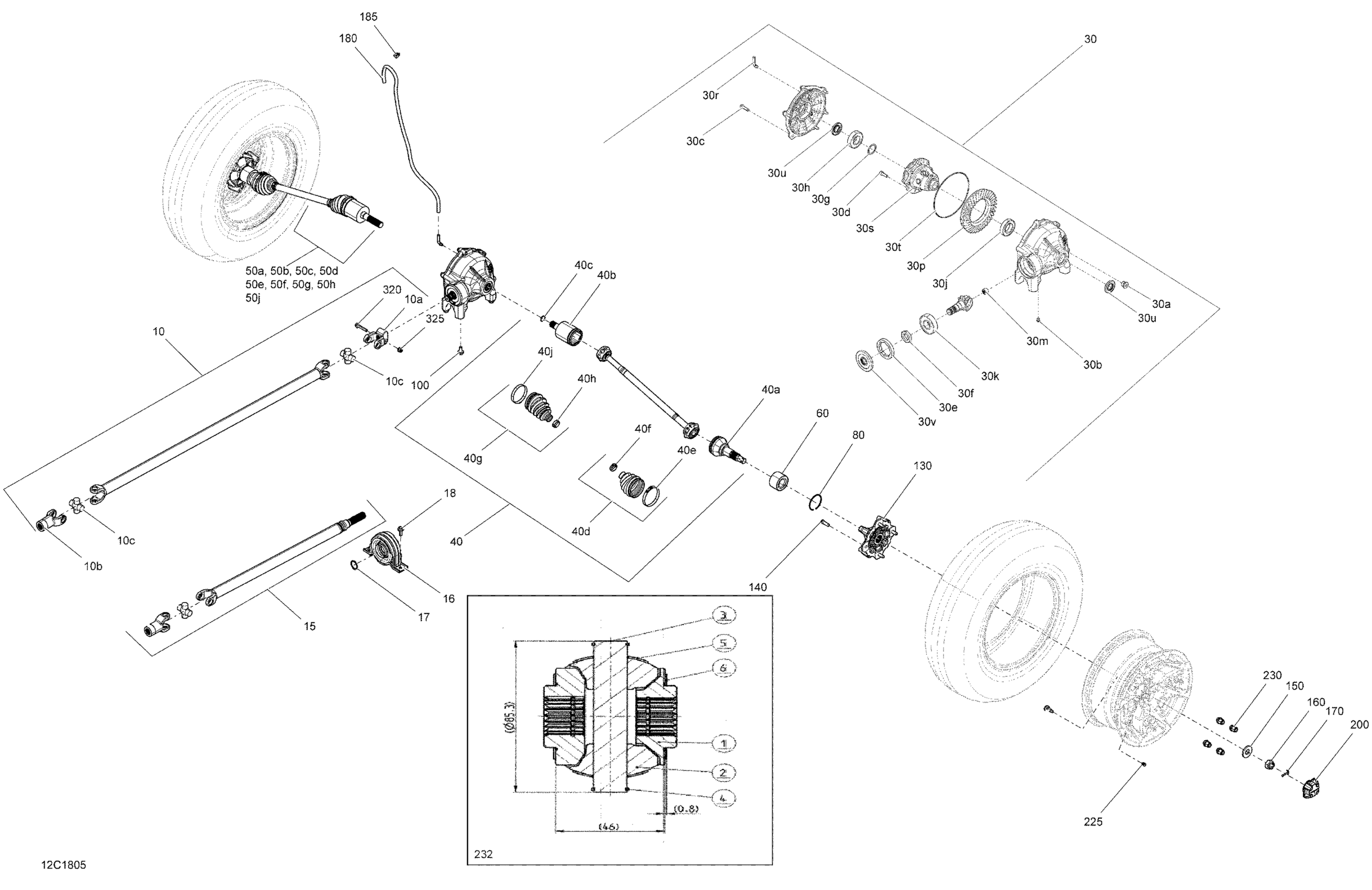

Can-Am Traxter T HD10, 2018 Front Drive - Traxter Diagram

#

Description
Price

10>10c

Axle Ass'y

705402125

$243.49

10>10c

Axle Ass'y

705402125

$243.49

10>10c

Drive Axle Ass'y

705402126

$179.99

10a

Yoke

715900401

$35.99

10b

Fixed Yoke

715900400

$59.49

10c

J-Joint Cross Kit

715900402

$89.99

15

Drive Axle Ass'y | Includes 15 to 15b

705403287

$328.49

16

Ball Bearing Ass'y

705403522

$47.49

17

Snap Ring

293370098

$3.17

18

Hex. Flange Screw M10 X 25

207502546

$2.11

30>30v

Front Differential Ass'y | Model With DPS

705402763

$1,706.49

30>30v

Front Differential Ass'y | Model With DPS

705402763

$1,706.49

30>30v

Front Differential Ass'y | Model With DPS

705402763

$1,706.49

30>30v

Front Differential Ass'y | Model With DPS

705402763

$1,706.49

30>30v

Front Differential Ass'y | Model With DPS

705402763

$1,706.49

30>30v

Front Differential Ass'y | Includes 30 to 30y

705402995

$1,674.49

30>30v

Front Differential Ass'y | Includes 30 to 30y

705402995

$1,674.49

30a

Fill Level Plug

705501889

$20.49

30b

Drain Plug | After May 30, 2014

705501885

$14.22

30c

Bolt

705501886

$7.69

30d

Screw

705402375

$6.35

30e

Nut M75 X 1.5

705401819

$23.99

30f

Nut M27 X 1.5

705401820

$20.99

30g

Shim | 4X4

705401604

$57.99

30h

Ball Bearing | 4X4

705401606

$51.99

30j

Ball Bearing

705402847

$49.99

30k

Ball Bearing

705401821

$31.99

30m

Ball Bearing | After May 30, 2014

705402848

$49.99

30n

Front Cover

705401667

$153.49

30p

Ring Gear 36 Teeth

705402788

$379.99

30q

Pinion 10 th.

705401933

$194.99

30r

Vent Valve

705401935

$16.49

30s

Differential

705402376

$1,278.99

30s

Differential

705402376

$1,278.99

30s

Differential

705402376

$1,278.99

30s

Differential

705402376

$1,278.99

30s

Differential

705402376

$1,278.99

30s

Differential | Base Package

705402377

$1,052.99

30s

Differential | Base Package

705402377

$1,052.99

30t

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$9.27

30u

Oil Seal

705401836

$7.51

30v

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$19.99

40>40j

RH Front - Premium CV Axle | Includes 40 to 40f2

705401936

$243.99

40>40j

RH Front - Premium CV Axle | Includes 40 to 40f2

705401936

$243.99

40>40j

RH Front - Premium CV Axle | Includes 40 to 40f2

705401936

$243.99

40>40j

RH Front - Premium CV Axle | Includes 40 to 40f2

705401936

$243.99

40>40j

RH Front - Premium CV Axle | Includes 40 to 40f2

705401936

$243.99

40>40j

RH Front - Premium CV Axle | Includes 40 to 40f2

705401936

$243.99

40>40j

RH CV Joint | Package CAB

705402170

$243.99

40a

JOINT_CV EXT - Call your local BRP dealership

715900440

$244.99

40b

RH Plunging Joint

715900441

$275.49

40c

Circlip Joint | Not shown

705401349

$6.50

40d

Boot Kit, Wheel Side

705401345

$42.49

40e

Oetiker Clamp

715900282

$5.29

40f

Oetiker Clamp, Small

715900283

$5.29

40g

Boot Kit, Différential Side

705401355

$42.49

40h

Oetiker Clamp, Small

715900261

$5.29

40j

Oetiker Clamp, Large

715900262

$10.33

50>50j

LH Front - Premium CV Axle | Includes 50 to 50f2

705401937

$243.99

50>50j

LH Front - Premium CV Axle | Includes 50 to 50f2

705401937

$243.99

50>50j

LH Front - Premium CV Axle | Includes 50 to 50f2

705401937

$243.99

50>50j

LH Front - Premium CV Axle | Includes 50 to 50f2

705401937

$243.99

50>50j

LH Front - Premium CV Axle | Includes 50 to 50f2

705401937

$243.99

50>50j

LH Front - Premium CV Axle | Includes 50 to 50f2

705401937

$243.99

50>50j

LH CV Joint | Package CAB

705402171

$243.99

50a

JOINT_CV EXT - Call your local BRP dealership

715900440

$244.99

50b

LH Plunging Joint

715900442

$275.49

50c

Circlip Joint | Not shown

705401349

$6.50

50d

Boot Kit, Wheel Side

705401345

$42.49

50e

Oetiker Clamp

715900282

$5.29

50f

Oetiker Clamp, Small

715900283

$5.29

50g

Boot Kit, Différential Side

705401355

$42.49

50h

Oetiker Clamp, Small

715900261

$5.29

50j

Oetiker Clamp, Large

715900262

$10.33

60

Ball Bearing

293350150

$52.99

80

Circlip

293370019

$4.68

100

Hex. Flange Screw M10 X 20

207502046

$2.11

130

Wheel Hub

705502338

$116.49

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

150

Conical Spring Washer M20

250200170

$14.74

160

Castle Nut M20

250100193

$8.05

170

Cotter Pin

250400084

$2.29

180

Polyurethane Hose 10000Mm Long

219704410

$56.99

185

Clip

414227300

$1.67

200

Wheel Cap

705400928

$10.49

200

Wheel Cap | Package XMR 850, XMR 1000

705401541

$11.49

225

Valve Cap

293000110

$1.59

230

Steel Wheel Nut

250100042

$3.98

230

Steel Wheel Nut

250100042

$3.98

230

Steel Wheel Nut

250100042

$3.98

230

Steel Wheel Nut

250100042

$3.98

230

Steel Wheel Nut

250100042

$3.98

230

Black, Wheel Nut M10 X 1.25

250100184

$4.51

230

Black, Wheel Nut M10 X 1.25

250100184

$4.51

230

Black, Wheel Nut M10 X 1.25

250100184

$4.51

230

Black, Wheel Nut M10 X 1.25

250100184

$4.51

230

Black, Wheel Nut M10 X 1.25

250100184

$4.51

230

Black, Wheel Nut M10 X 1.25

250100184

$4.51

230

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

230

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

230

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

230

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

232

Side Gear Kit

703501023

$465.99

230

Black, Wheel Nut M10 X 1.25

250100184

$4.51

320

Hex. Flange Screw M8 X 42

250001050

$1.16

325

Hex. Elastic Flange Nut M8

233281416

$1.48
