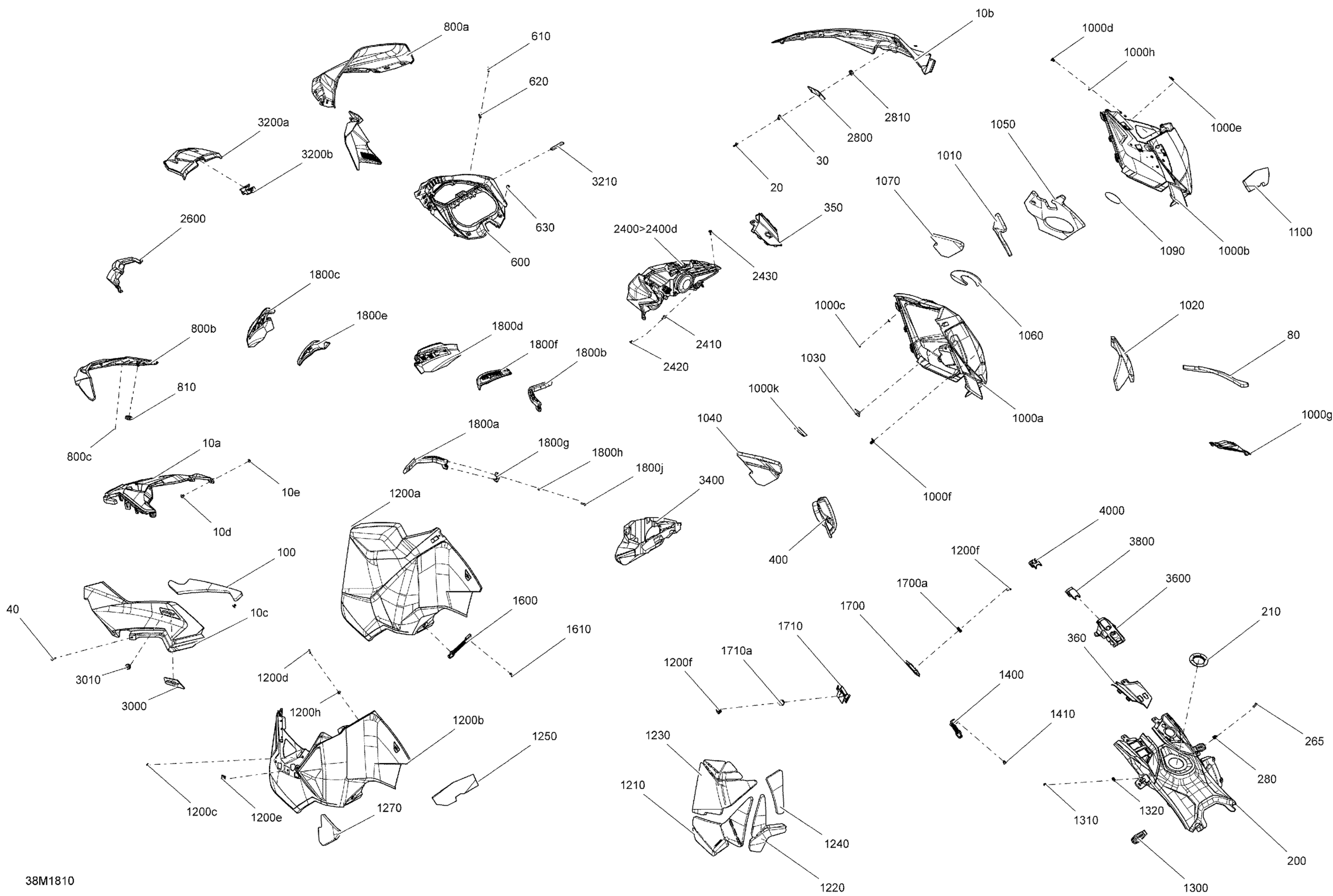

Ski-Doo RENEGADE 1200 4-TEC, 2018 Hood Renegade 1200 4-TEC Diagram

#

Description
Price

10a

Deep Black, Center Hood

517304796

$192.51

10a

Green Center Hood | Package X

517305636

$186.54

10b

Red RH Hood | Package Enduro

517305634

$186.54

10b

Deep Black, RH Hood

517305239

$178.33

10b

RH HOOD - Call your local BRP dealership | Package X

517306411

Unavailable

10c

Red LH Hood | Package Enduro

517305633

$186.54

10c

Deep Black, LH Hood

517305240

$178.33

10c

LH HOOD - Call your local BRP dealership | Package X

517306412

$169.37

10d

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

10e

Washer

517124300

$0.18

20

Torx Screw M5 X 20

250000528

$2.00

30

Panel Nut M5 X 0.8

250000958

$4.00

40

Torx Screw M5 X 26

250000587

$4.15

80

RH Rear Hood Foam

517305090

$12.31

100

LH Rear Hood Foam

517305091

$12.31

200

White, Rear Console

517305557

$211.91

200

Deep Black, Rear Console

517305641

$205.94

200

CONSOLE REAR B-357 - Call your local BRP dealership | Package X

517305643

Unavailable

200

CANAM RED, REAR CONSOLE - Call your local BRP dealership | Package Enduro

517305786

$174.60

210

Console Nut

517304518

$13.37

265

Torx Truss Screw M6 X 20

250000705

$2.00

280

Panel Nut M6 X 1.0

250100198

$1.99

350

Deep Black, RH Front Console

517305549

$17.88

400

Deep Black RH Console

517305061

$26.84

600

Deep Black, Indicator Support

517305511

$54.45

610

Torx Screw M5 X 20

250000528

$2.00

620

Panel Nut M5 X 0.8

250000958

$4.00

630

Torx Screw M5 X 26

250000587

$4.15

800a

Windshield 235mm | Package X

517304921

$153.70

800a

Windshield 345mm

517304927

$164.90

800b

Enjo Pare-Brise*Windshield Tri | Package X This part replaces 517304922.

860200937

$26.09

800b

Windshield Support Long, Yellow 2000

860200944

$39.52

800c

Push Nut

732610072

$1.97

800d

RH Air Deflector, Black 63% Transm.

517304928

$32.81

800e

LH Air Deflector, Black 63% Transm.

517304929

$40.27

800f

Torx Screw K50 X 16

250000720

$1.60

800g

Washer M5

250200025

$0.70

800h

Rubber Washer 5 mm

250200024

$2.03

810

Grommet

517303756

$3.61

1000a

Black, RH Panel

517305714

$272.36

1000a

Black, RH Panel

517305714

$272.36

1000a

White, RH Panel | Package TNT

517305905

$197.73

1000a

PANEL_BODY RH B-359 - Call your local BRP dealership

517306418

$179.82

1000b

Deep Black, Panel Trim RH

517304802

$167.88

1000b

Black, RH Panel Trim

517305058

$222.36

1000b

Black, RH Panel Trim

517305058

$222.36

1000b

Deep Black, Panel Trim RH

517304802

$167.88

1000c

Push Nut

250100158

$2.00

1000d

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1000e

Rivet Plate

517305109

$4.52

1000f

Pin

517305734

$3.30

1000f

Pin

517305734

$3.30

1000f

Pin

517305734

$3.30

1000f

Pin

517305734

$3.30

1000g

Grille

517305715

$26.09

1000g

Grille

517305715

$26.09

1000g

Deep Black, RH Panel Vent Grid

517304935

$28.33

1000g

Deep Black, RH Panel Vent Grid

517304935

$28.33

1000h

Washer

517124300

$0.18

1000j

Bumper Stopper

517305731

$16.39

1000j

Bumper Stopper

517305731

$16.39

1010

RH Foam Central

517305793

$17.88

1020

RH Foam Rear

517305801

$17.88

1030

Heat Shield | Europe

517305451

$2.12

1040

RH Foam Upper

517305790

$23.85

1050

RH Foam Lower

517305792

$26.09

1060

Foam

517305795

$17.88

1070

Foam

517305791

$17.88

1090

Rubber Sheet

517305796

$17.13

1100

Foam

517305794

$17.88

1200a

Black, LH Panel

517305717

$197.73

1200a

White, LH Panel | Package TNT

517305914

$197.73

1200a

LH.PANEL - Call your local BRP dealership | Package Enduro

517306416

Unavailable

1200b

Black, LH Flashing Panel

517304805

$167.88

1200c

Push Nut

250100158

$2.00

1200d

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1200e

Rivet Plate

517305109

$4.52

1200f

Pin

517305734

$3.30

1200g

Washer

517124300

$0.18

1210

Foam

517305802

$12.31

1220

Foam

517305797

$17.88

1230

Foam

517305798

$17.88

1240

Foam

517305803

$13.54

1250

Foam

517305800

$17.88

1270

Foam

517305799

$11.06

1300

Panel Latch

517305279

$14.40

1310

Hexalob Screw M4 X 10

250000565

$2.00

1320

Weld Nut M4

250100156

$4.12

1400

RH Panel Latch

517304919

$13.79

1410

Pop Rivet 3/16”

293150108

$1.19

1600

LH Panel Latch

517303808

$9.61

1610

Pop Rivet 3/16”

293150108

$1.19

1700

RH Panel Clip Ass'y, Black | Includes 1700 to 1700a

517305724

$12.31

1700a

Ring

517305723

$3.21

1710

LH Panel Clip Ass'y, Black | Includes 1710 to 1710a

517305722

$12.31

1710a

Ring

517305723

$3.21

1800a

Deep Black, LH Arm

517305290

$23.10

1800b

Deep Black, RH Arm

517305293

$23.10

1800c

LH Deflector, Smoked 60%

517305291

$23.10

1800d

RH Deflector, Smoked 60%

517305294

$23.10

1800e

Deep Black, LH Cap, SKI-DOO

517305601

$33.55

1800f

Deep Black, RH Cap SKI-DOO

517305602

$33.55

1800e

Manta Green, LH Cap | MANTA GREEN Model

517306405

$35.04

1800f

Manta Green, RH Cap | MANTA GREEN Model

517306406

$35.04

1800g

Clamp

517305296

$4.51

1800h

Torx Screw Truss Head K50X20 T20

250000760

$2.00

1800j

Torx Screw M5 X 20

250000724

$1.60

2400

Headlamp

517306180

$226.09

2400a

Cap

219400070

$16.39

2400b

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

2400c

Holder Bracket

219800282

$5.33

2400d

Spring

219800281

$3.13

2400e

Harness

415130194

Unavailable

2400f

Connector Holder

710002033

$3.12

2410

Torx Screw M5 X 20

250000528

$2.00

2420

Jack Nut M5

250100035

$5.85

2430

Screw M4 X 16

250000725

$3.30

2600

Headlight Trim Cap

517305010

$34.30

2800

RH Air Deflec.Console, Black 63% Transm. | Package X

517304923

$32.06

2810

Grommet

517302841

$2.55

3000

LH Air Deflec.Console, Black 63% Transm. | Package X

517304924

$32.06

3010

Grommet

517302841

$2.55

3200a

Deep Black, Upper Storage Access Cover

517304912

$14.90

3200b

Cover Latch

517304917

$9.93

3210

Seal Joint

517305157

$2.21

3400

Deep Black, Trunk

517305095

$17.88

3600

Deep Black, Console Support

517304970

$11.10

3800

Deep Black, Support Console Cap

517305180

Unavailable

4000

Deep Black, Support Console Cap

517305148

$4.52
