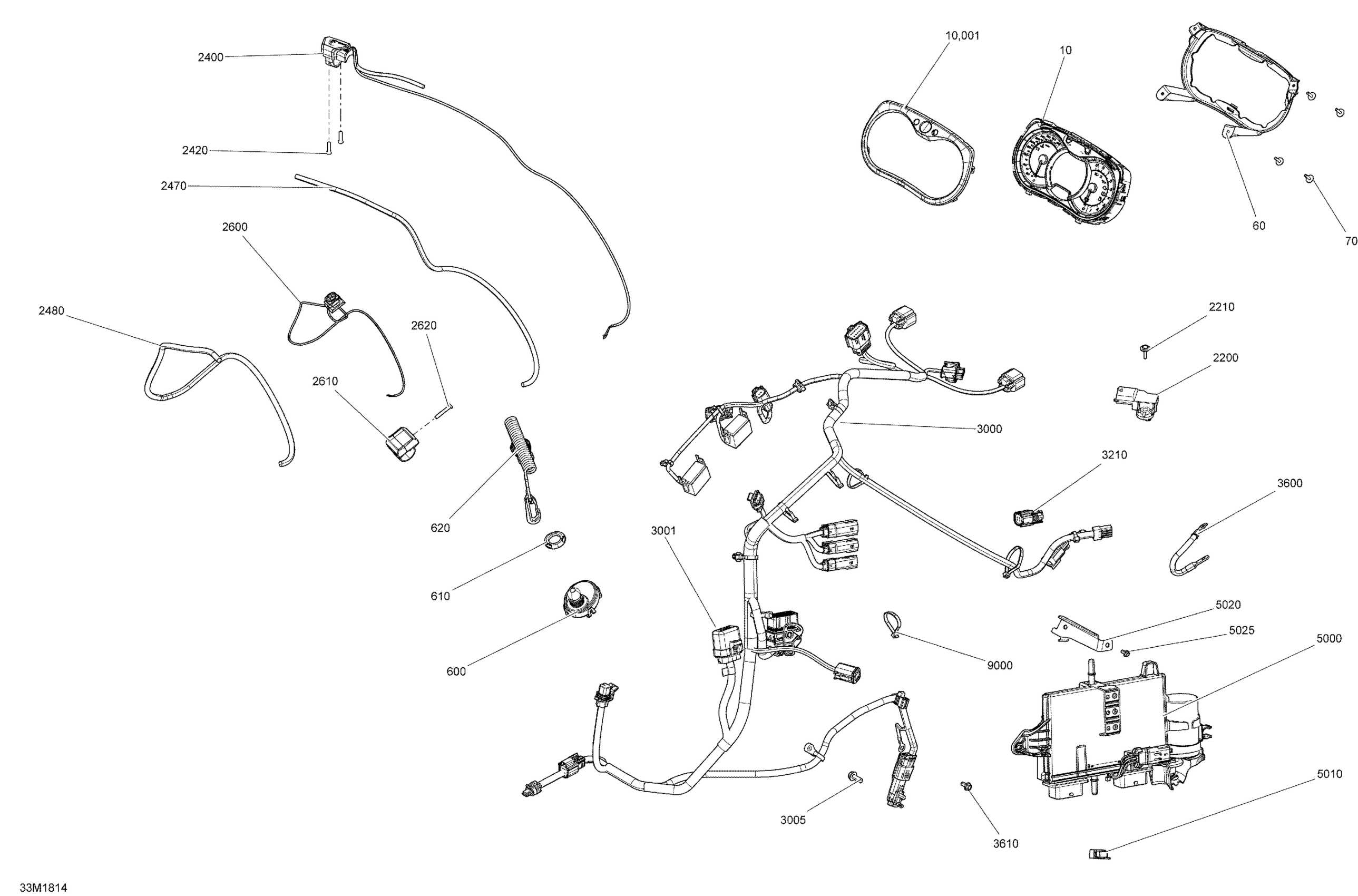

Ski-Doo MXZ X - 600R ETEC, 2018 Electrical Manual Start, MXZ X - 600R ETEC Diagram

Description

Price

Indicator | Except Package STD

515177860

$535.35

10.001

Lens | XTP

415129349

$23.05

Support

515177866

$17.66

Screw M4 X 16

250000725

$2.87

600

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

610

Safety Nut (DESS Switch)

278002963

$2.72

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$64.58

2200

Pressure And Temperature Sensor

707000995

$70.82

2210

Screw M4 X 16

250000725

$2.87

2400

LH Switch Housing

515178196

$266.89

2410

Housing Plate

515177147

$17.66

2420

Torx Screw

250000671

$0.83

2470

Braided Sleeve

415130141

$56.12

2480

Braided Sleeve

415130141

$56.12

2600

Emergency Stop Switch

515177931

$74.58

2610

Emergency Stop Switch Support

515177310

$8.60

2620

Torx Screw #8-18

250000263

$1.02

3000

WIRING HARNESS - Call your local BRP dealership

515178459

Unavailable

3001

Diagnostic Cap

515178435

$7.24

3005

Hex. Flange Screw M6 X 16

250000936

$1.43

3210

4 Circuits Female Housing

515178177

$11.89

3600

Ground Wire

515178248

$23.82

3610

Hex. Flange Screw M5 X 16

250000911

$0.70

5000

Igniton Module

512061093

$599.97

5000.001

Capacitor

515177272

$85.35

5010

Rubber Stopper

515178430

$2.09

5020

Module Support

515178159

$4.28

5025

Hex. Flange Screw M5 X 16

207651646

$1.74

9000

Tie Wrap 142 mm

293750002

$0.88

9000

Tie-Rap 180 mm

414115200

$0.09

9000

Tie Wrap 368 mm

293750008

$0.85

9000

Tie Wrap 94 mm | 4X4

293750001

$0.83
