Description

Price

10

FRAME 129 YELLOW - Call your local BRP dealership | North America Models

415130216

Unavailable

10a

FOOTREST REINFORCEMENT - Call your local BRP dealership

518328455

Unavailable

10b

FOOTREST REINFORCEMENT - Call your local BRP dealership

518328456

Unavailable

10c

RH Rear Suspension Support

518334387

$94.99

10d

LH Suspension Bracket

518329877

$19.99

10e

RH Reinforcement Footrest

518329048

$21.99

10f

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

10g

Member Fixation Plate

518329480

$12.99

10h

RH Roller

518328451

$194.99

10j

LH Roller

518328452

$194.99

10k

Threaded Insert M6 X 1.0

250100242

Unavailable

10m

Clinch Stud M6 X 20

250300027

$2.09

10n

Rear Cap

518328990

$22.49

10p

RH Footrest

518328460

$44.99

10q

LH Footrest

518333007

$40.99

10r

Rivet Avibulb 3/16

293150203

$2.09

10s

Stavex Rivet

293150144

$0.82

10t

Hemlock Rivet, 6.5 mm

293150096

$3.27

10u

Hemlock Rivet, 6.5 mm

293150119

$4.29

10v

Hemlock Rivet, 6.4 mm

293150174

$7.86

10w

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10y

Radiator Tunnel 129 Ass'y

518334487

$739.99

20

Black, Plug

293730052

$9.19

30

Washer

506151252

$3.17

70

Hex Screw M8 X 30

250000942

$1.15

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Riveted Module E | Includes 100 to 100j

518330163

$609.99

100a

RH Member Ass'y | Includes 100a to 100b

518330545

$229.99

100b

Leg Cushion

505073317

$8.66

100c

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100d

Leg Cushion

505073317

$8.66

100e

Bottom Plate

518329844

$37.99

100f

Rivet Avibulb 3/16

293150203

$2.09

100g

Insert M5 X 0.8

293450268

$2.09

100h

Hex. Flange Screw M6 X 20

207662046

$2.11

100j

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

110

Ornit Rivet 6,5 X 14.5

293150266

$2.40

120

Hemlock Rivet, 6.4 mm

293150174

$7.86

125

Hemlock Rivet 6.5 mm

293150120

$7.41

130

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Flange Screw M6 X 20

207662044

$2.00

150

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

170

Insert M5 X 0.8

293450268

$2.09

180

Hex. Flange Screw M6 X 16

207661644

$0.74

230

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$264.99

300a

Vibration Damper

512061516

$61.99

310

Hex. Flange Screw M8 X 30

250001048

$2.85

320

Hex. Flange Screw M8 X 35

207683544

$1.69

330

Hex. Flange Elastic Nut M8

233281414

$1.47

400

Chassis Suspension Module

518334459

$709.99

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

440

Ornit Rivet 6,5 X 14.5

293150266

$2.40

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$119.99

910

Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910a

518330063

$119.99

920

Pan Head Torx Screw M8 X 12

250000887

$1.90

1000

Stud M5 X 20

250300629

$2.09

1100

Upper Colomn Support

518329974

$22.49

1110

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

1120

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1125

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1130

Hex. Flange Screw M6 X 25

207662544

$0.64

1140

Hex. Flange Screw M6 X 20

207662044

$2.00

1300

Rear Bumper | Includes 1300 to 1300b

518328745

$111.99

1300a

Cap

520001612

$10.99

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

1800

Rear Protector

518329979

$9.23

1820

Support

520001545

$2.00

1830

Torx Truss Screw K40 X 12

250000577

$2.11

1840

Pop Rivet 3/16”

293150108

$1.19

3000

Black Toe-hold

518330358

$24.99

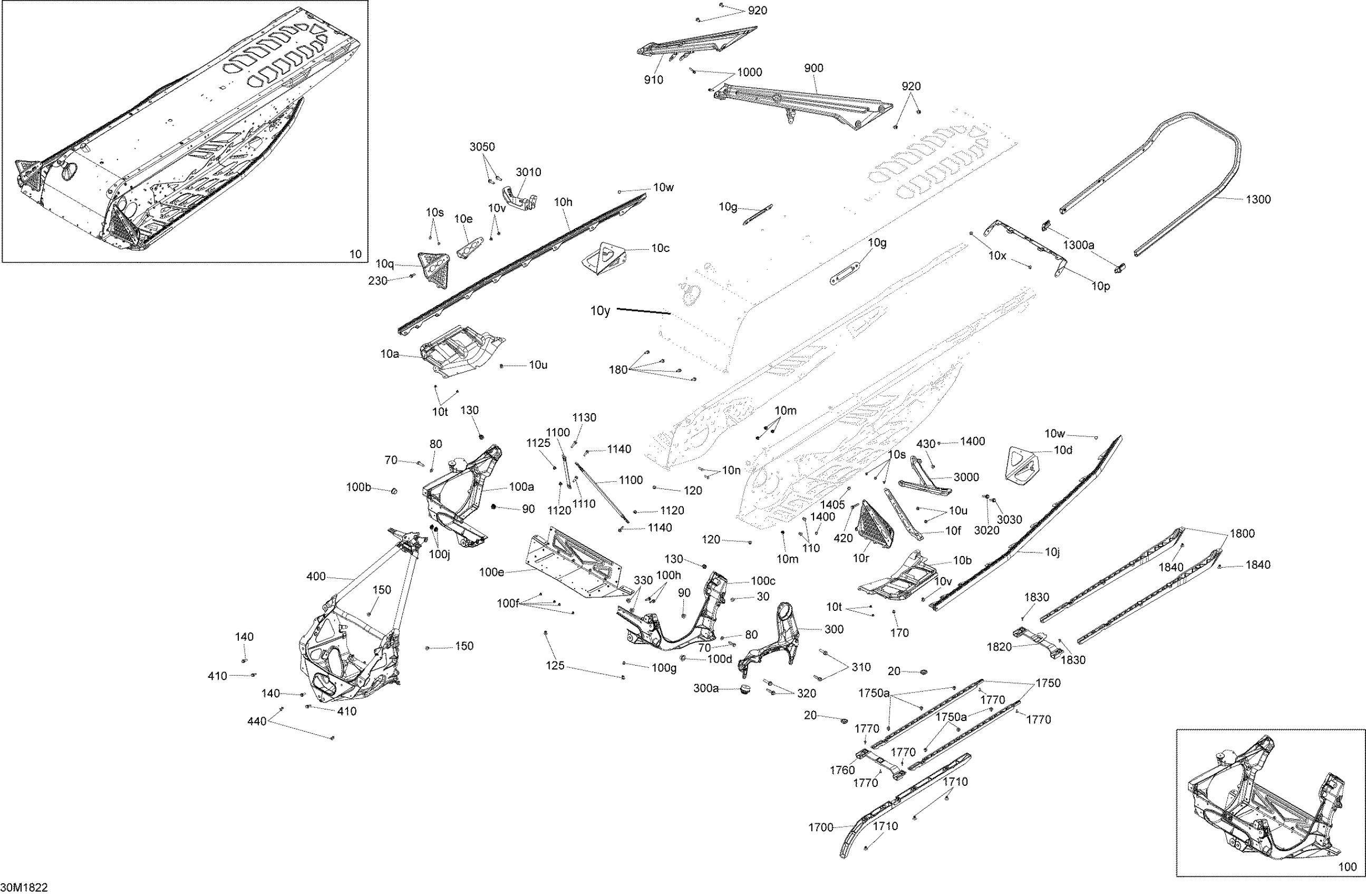

Ski-Doo 7- MXZ X - 600R ETEC, 2018 09- Frame MXZ - 600R ETEC - Package X Diagram
