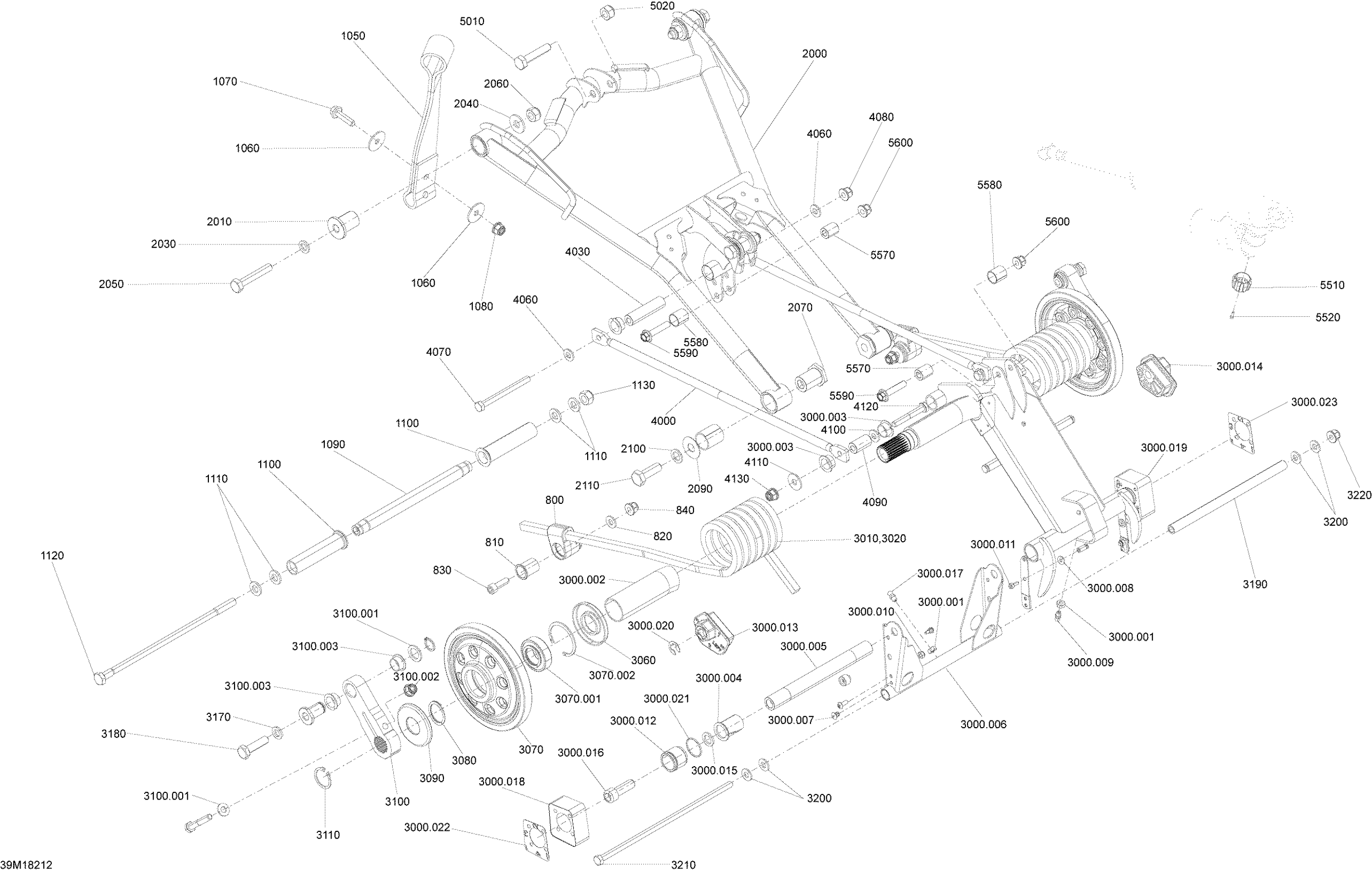

Ski-Doo MXZ X - 600R ETEC, 2018 Rear Suspension MXZ X - 600R ETEC - Superior Diagram

#

Description
Price

800

Spring Support Kit

861805547

$8.14

810

Spring Support Kit

861805547

$8.14

830

Socket Screw M8 X 25

205082554

$1.74

840

Elastic Flange Nut M8

233281466

$0.83

1050

Stopper Strap

503192759

$25.35

1060

Flat Washer 8 mm

250200128

$1.74

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

1080

Elastic Flange Nut M8

233281466

$0.83

1090

Pivot Axle

503193435

$38.43

1100

Center Bushing

503191259

$8.97

1110

Flat Washer

250200143

$2.63

1120

Bolt M10 X 251MM

503193227

$16.12

1130

Flange Elastic Nut M10

233201466

$2.63

2000

Front Arm Ass'y | Included 2000 to 2000g

503194529

$447.66

2010

Axle

503190698

$17.66

2030

Washer

503192496

$0.75

2040

Washer

503191926

$1.57

2050

Hex. Cap Screw M10 X 60

207006056

$6.18

2060

Elastic Locking Nut M10

233601466

$1.74

2070

Lower Axle

503191966

$15.35

2090

Washer

503190656

$2.91

2100

Washer

503192491

$4.38

2110

Hex. Cap Screw M12 X 35

250000537

$2.63

3000

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$267.66

3000.001

Hexagonal Nut M6

232061404

$0.32

3000.002

Bushing

503192767

$15.26

3000.003

Swivel Bushing

503191555

$5.71

3000.004

Cushion

503191640

$5.71

3000.005

Lower Shaft

503192981

$17.66

3000.006

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$118.43

3000.007

Pop Rivet 3/16"

390402200

$0.26

3000.008

Flat Washer

517225900

$0.17

3000.009

Grease Fitting

408200700

$2.80

3000.01

Elastic Stop Nut M5

232551414

$0.72

3000.011

Socket Head Screw M4X 10

205041060

$1.74

3000.012

Guide Block

503192749

$5.85

3000.013

LH Cam Block

503192918

$12.65

3000.014

RH Cam Block

503192919

$12.65

3000.015

Washer

503192491

$4.38

3000.016

Socket Head Screw M12 X 35

205523554

$4.28

3000.017

Grease Fitting

408200700

$2.80

3000.018

LH Cam Adjuster

503191565

$13.95

3000.019

RH Cam Adjuster

503191566

$13.95

3000.02

E-Circlip

293370013

$0.62

3000.021

O-Ring

503192921

$2.25

3000.022

LH Block Sticker Decal

516004900

$16.12

3000.023

RH Block Sticker Decal

516004901

$16.12

3010

Black, LH Spring Square

503193158

$77.66

3020

Black, RH Spring Square

503193159

$77.66

3060

Labyrinth Seal

503190434

$4.29

3070

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$46.12

3070.001

Ball Bearing

503193548

$16.89

3070.002

Retaining Ring

415129780

$13.88

3080

Axle Spring

503189146

$7.54

3090

Labyrinth Ring

503192592

$4.66

3100

Link Ass'y | Includes 3100 to 3100f

503195985

$77.66

3100.001

Washer

503192494

$3.11

3100.002

Elastic Flange Nut M8

233281466

$0.83

3100.003

Swivel Bushing

503191555

$5.71

3110

Retaining Ring

293370080

$2.12

3170

Washer

503192496

$0.75

3180

Cap Screw Hex. M10 X 40

207204056

$6.18

3190

Pivot Arm Axle

503189156

$20.74

3200

Washer

503192494

$3.11

3210

Bolt M8 X 248mm

503192440

$29.97

3220

Elastic Flange Nut M8

233281466

$0.83

4000

Rod Link

503193903

$27.66

4030

Axle Bar (Long)

503190643

$15.35

4060

Washer

503192494

$3.11

4070

Screw M8 X 90

503193372

$4.28

4080

Elastic Flange Nut M8

233281466

$0.83

4090

Axle Bar

503192555

$11.40

4100

Washer

503192494

$3.11

4110

Flat Washer 8 mm

234082410

$1.11

4120

Hex. Screw M8 X 55

207085586

$6.11

4130

Elastic Flange Nut M8

233281466

$0.83

5010

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

5020

Elastic Locking Nut M10

233601466

$1.74

5570

Axle Shock Absorber

503196509

$11.98

5580

Leg Cushion

505072663

$7.40

5590

Hex. Flange Screw M8 X 40

207684044

$1.25

5600

Elastic Flange Nut M8

233281466

$0.83
