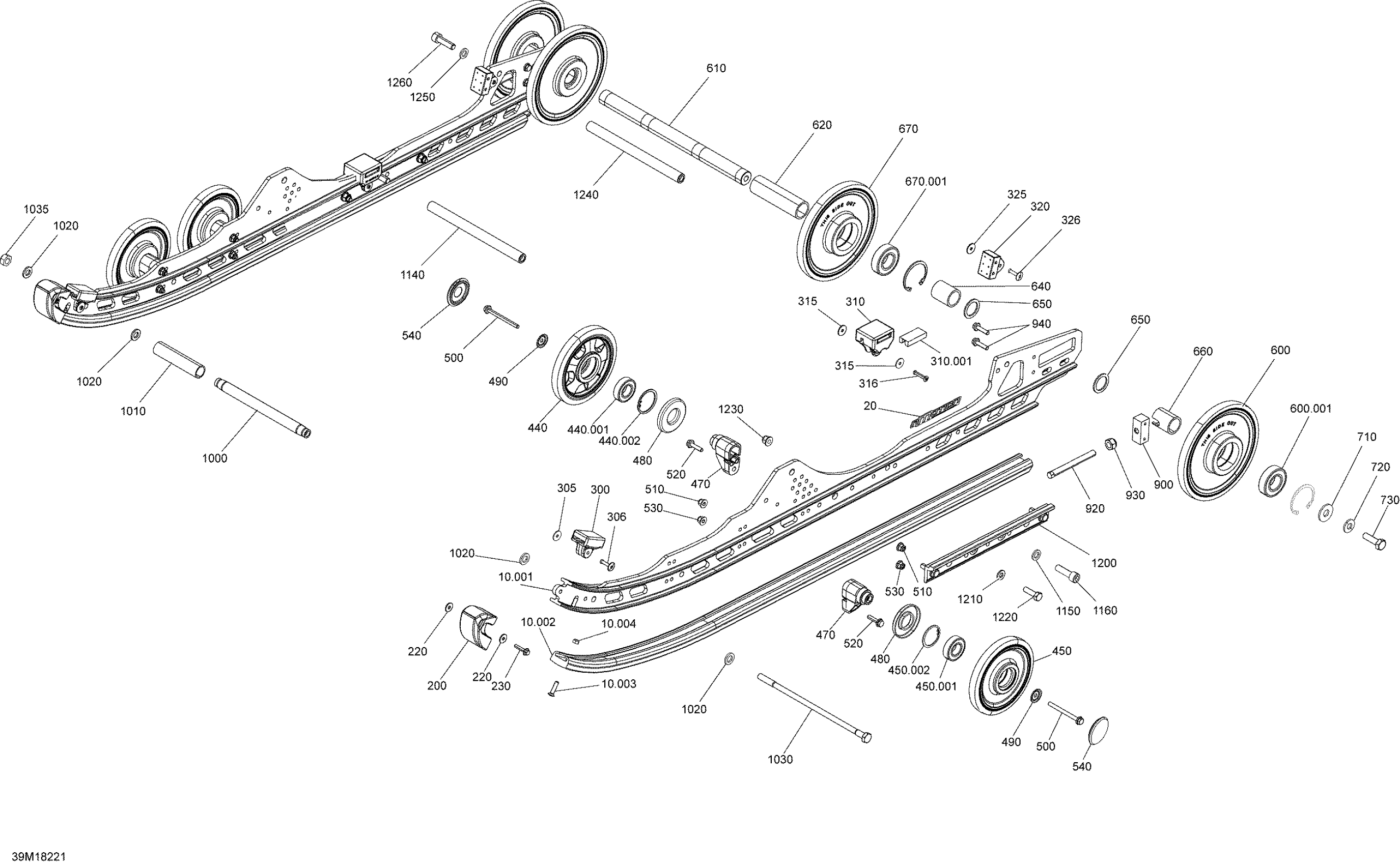

Ski-Doo MXZ X - 600R ETEC, 2018 Rear Suspension MXZ X - 600R ETEC - Iron Dog - Inferior Diagram

#

Description
Price

10.001

Yellow, Runner 128" | Model Sunburst Yellow

503194156

$286.12

10.002

Slider 128"

503193962

$27.66

10.003

Phillips Screw M6 X 25

208562531

$1.74

10.004

Elastic Stop Nut M6

232561414

$1.55

20

Runner Decal

516007816

$9.11

200

Slide Protector

503192530

$16.89

220

Washer

250200140

$0.83

230

Hex. Flange Screw M5 X 25

207652544

$0.42

300

Rubber Stopper

503190576

$10.23

305

Washer

503191273

$1.06

306

Pop Rivet 3/16

293150224

$0.98

310

Rubber Stopper Ass'y | Includes 310 to 310b

503193717

$17.66

310.001

Reinforcement Stopper

572084800

$5.25

315

Washer

503191273

$1.06

316

Pop Rivet 3/16"

293150013

$1.11

320

Rubber Stopper

503192750

$12.65

325

Washer

503191273

$1.06

326

Pop Rivet 3/16

293150224

$0.98

440

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$36.12

440.001

Ball Bearing | Package-STD

503190396

$7.12

440.002

Retaining Ring

415129371

$8.92

450

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$36.12

450.001

Ball Bearing | Package-STD

503190396

$7.12

450.002

Retaining Ring

415129371

$8.92

470

Casted Support

503193894

$12.75

480

Labyrinth Seal

503190434

$4.29

490

Wheel Cup M6

503191820

$4.66

500

Hex. Flange Screw M6 X 70

250000944

$3.61

510

Hex. Flange Elastic Nut M6

233261466

$1.66

520

Hex. Flange Screw M6 X 25

250000945

$3.61

530

Hex. Flange Elastic Nut M6

233261466

$1.66

540

Black, Wheel Cap

503192771

$2.28

600

Wheel 180 | Includes 600 to 600a

503191491

$49.97

600.001

Ball Bearing

293350115

$11.15

610

Rear Axle

503167900

$129.20

620

Center Spacer

503156000

$8.92

640

Inner Spacer

503182900

$10.18

650

Washer

503180400

$3.37

660

Outer Spacer

503189809

$15.35

670

Wheel 180 | Includes 600 to 600a

503191491

$49.97

670.001

Ball Bearing

293350115

$11.15

710

Washer

503183300

$5.68

720

Conical Spring Washer 10 mm

234201474

$1.39

730

Hex Screw With Nilon Patch, M10 X 35

250000817

$3.61

900

Tensioner

503193808

$38.43

920

Hex Screw M10 x 100

230100054

$5.29

930

Elastic Locking Nut M10

233601466

$1.74

940

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

1000

Pivot Axle

503193435

$38.43

1010

Spacer

503189265

$4.75

1020

Flat Washer

250200143

$2.63

1030

Bolt M10 X 251MM

503193227

$16.12

1035

Flange Elastic Nut M10

233201466

$2.63

1140

Axle Strap

503191260

$29.20

1150

Washer

503192496

$0.75

1160

Socket Head Screw M10 X 35

205503554

$6.18

1200

Black Reinforcement Runner

503193726

$54.58

1210

Washer

503192494

$3.11

1220

Hex. Cap Screw M8 X 30

207183054

$3.61

1230

Elastic Flange Nut M8

233281466

$0.83

1240

Axle Strap

503191260

$29.20

1250

Washer

503192496

$0.75

1260

Socket Head Screw M10 X 35

205503554

$6.18
