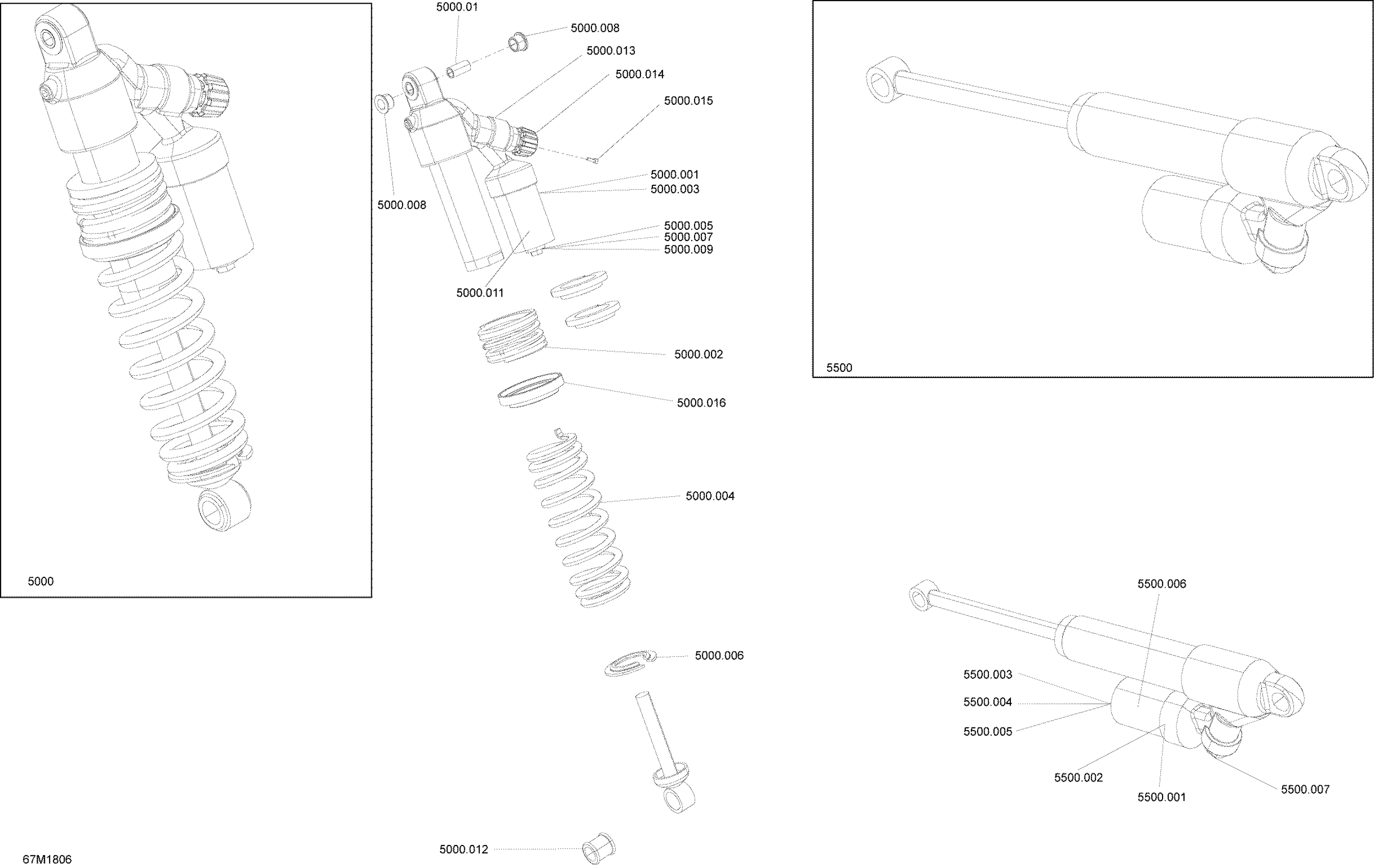

Ski-Doo 7- MXZ X - 600R ETEC, 2018 08- Rear Shocks MXZ - 600R ETEC - Iron Dog - Package X Diagram

Description

Price

5000

Center Shock | Includes 5000 to 5000j

503194071

$812.99

5000.001

O-Ring

415093807

$35.99

5000.002

Black, Spring (52mm) Short

503193479

$90.99

5000.003

Piston Ring | Not Shown

415093806

$16.86

5000.004

Black, Spring (162mm) Long

503193065

$72.99

5000.005

Air Valve

505070398

$20.99

5000.006

Spring Stopper

503194270

$19.99

5000.007

Screw | Not Shown

505070399

$4.12

5000.008

Urethane Bushing

503189117

$8.19

5000.009

O-Ring

505070400

$4.54

5000.01

Bushing | Includes 240d to 240d1

503189282

$4.34

5000.011

O-Ring

415093804

$4.54

5000.012

Bushing

503189271

$13.99

5000.013

Base Valve

415130165

$78.99

5000.014

Shock Adjuster Knob

503193033

$10.99

5000.015

Allen Screw M3 X 0.5 X 10

250000644

$2.11

5000.016

Spring Spacer

503192743

$16.49

5500

Rear Shock | Includes 5500 to 5500j

503193904

$877.49

5500.001

O-Ring

415093807

$35.99

5500.002

Piston Ring | Not Shown

415093806

$16.86

5500.003

Air Valve

505070398

$20.99

5500.004

Screw | Not Shown

505070399

$4.12

5500.005

O-Ring

505070400

$4.54

5500.006

O-Ring

415093804

$4.54

5500.007

Base Valve

415130165

$78.99
