Description

Price

10a

Fixed Flange Ass'y

417224332

$209.99

10d

Sheave Drive Pulley Sliding Ass'y | Includes 10ab to 10abg

417224610

$359.99

10g

Bushing

293250389

$21.99

10h

Circlip

293370137

$3.28

10j

Back Torque Roller

417224153

$16.99

10k

Pulley Roller Ext

417224916

$31.99

10m

Pin

417224510

$9.95

10n

Spring Pin 2.6MM X 20.5MM

250400101

$1.05

10p

Spider Drive Pulley | Includes 10a3 to 10a3h

417225067

$209.99

10q

Spring Guide

417224257

$10.49

10r

Roller Pulley Ass'y

417224947

$35.99

10s

Axle - 10mm

417224204

$10.49

10t

Thrust Washer

417224868

$2.32

10u

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10v

Clutch Spring

417224164

$28.49

10w

Seat Spring

417224003

$10.38

10x

Circlip

293370116

$3.28

10y

Ramp 971

417224266

$31.99

10z

Molded Cam

417224113

$8.89

10aa

RH Lever

417224086

$9.10

10ab

LH Lever

417224114

$5.61

10ac

Pivot 26mm

417224220

$5.79

10ad

Pin Ramp

417224694

$10.49

10ae

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10af

VIbration Damper

417224682

$149.99

10ag

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

20

Conical Spring Washer M14

250200144

$4.44

30

Pulley Drive Bolt M14 X 144

417300522

$32.99

40

Warning Decal

516007667

Unavailable

100a

Kit Fixed Flange Assembly | Includes 100 to 100d This part replaces 417127400.

861805529

$518.99

100aa

Washer

417127155

$8.26

100ab

Ball Bearing

504152574

$35.99

100b

Pulley Roller

417127016

$24.49

100c

Pivot Stud

417127294

$14.49

100d

Lock Washer 8 mm

250200009

$2.11

100f

Spring Pin

250400070

$2.00

100g

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

100h

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100k

Circlip

293370049

$4.99

100m

Cam Ass'y | Includes 100m to 100q

417127371

$159.49

100n

Mold Cam

417126963

Unavailable

100p

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100r

Circlip

293370049

$4.99

100s

Green, Spring

417127137

$41.49

100t

Swivel Abutment

417127116

$9.39

100u

Calibration Ass'y

415129604

$21.49

100x

Socket Screw M5 X 25

250000981

$1.68

100y

Flat Washer M5

234051410

$0.53

100z

Elastic Stop Nut M5

232551414

$0.87

200

Drive Belt

417300551

$179.99

300

Belt Guard

417300479

$77.99

330

Bracket

417300494

$5.49

340

Avex Rivet

390909200

$0.30

360a

CVT Air Duct

417300533

$28.99

360b

Hair Pin

414575600

$1.89

370

Pop Rivet 3/16"

293150103

$0.55

400

Torx Truss Screw M6 X 12

250000767

$2.00

500

Belt Guard Bracket

417300482

$14.49

505

Insert M5 X 0.8

293450268

$2.09

510

Torx Screw M5 X 14

250000742

$1.47

520

Hair Pin

114045200

$11.11

990

Weight

417224363

$4.44

991

Pivot 33mm

417224221

$5.79

992

Pivot 38mm

417224222

$5.79

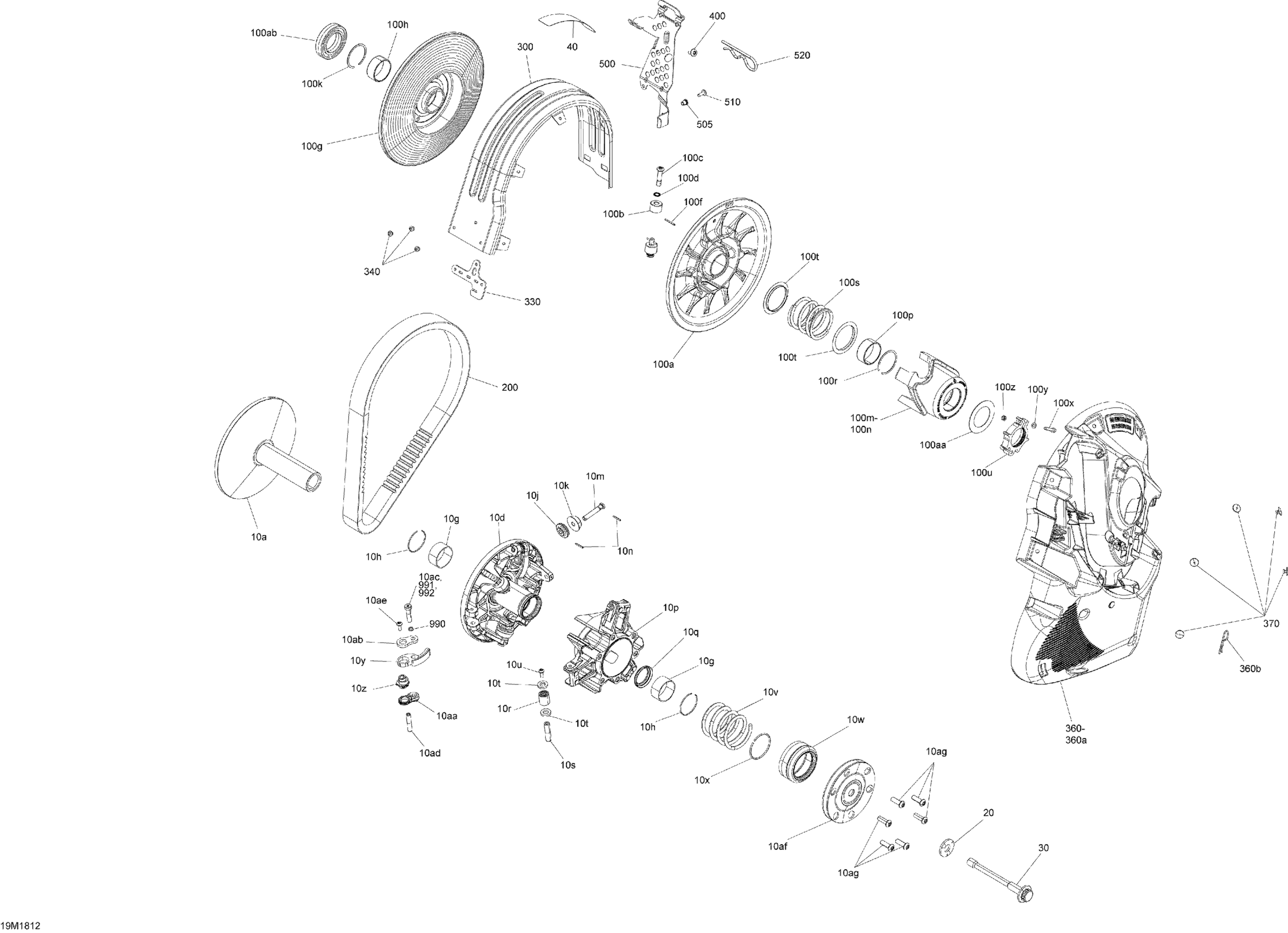

Ski-Doo 7- MXZ X - 600R ETEC, 2018 05- Pulley MXZ X - 600R ETEC Diagram

Fixed Flange Ass'y

Sheave Drive Pulley Sliding Ass'y | Includes 10ab to 10abg

Bushing

Circlip

Back Torque Roller

Pulley Roller Ext

Pin

Spring Pin 2.6MM X 20.5MM

Spider Drive Pulley | Includes 10a3 to 10a3h

Spring Guide

Roller Pulley Ass'y

Axle - 10mm

Thrust Washer

Torx-Truss M/S M5 X 14 S.Grip

Clutch Spring

Seat Spring

Circlip

Ramp 971

Molded Cam

RH Lever

LH Lever

Pivot 26mm

Pin Ramp

Torx-Truss M/S M5 X 14 S.Grip

VIbration Damper

Button Head Torx Screw M8 X 25 S.Gr

Conical Spring Washer M14

Pulley Drive Bolt M14 X 144

Warning Decal

Kit Fixed Flange Assembly | Includes 100 to 100d This part replaces 417127400.

Washer

Ball Bearing

Pulley Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin

Sliding Flange Ass'y | Includes 100b to 100b3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Cam Ass'y | Includes 100m to 100q

Mold Cam

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Green, Spring

Swivel Abutment

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Drive Belt

Belt Guard

Bracket

Avex Rivet

CVT Air Duct

Hair Pin

Pop Rivet 3/16"

Torx Truss Screw M6 X 12

Belt Guard Bracket

Insert M5 X 0.8

Torx Screw M5 X 14

Hair Pin

Weight

Pivot 33mm

Pivot 38mm
